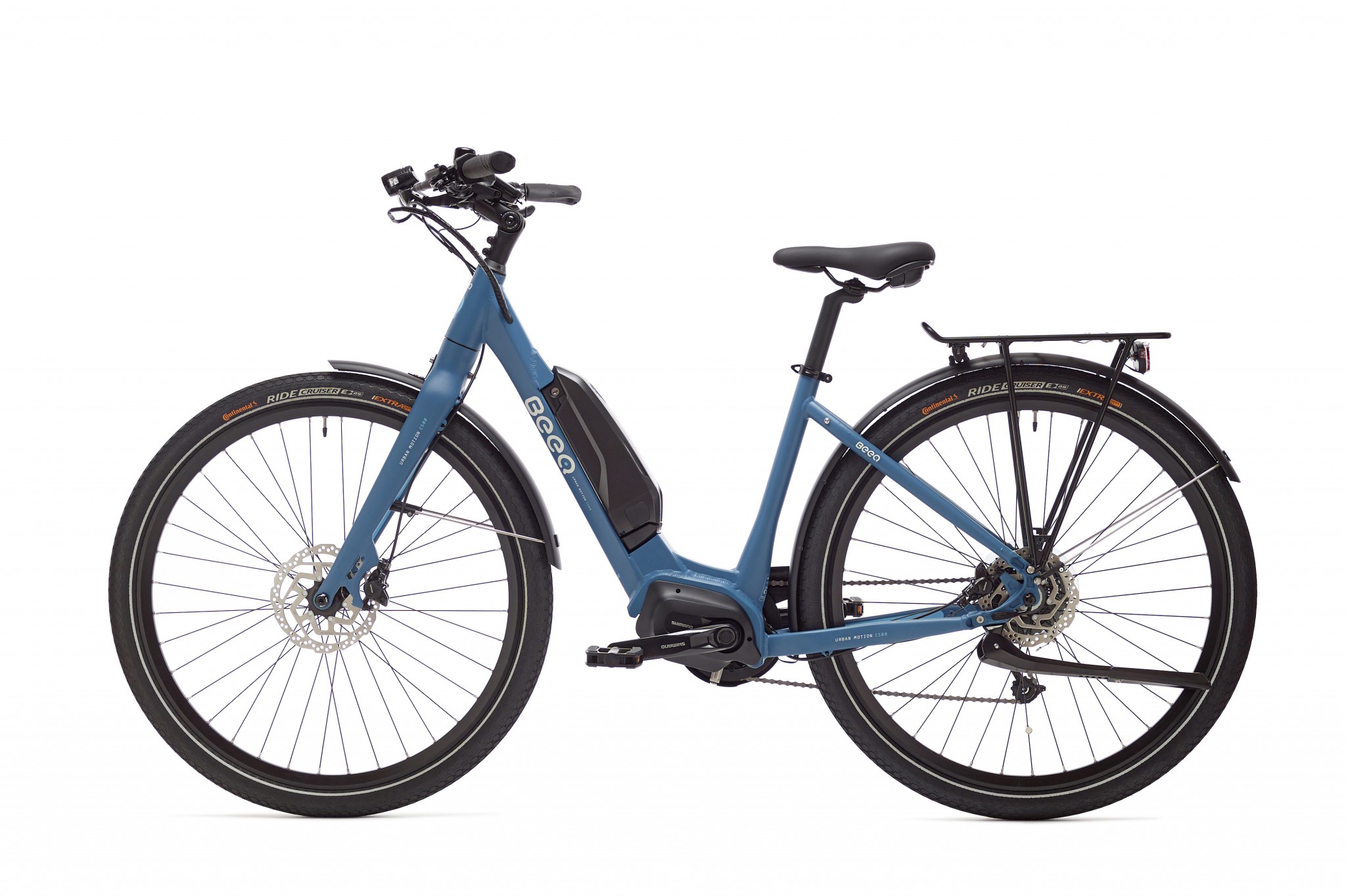

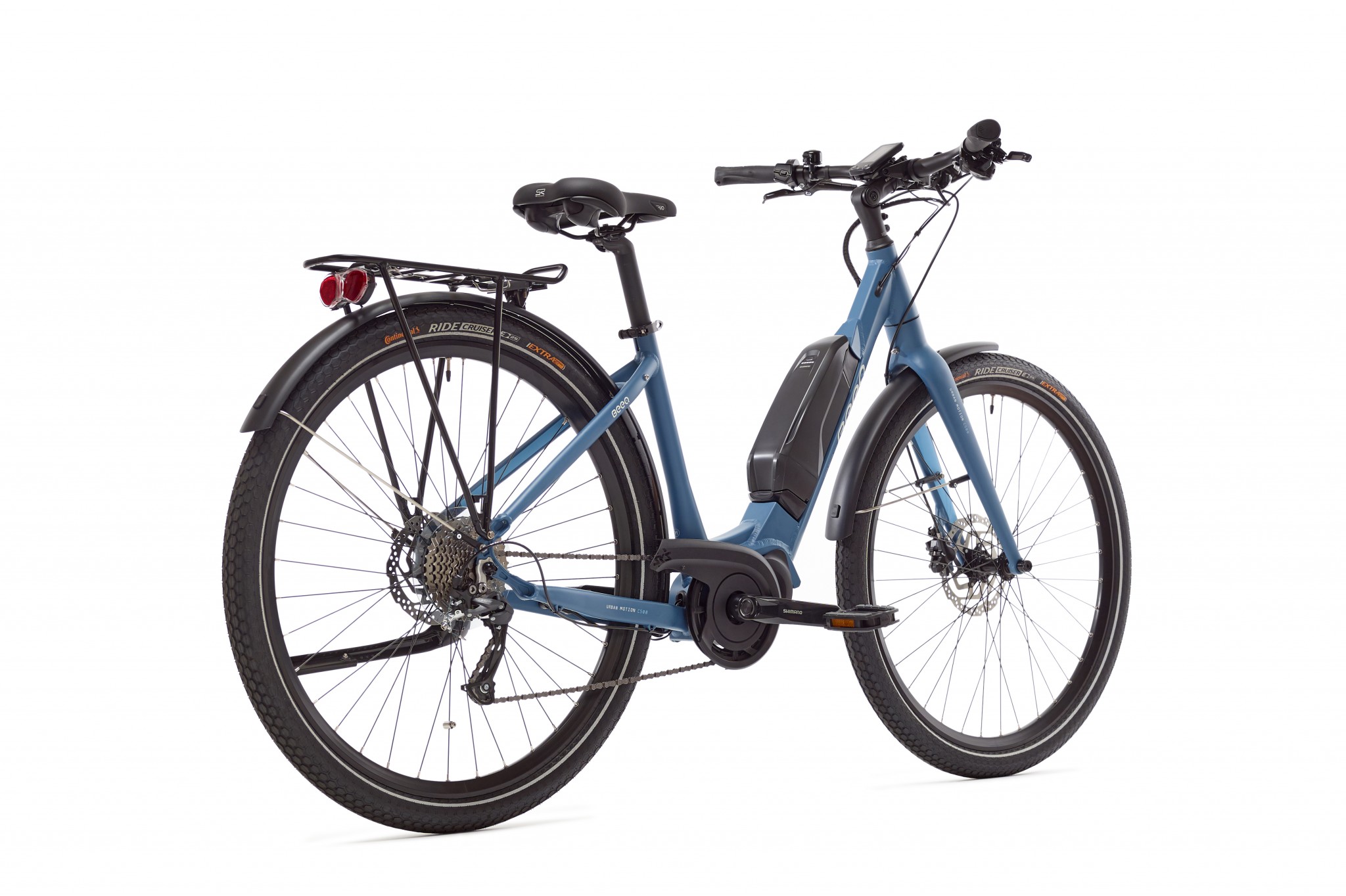

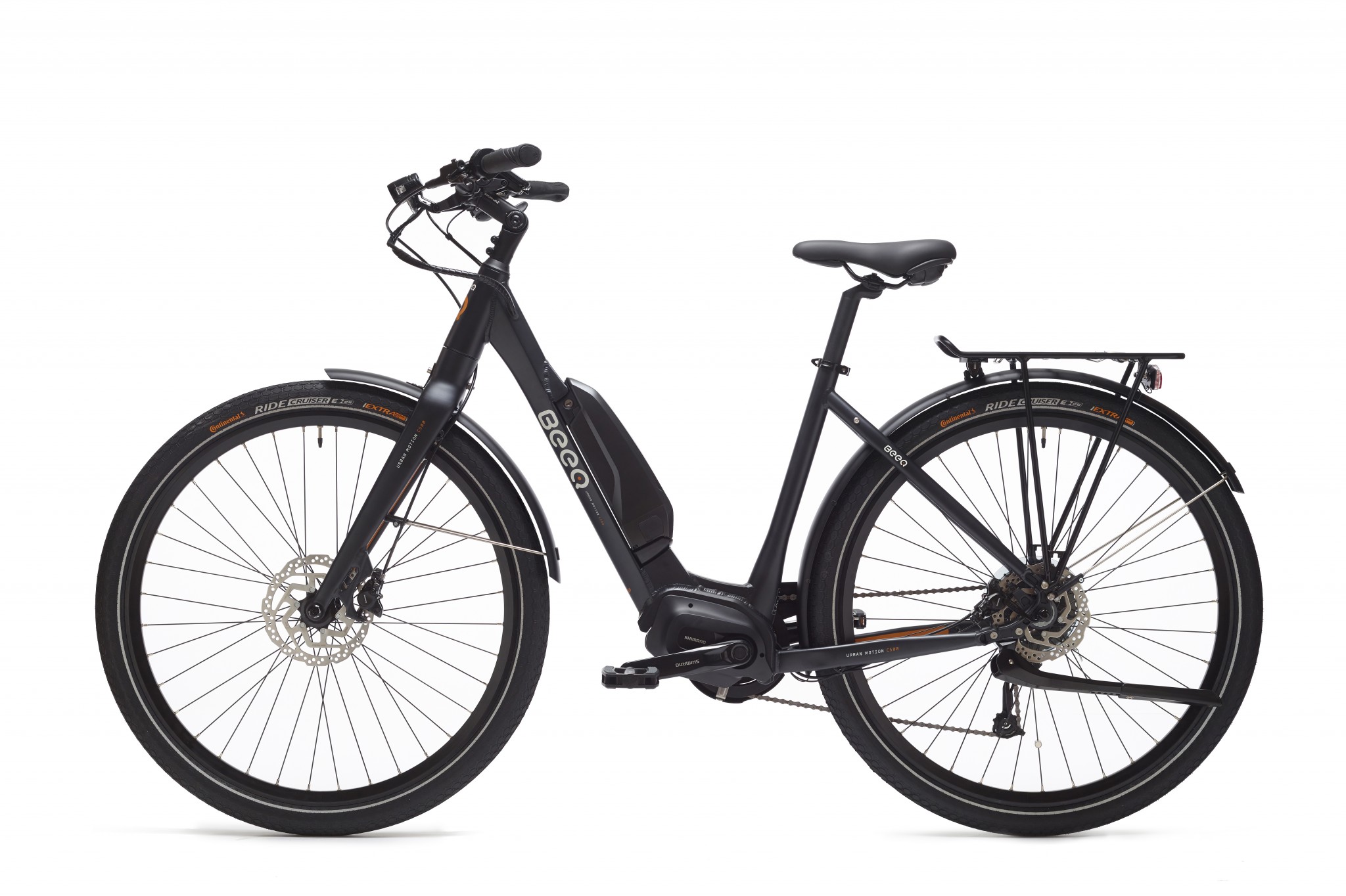

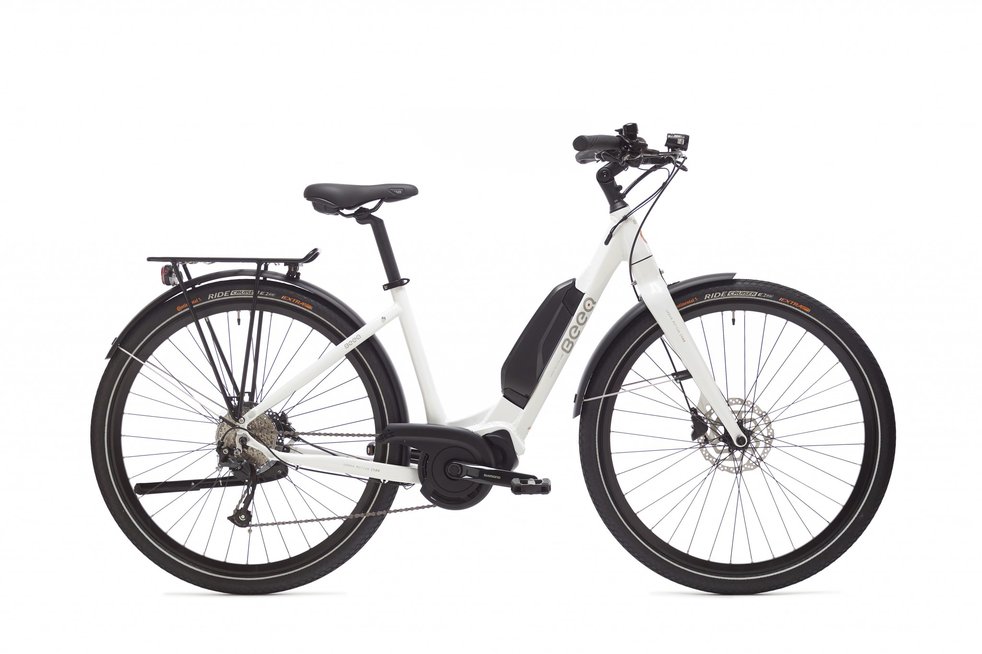

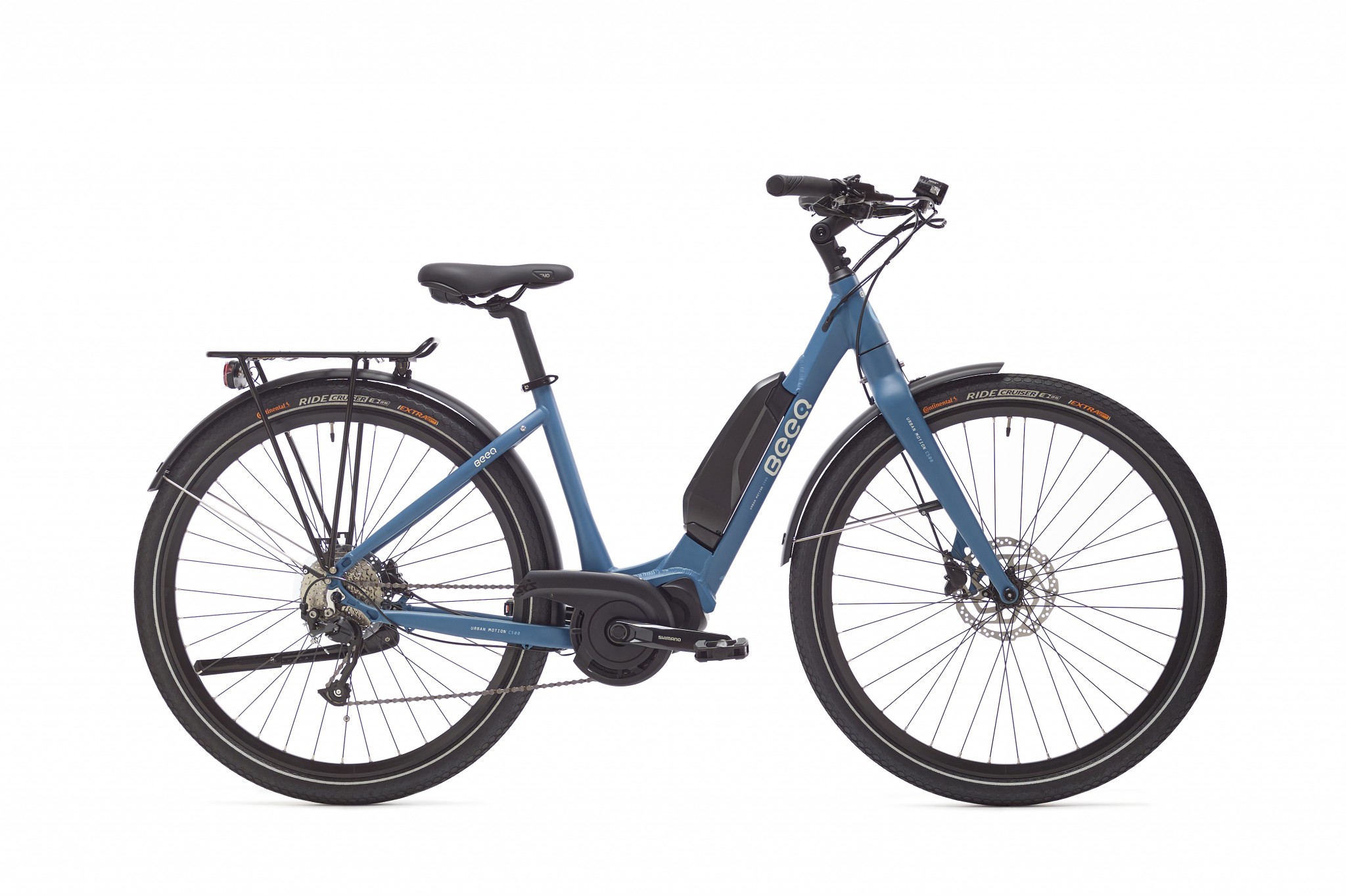

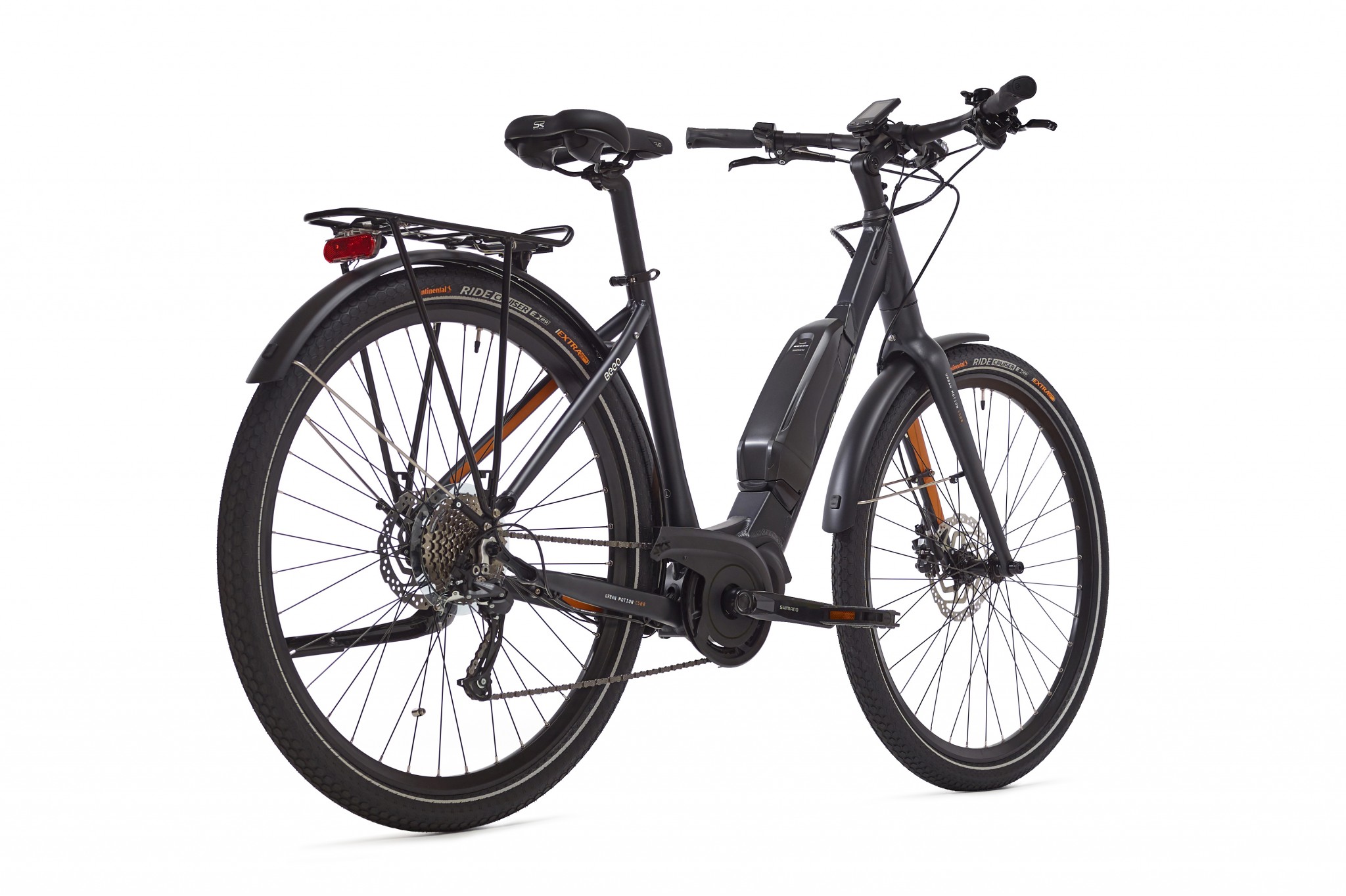

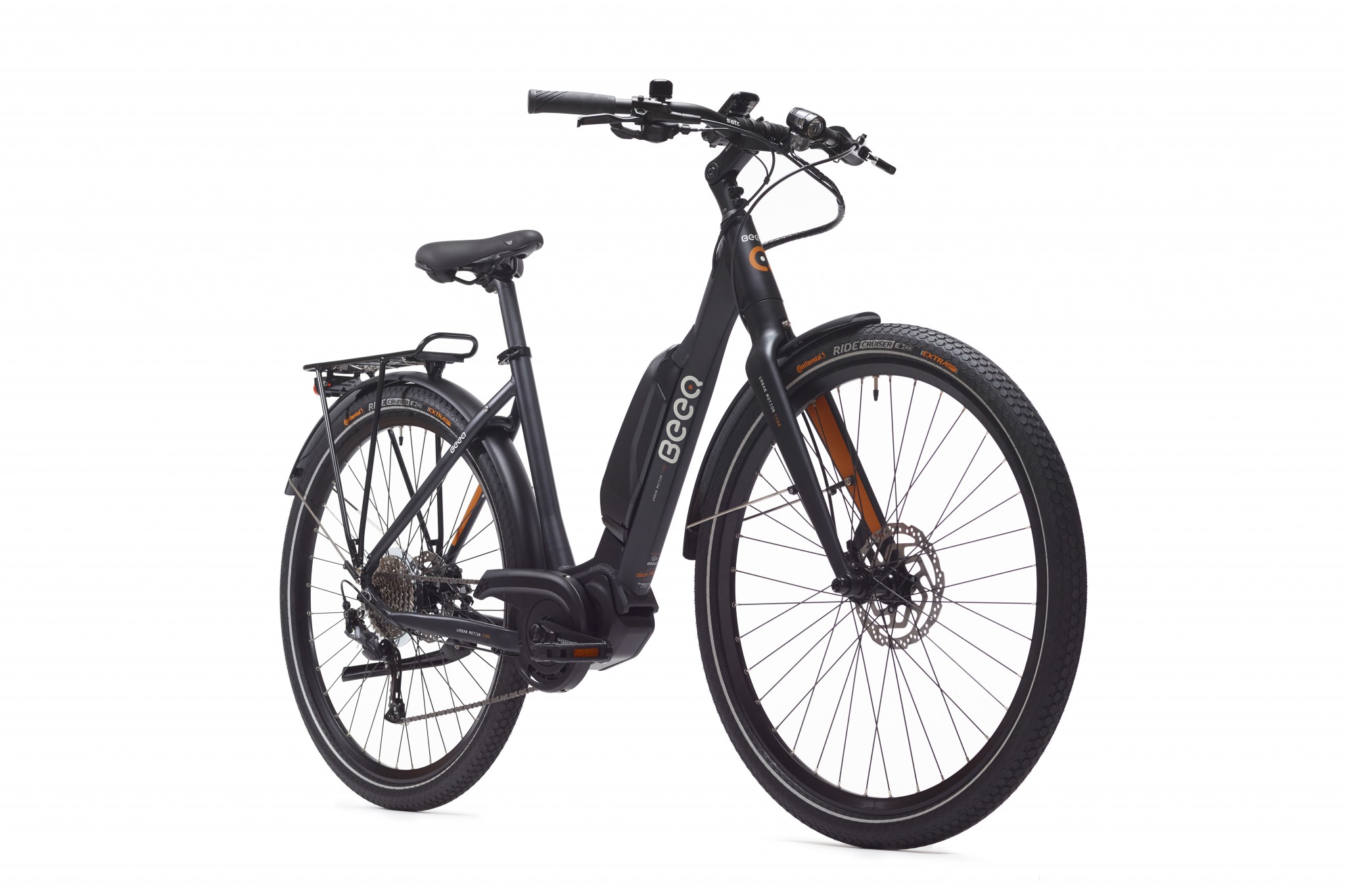

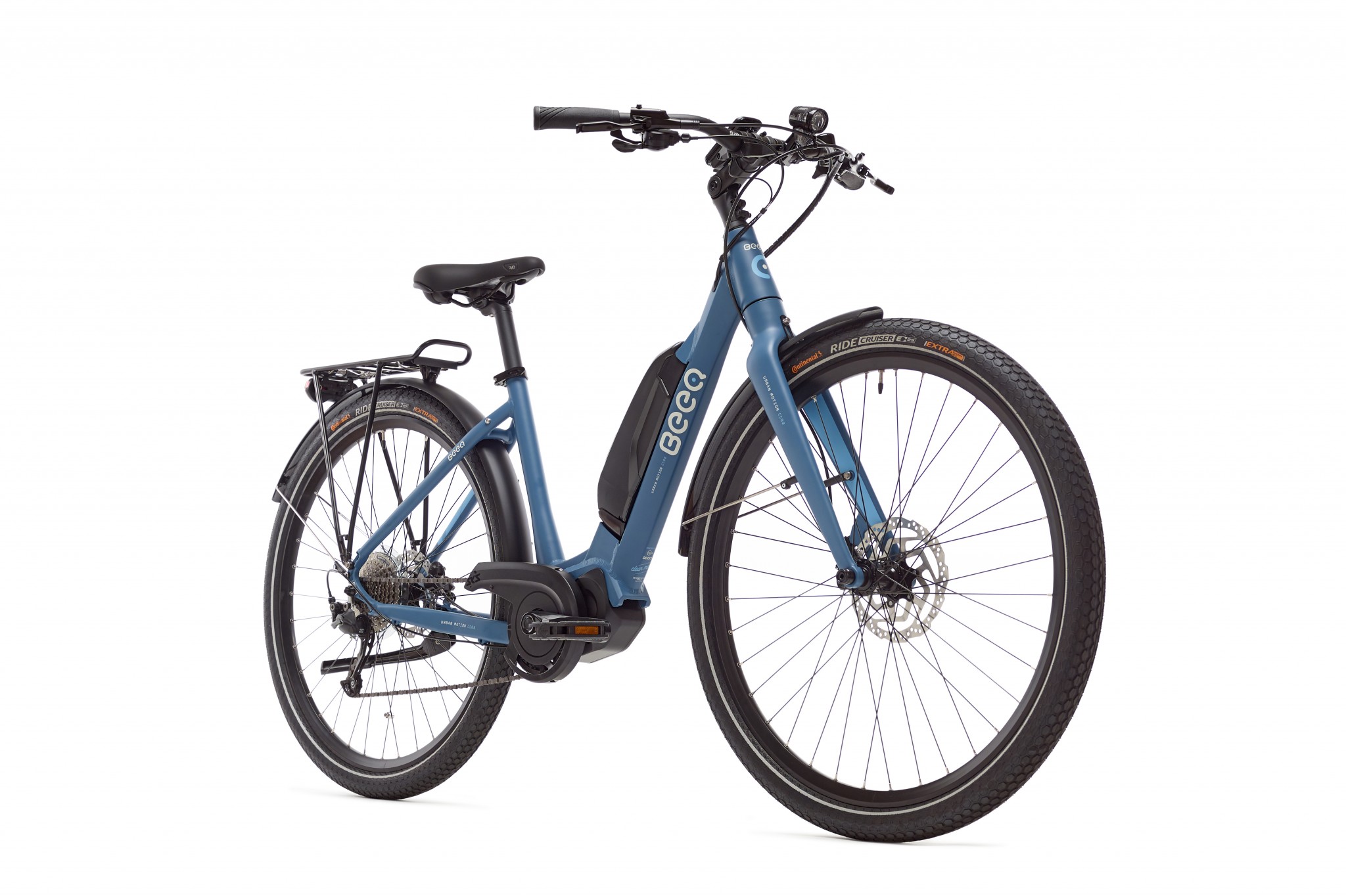

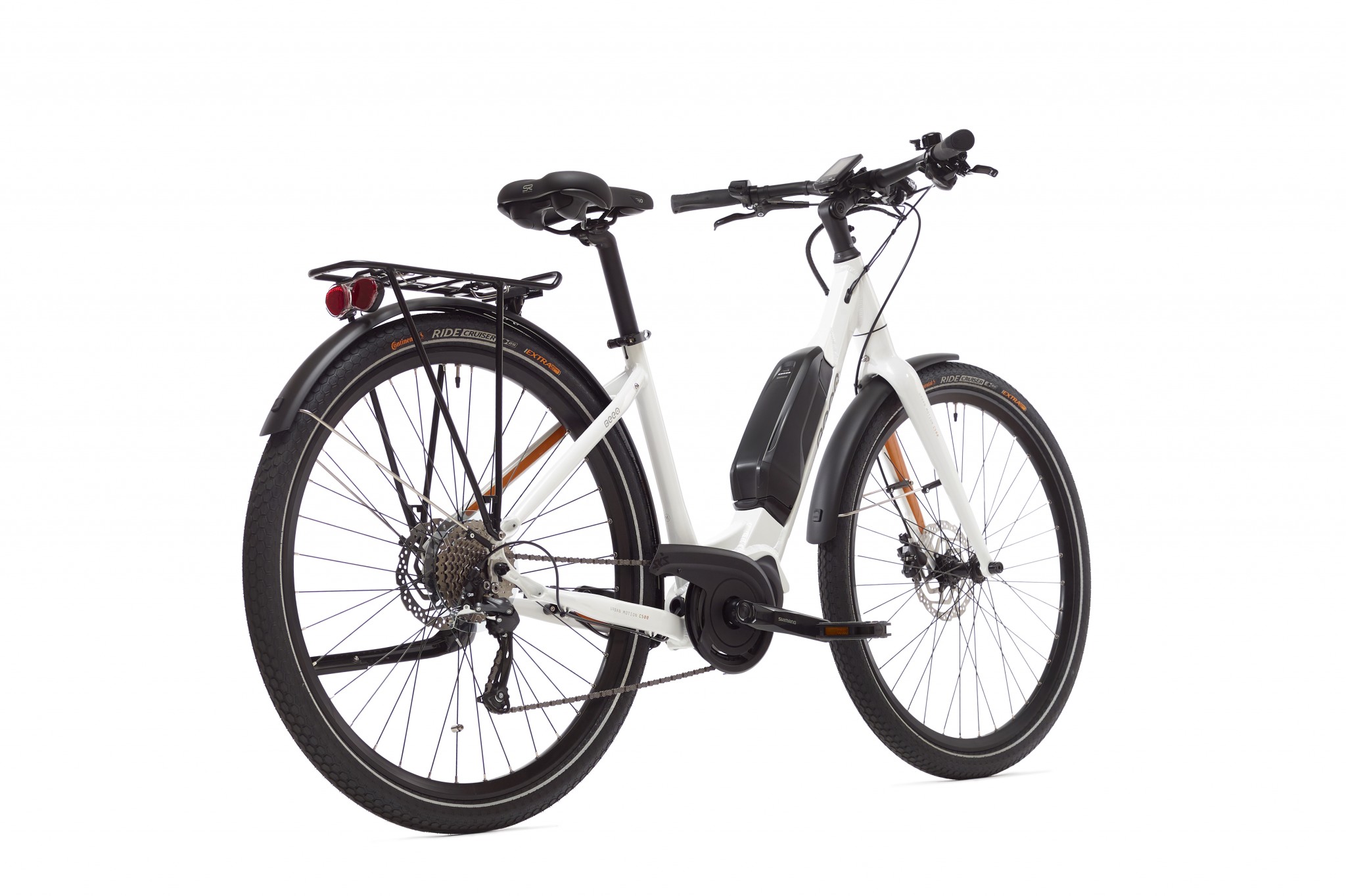

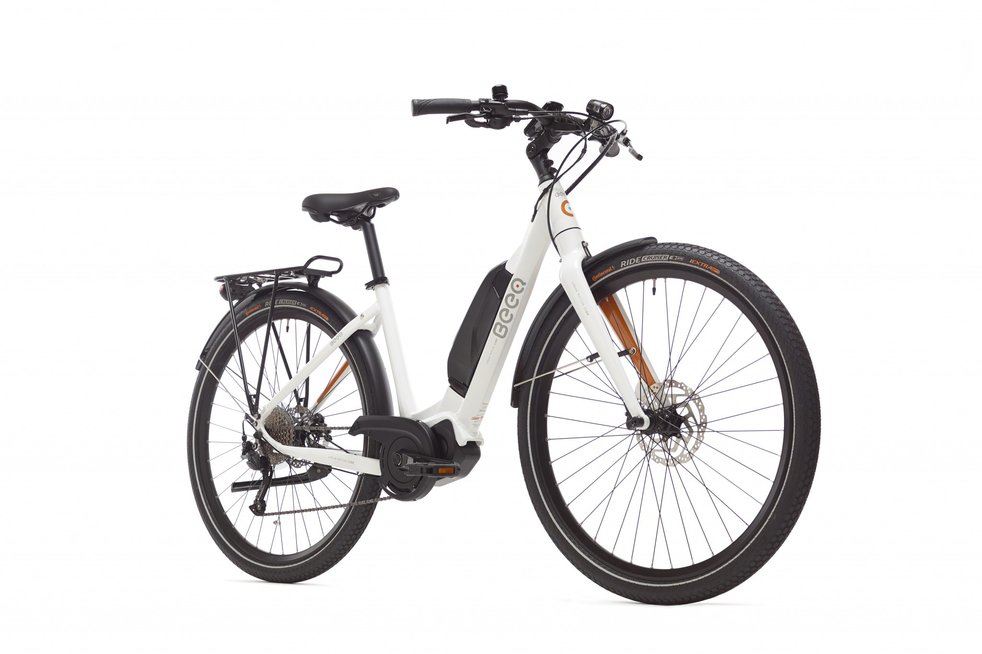

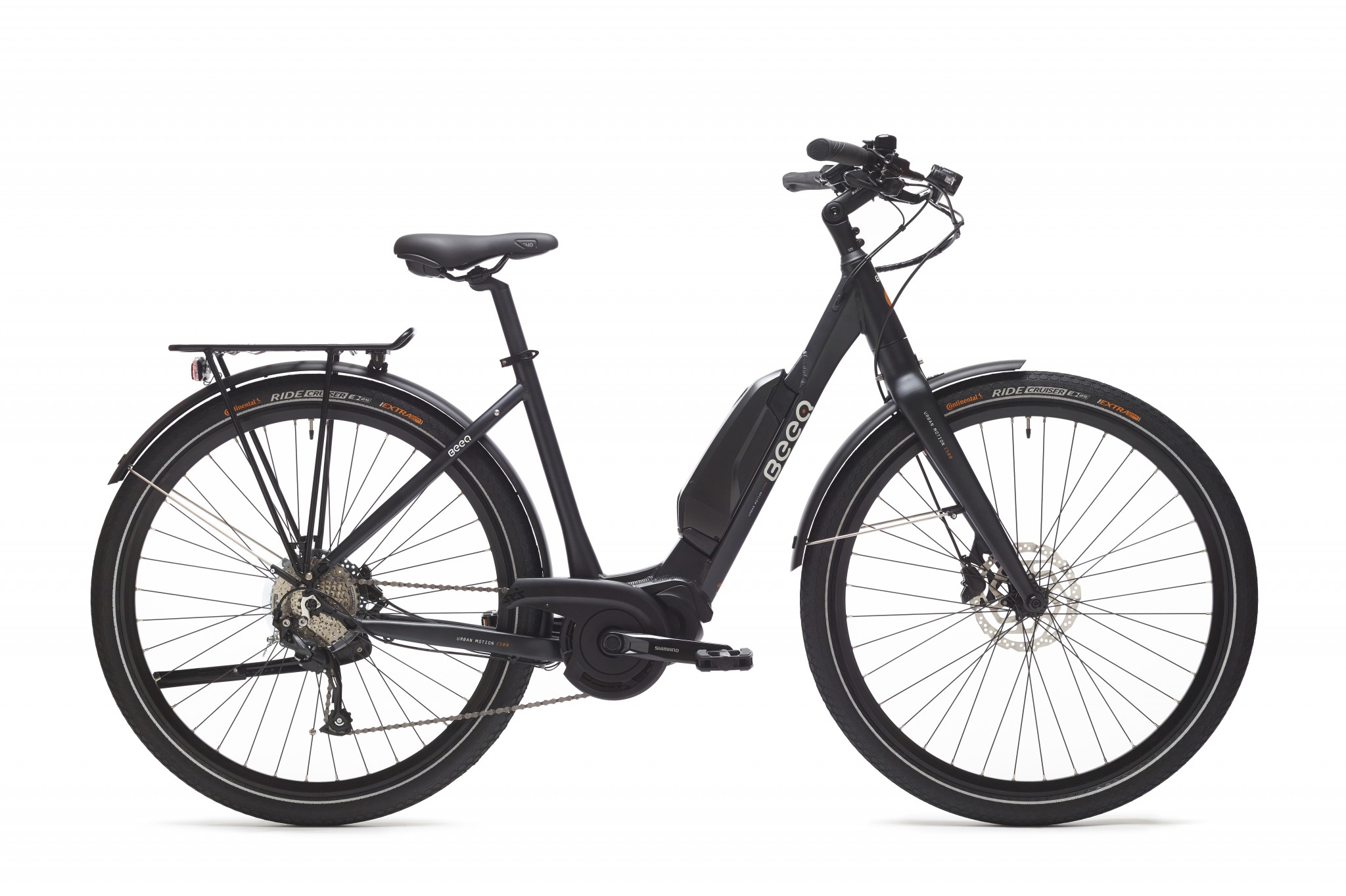

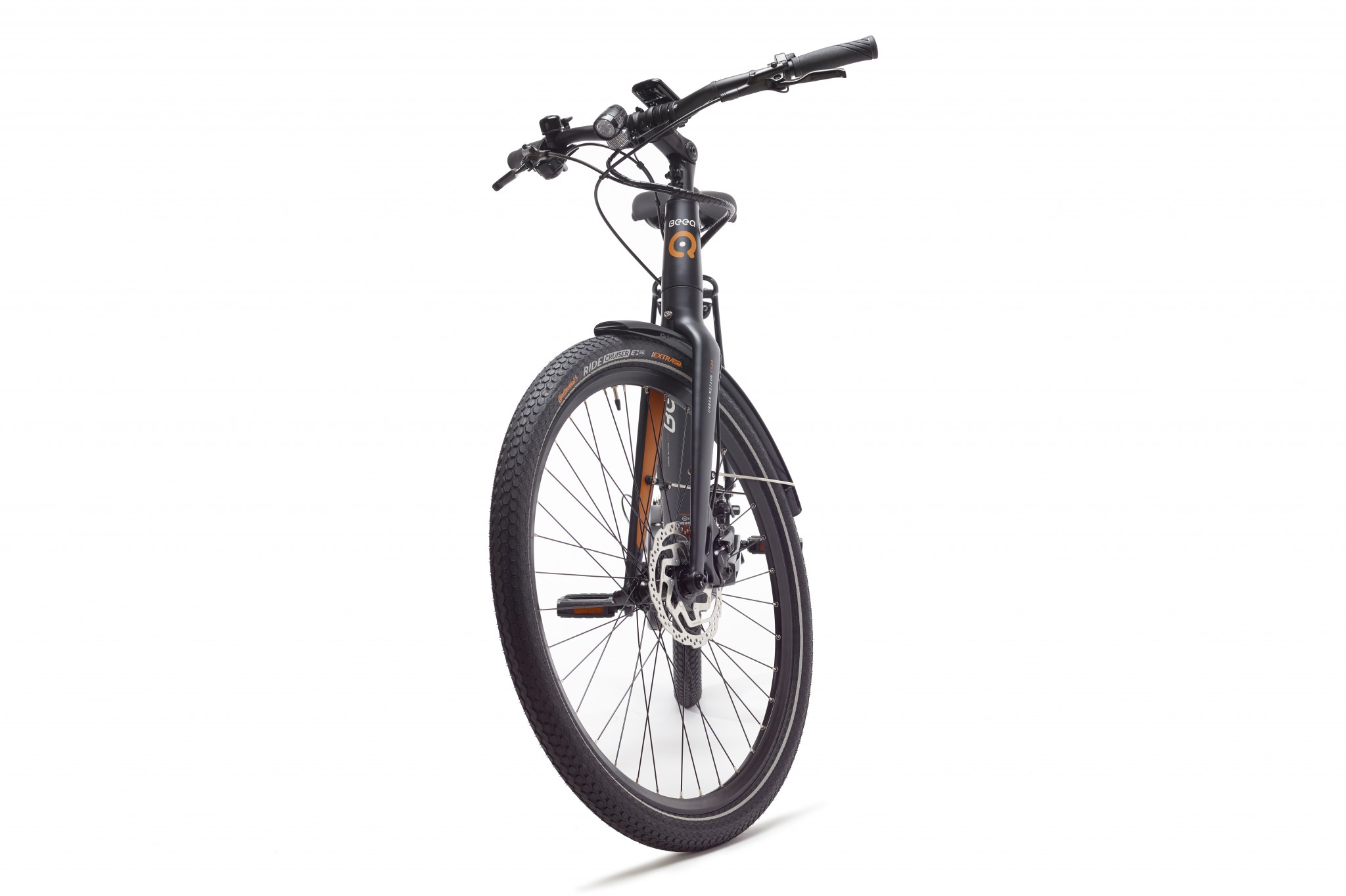

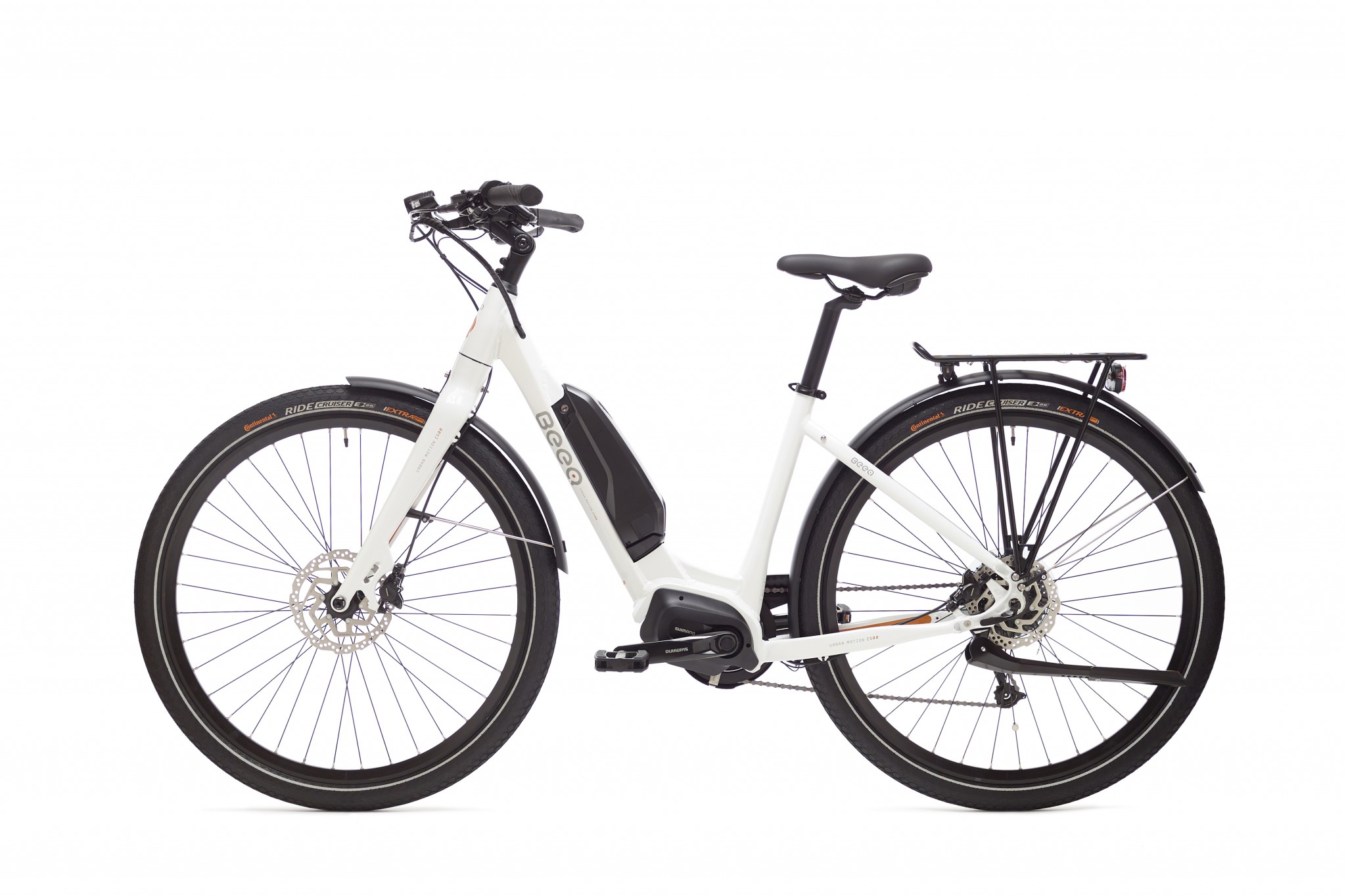

C500 Urban Motion
MOTOR
Get anywhere faster with the help of the Shimano Steps E500 250 W 40 nm motor.
CONTROL

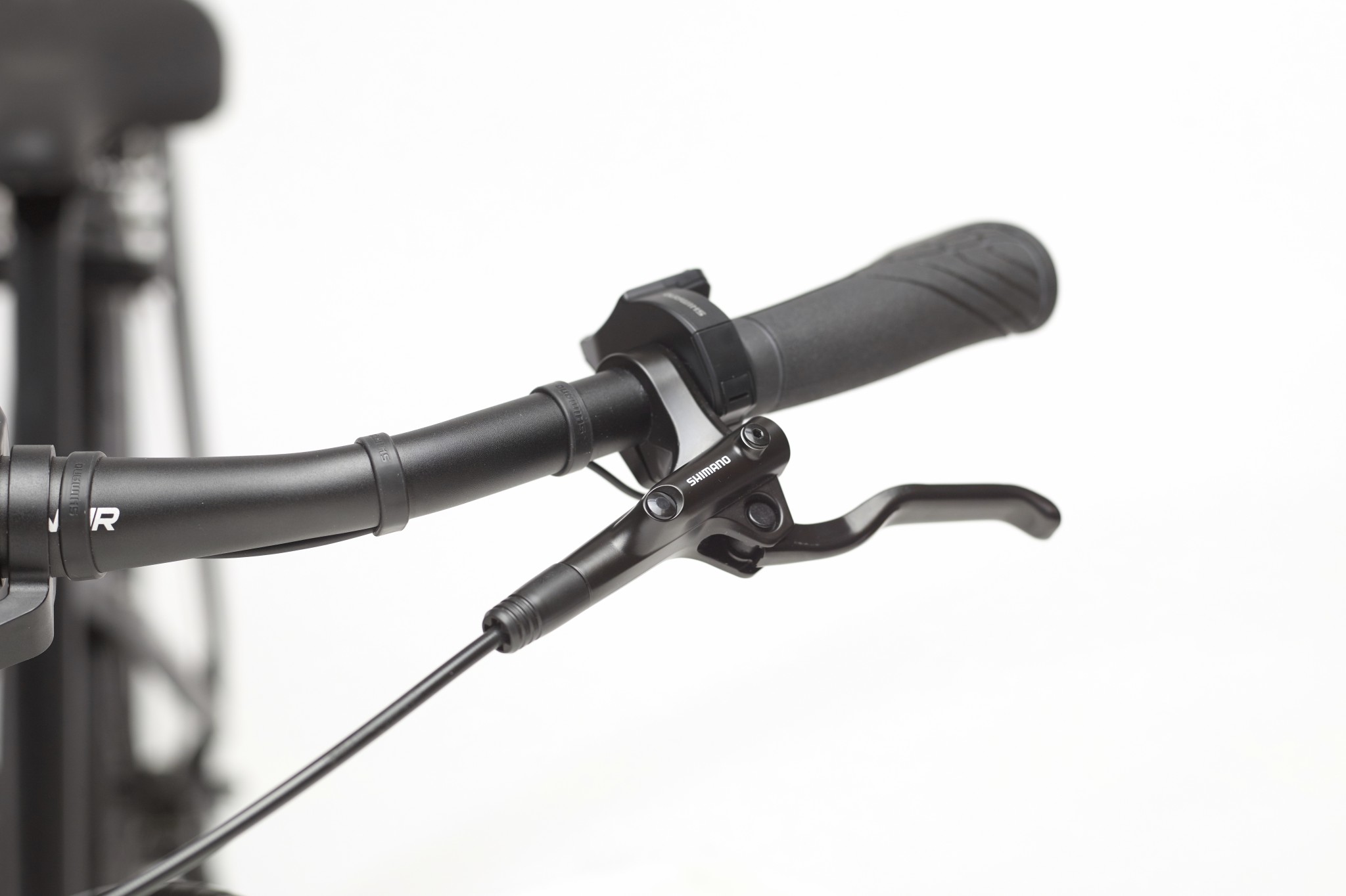

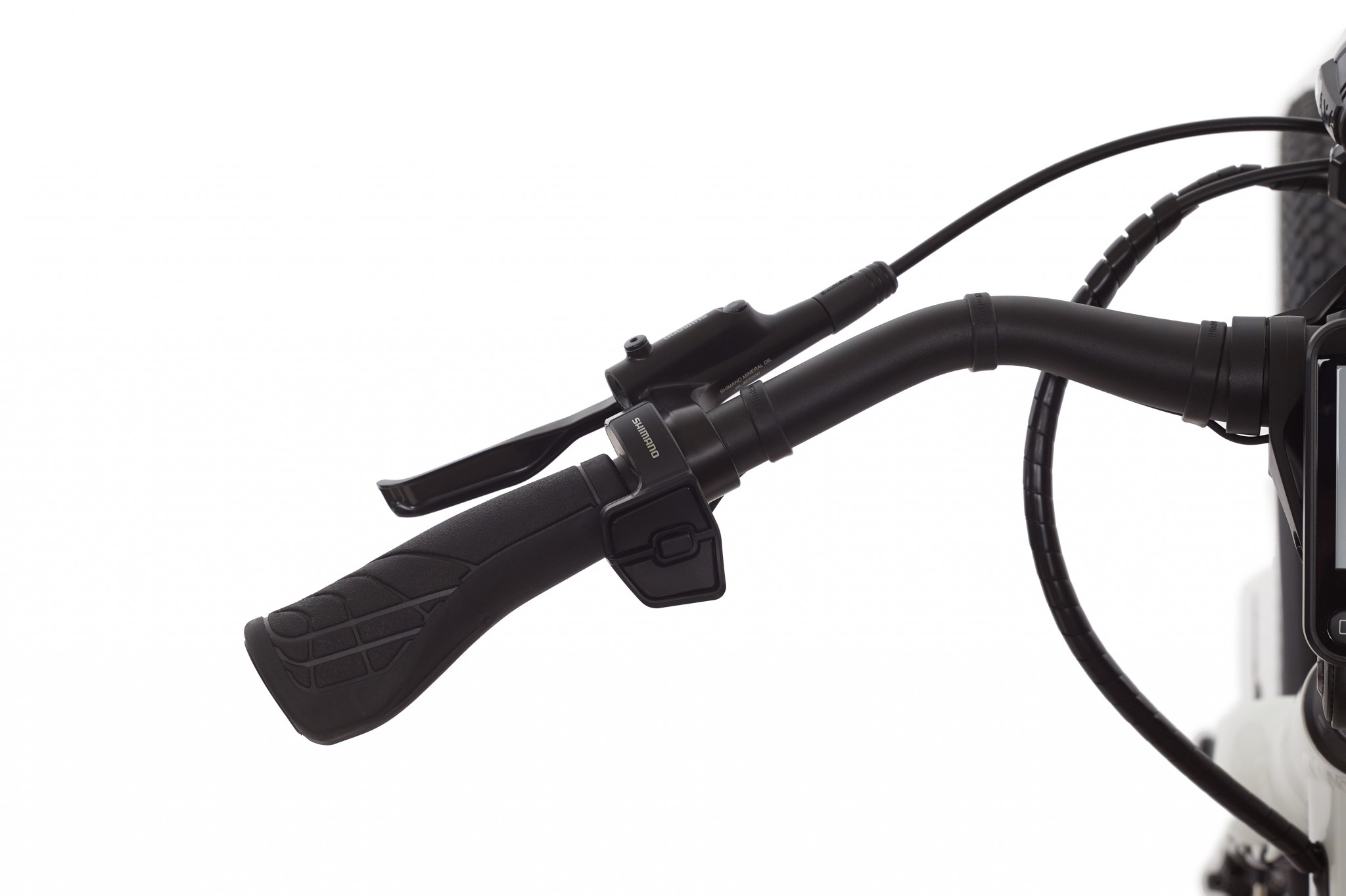

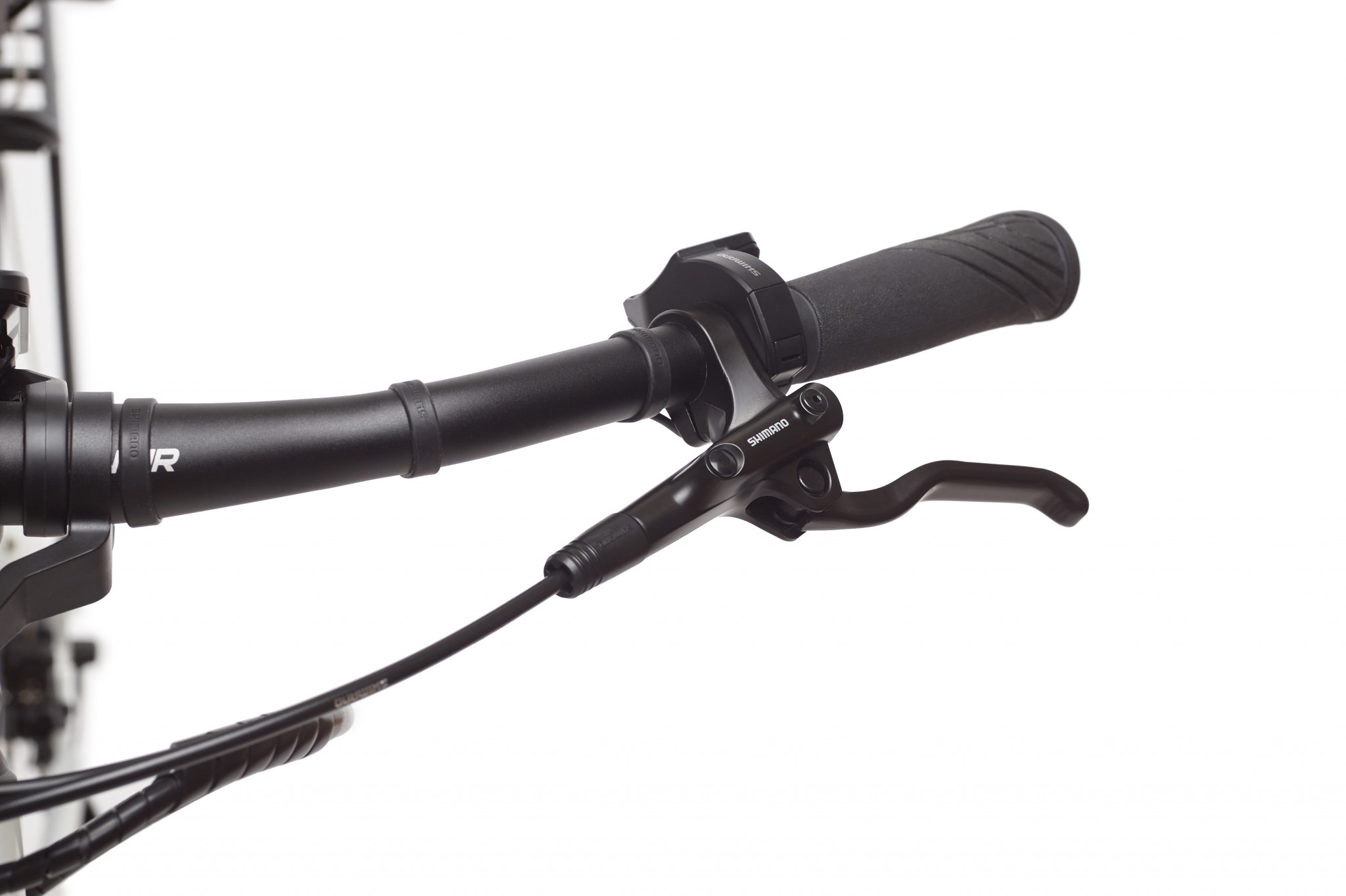

Good control of the bicycle thanks to the central integrated motor,the sturdy aluminium frame and the SHIMANO hydraulic brakes.
COMFORT
Thanks to the frame geometry, wide Continental tires and Selle Royal Gel saddle.
RANGE
Pedal from 40km up to100km (depending on the user’s weight, terrain conditions and altitude range), thanks to the efficient motor and the 418W/h battery.
Vox Pop
BTT Lobo
" An urban ebike at an affordable price."
Technical details
PRODUCT INFORMATION
FRAME SIZES
M (44cm) - L (48cm)
WEIGHT
Approx. 25kg
MAXIMUM BIKE & RIDER WEIGHT
120kg
The weight refers to the combined weight of the rider and bike including all clothing and equipment carried on the rider's person (backpacks etc.) and must not be exceeded.
PAINTING
Powder Painting Scratch Resistant with Matte or Glossy Varnish
COLOUR(s)
White Star with glossy varnish| Happy Blue with matte finish | Black Suit with matte finish
FRAME
E-BIKE SYSTEM

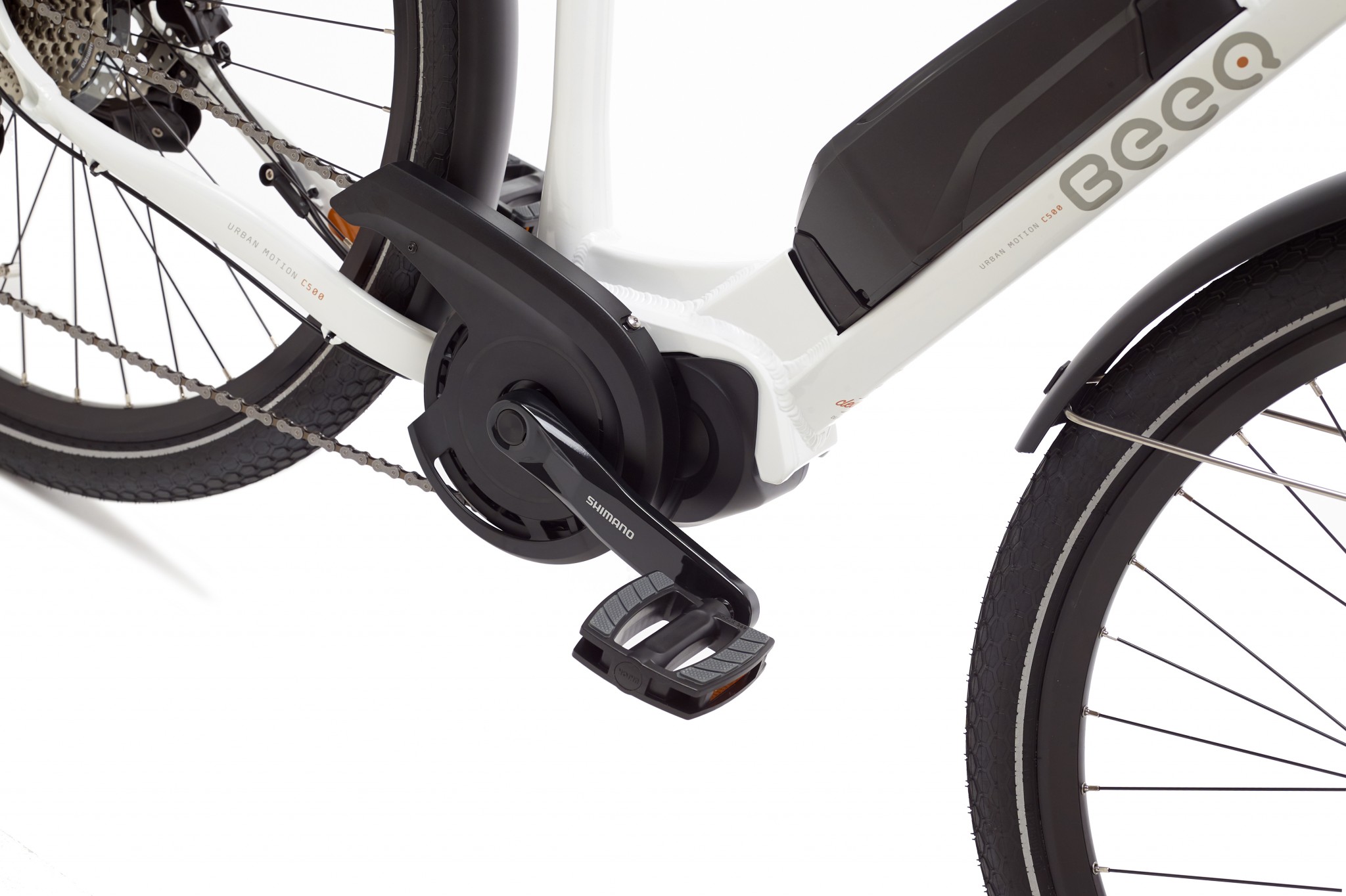

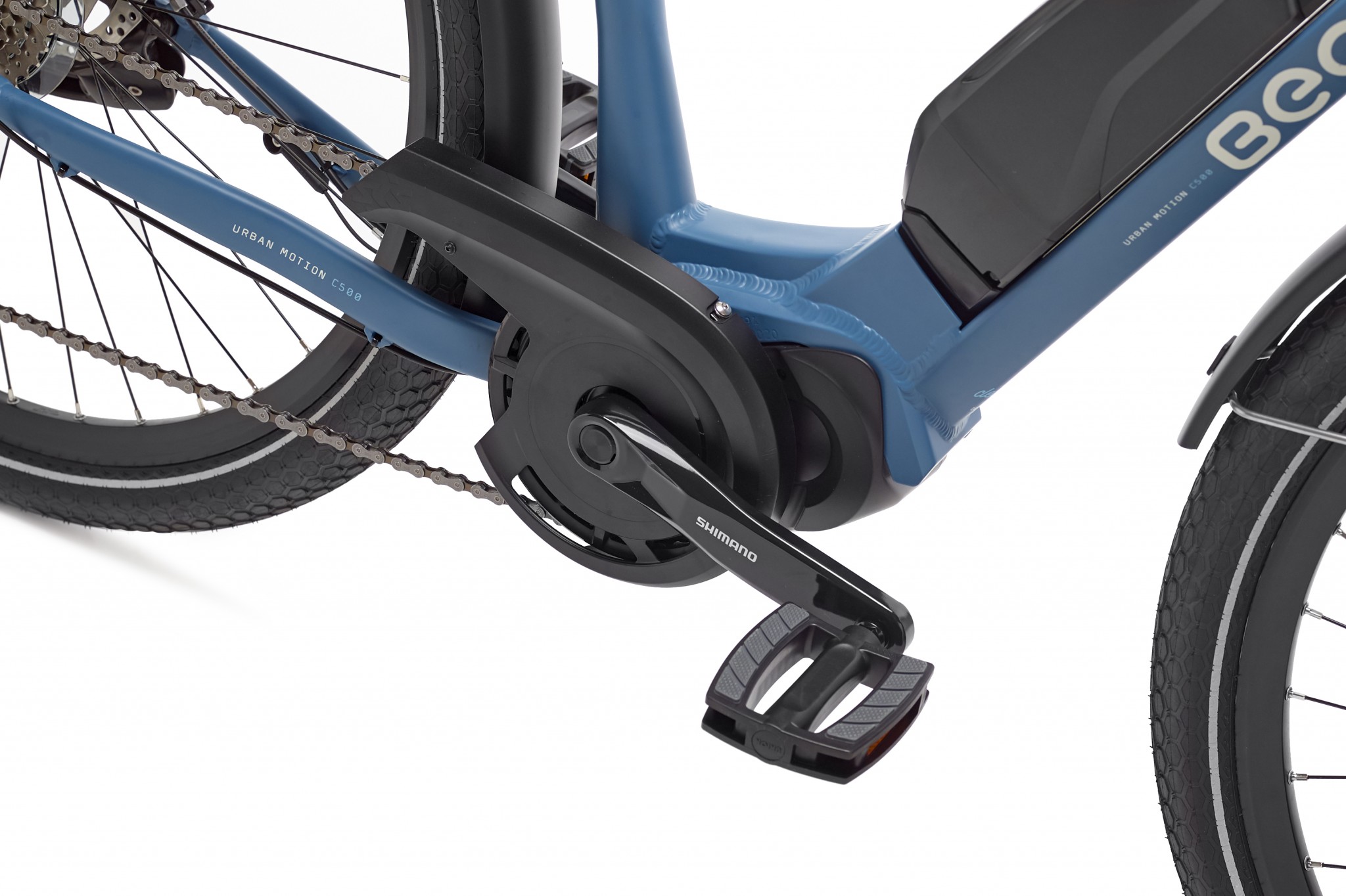

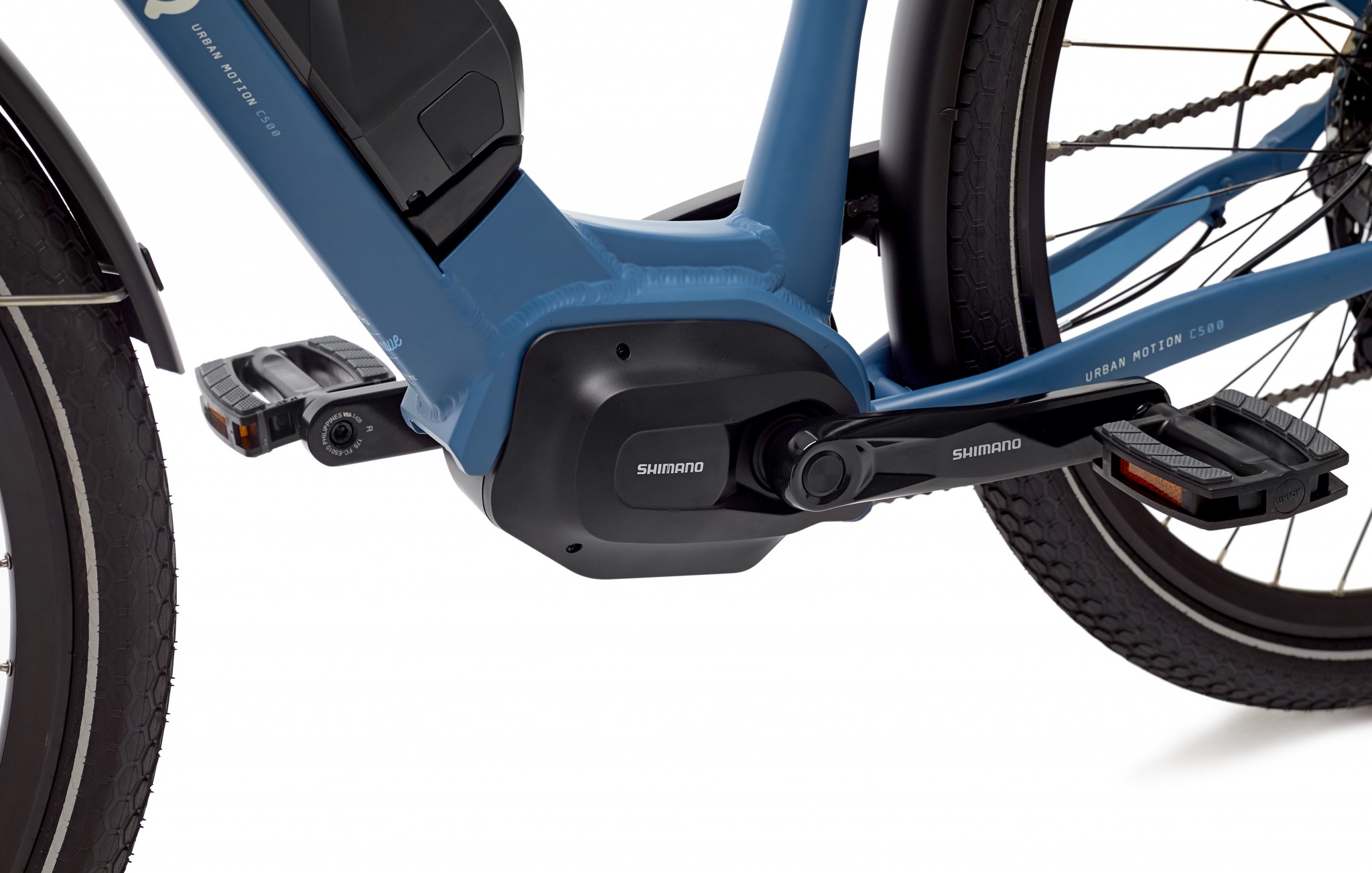

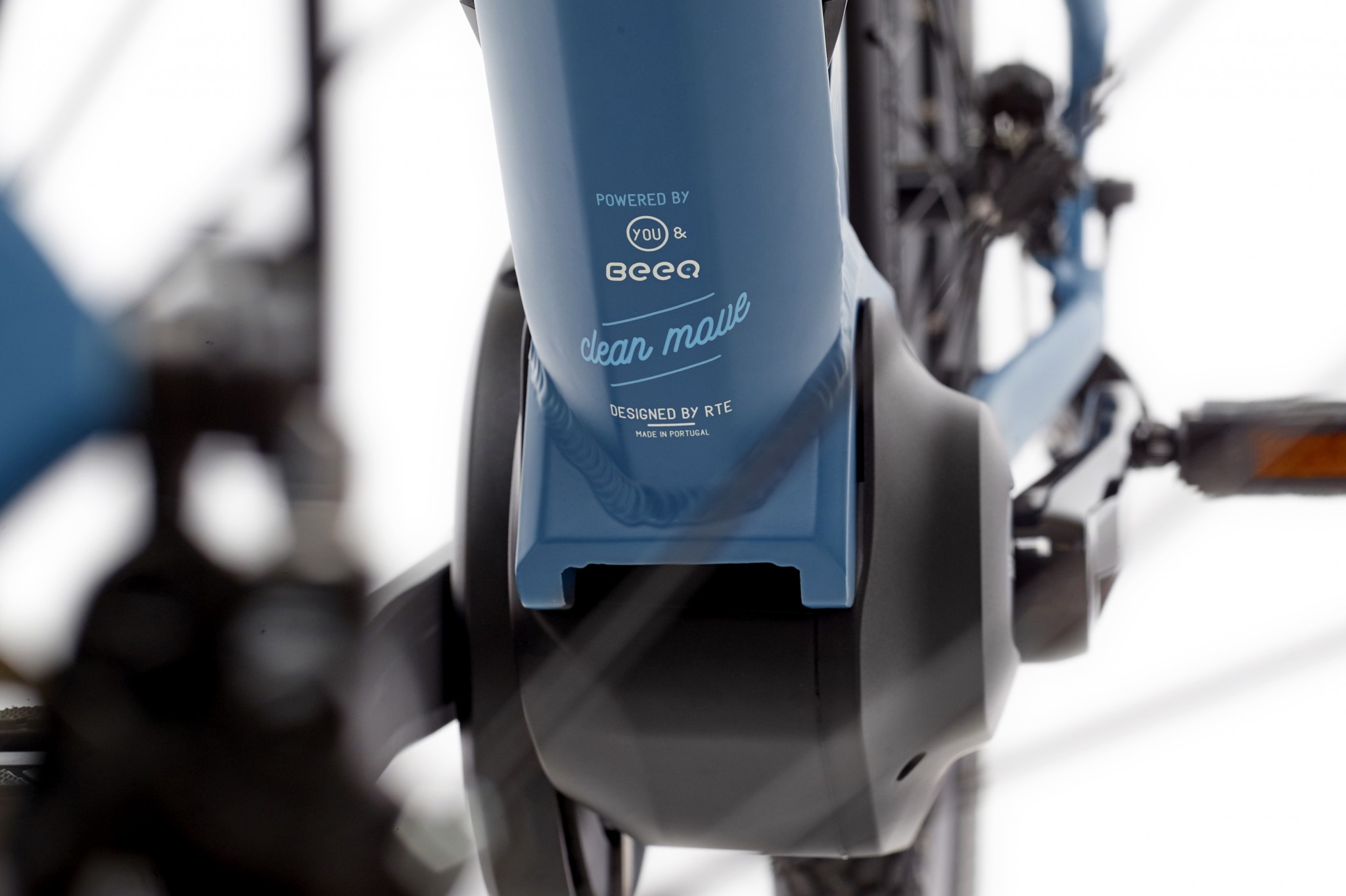

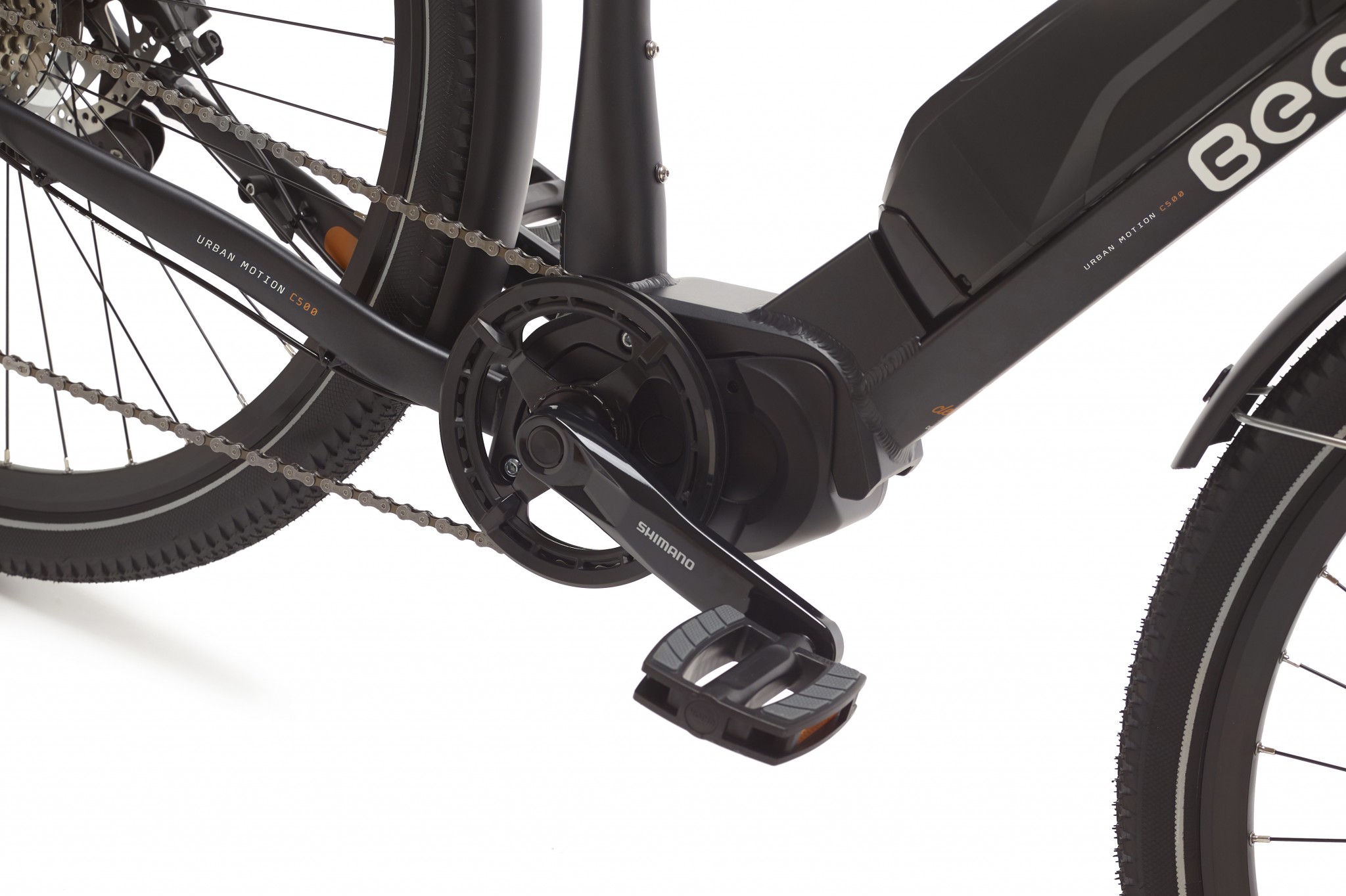

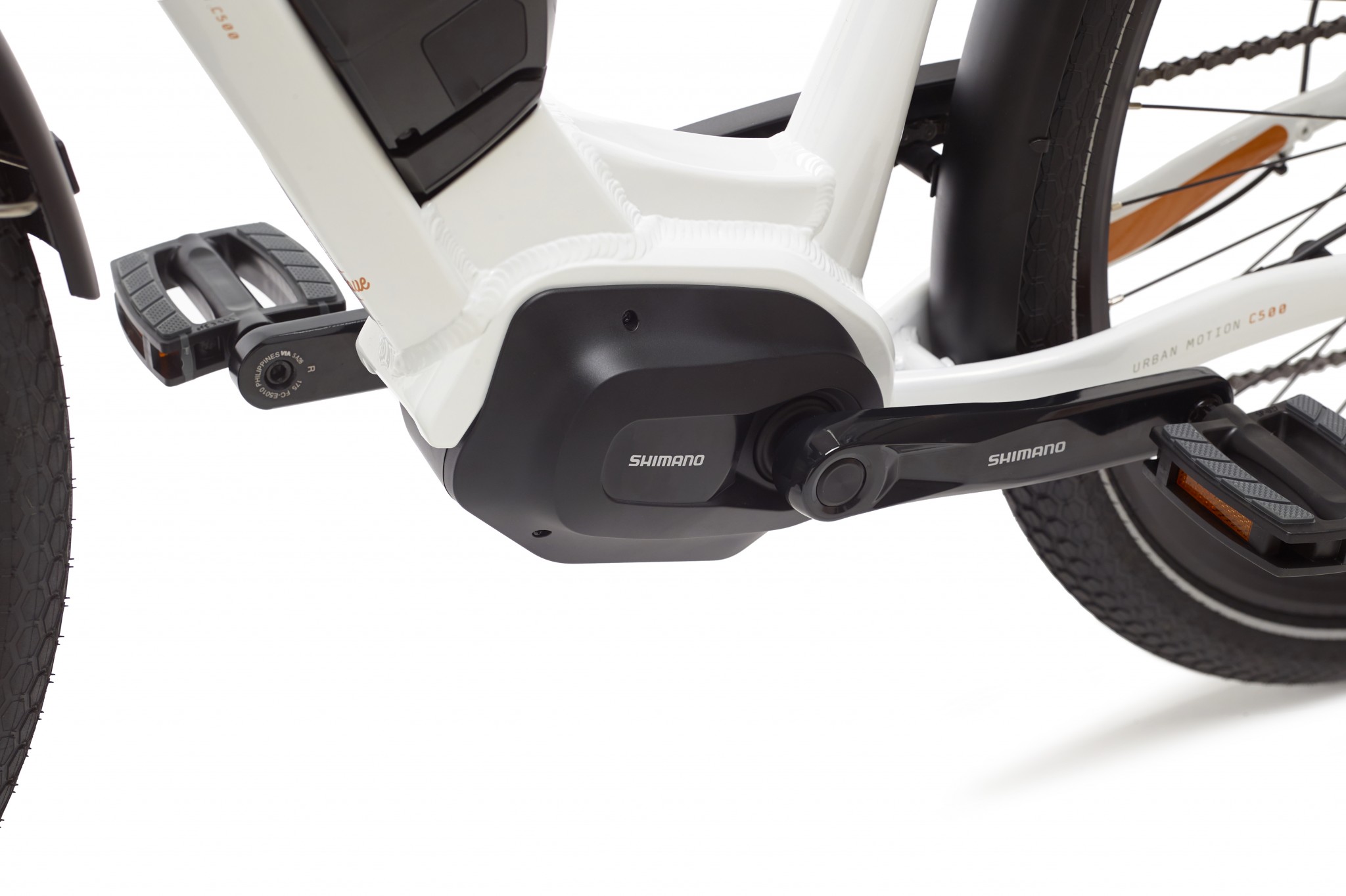

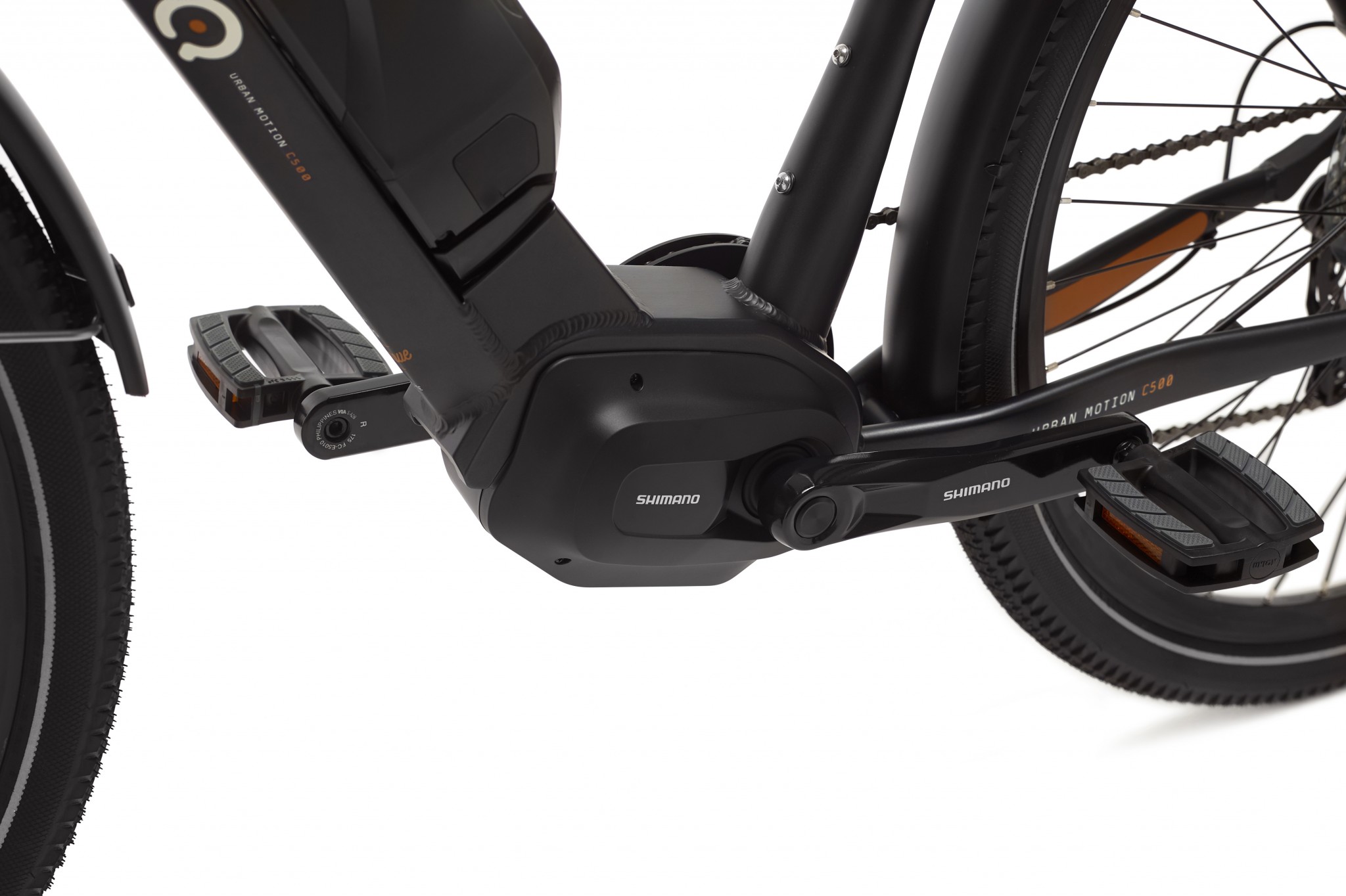

DRIVE UNIT
SHIMANO STEPS E5000 40Nm
250 W motor with max torque of 40 Nm, for solid power and acceleration
Durable square-axle bottom bracket, designed to handle the demands of e-bike riding
Optimised pedalling efficiency due to its narrowed pedal-to-frame width
Designed for all weather conditions
Transmission of power through dedicated chainring
Up to 200% max support to effortlessly get you anywhere you need to go
Power-assist modes: High, Normal, Eco, Walk
- High: Full support for when you need it most (200% support)
- Normal: Smooth, comfortable support (100% support)
- Eco: Saves battery for those long rides (40% support)
- Walk: Easy to activate, offers a helping hand in pushing the bike (up to 6 km/h)
Durable square-axle bottom bracket, designed to handle the demands of e-bike riding
Optimised pedalling efficiency due to its narrowed pedal-to-frame width
Designed for all weather conditions
Transmission of power through dedicated chainring
Up to 200% max support to effortlessly get you anywhere you need to go
Power-assist modes: High, Normal, Eco, Walk
- High: Full support for when you need it most (200% support)
- Normal: Smooth, comfortable support (100% support)
- Eco: Saves battery for those long rides (40% support)
- Walk: Easy to activate, offers a helping hand in pushing the bike (up to 6 km/h)

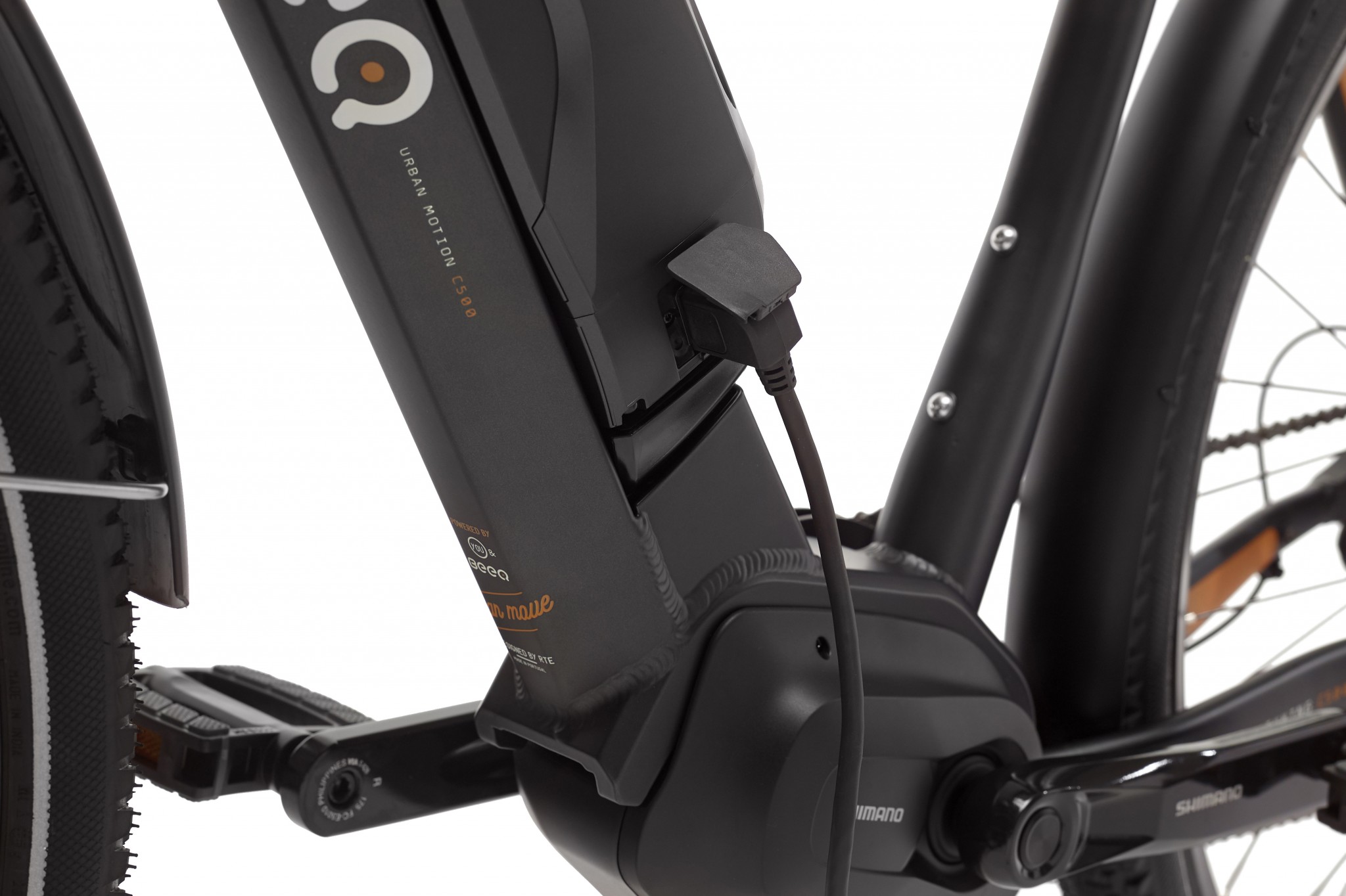

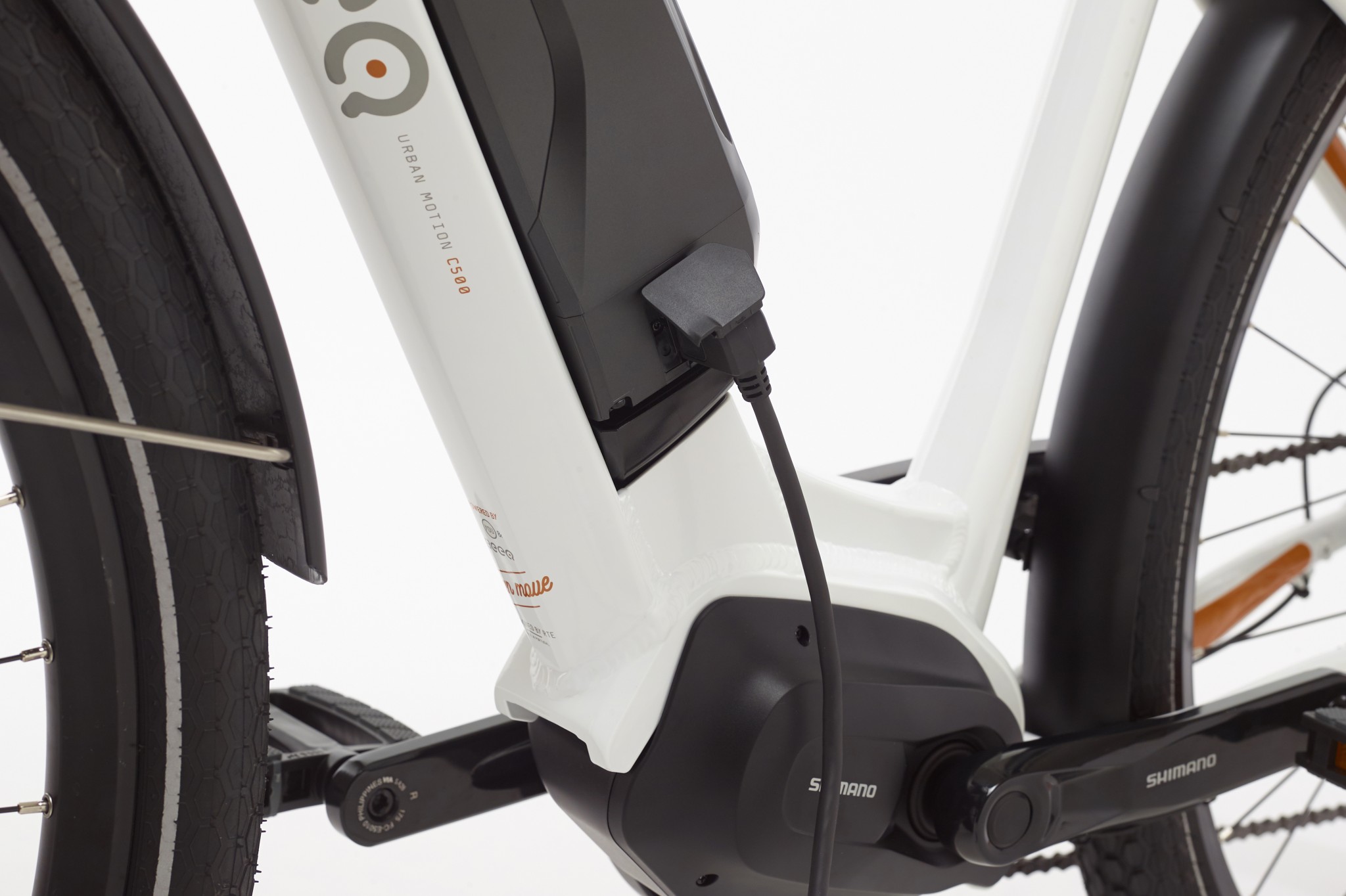

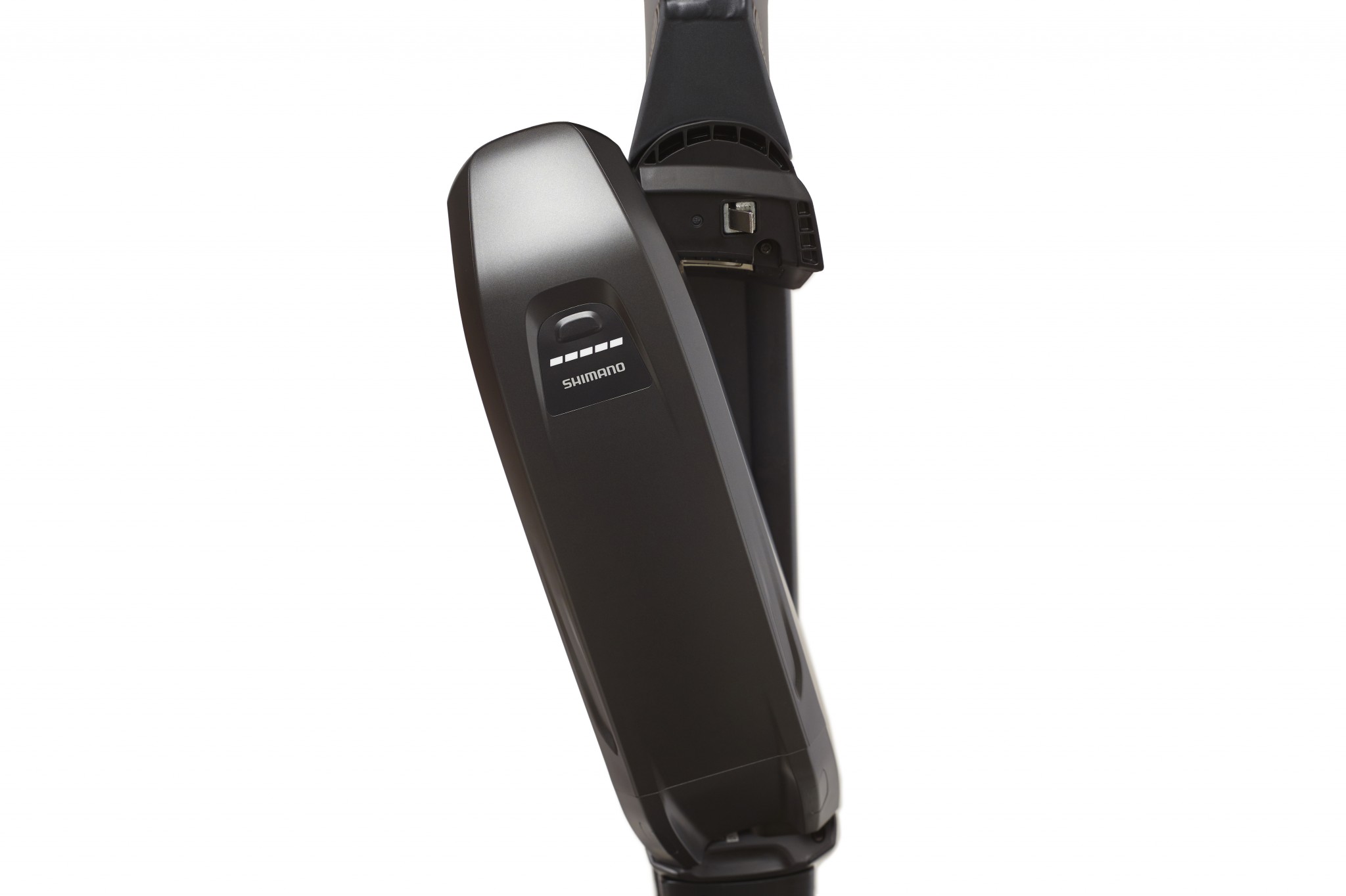

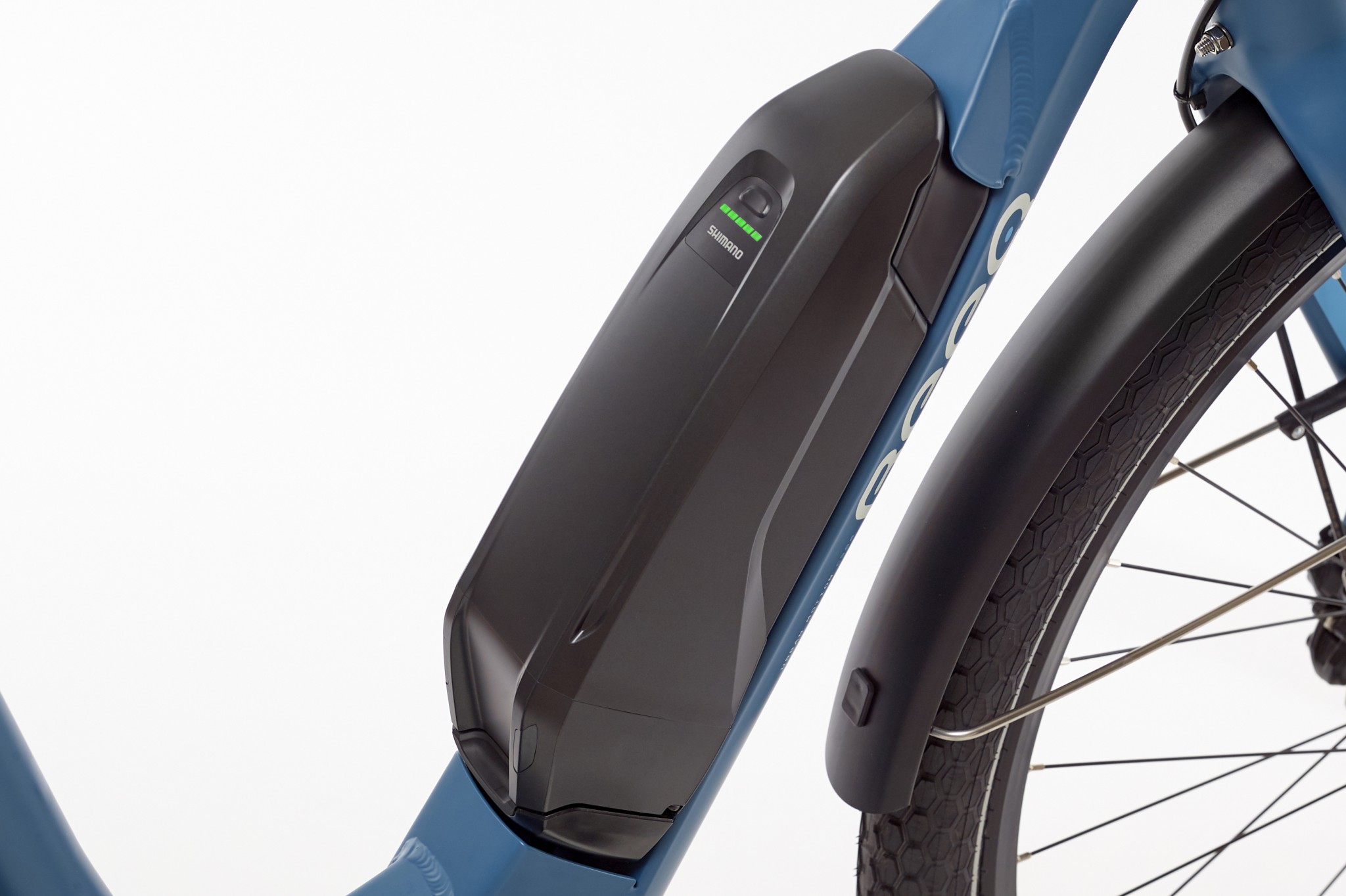

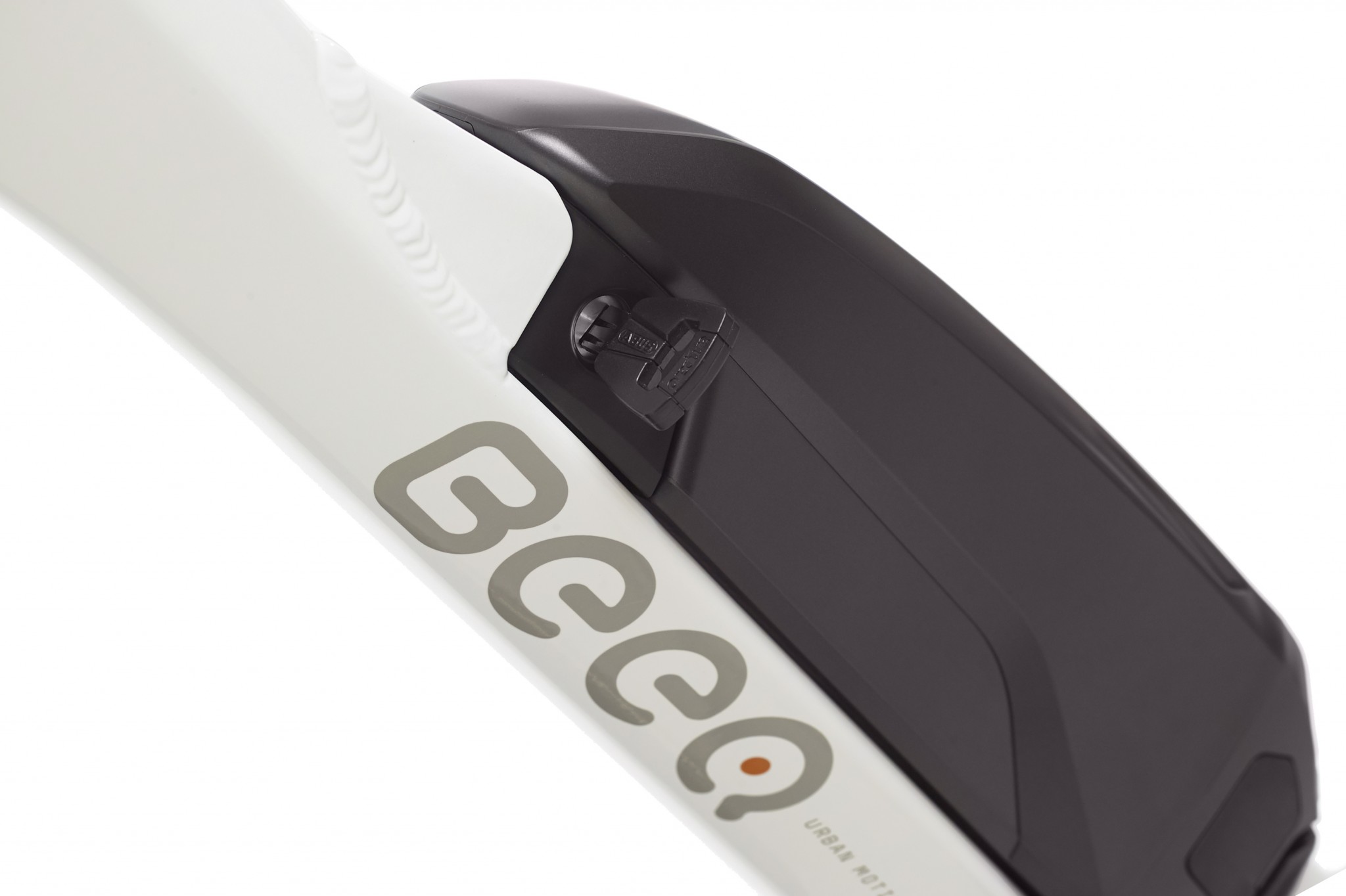

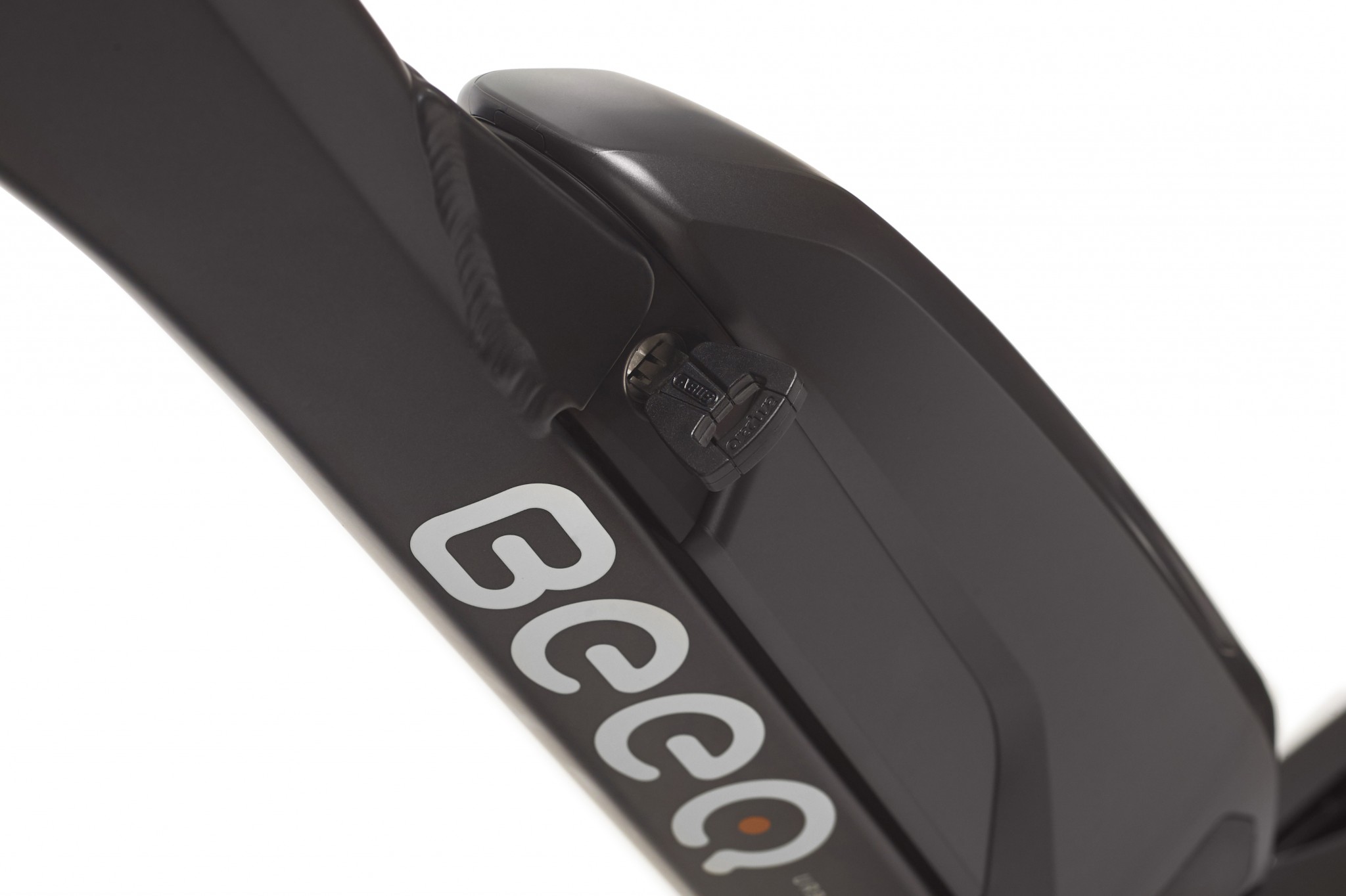

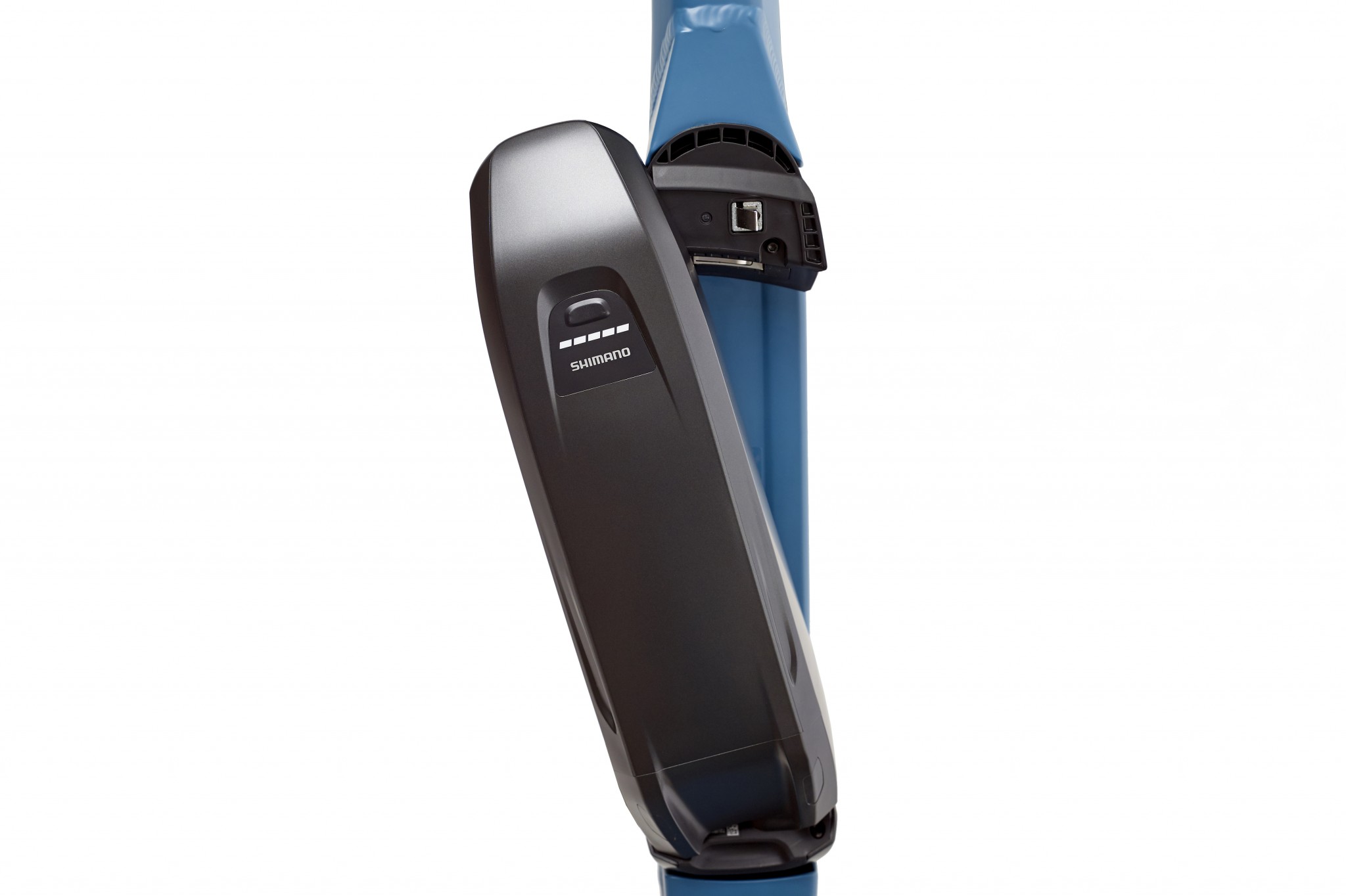

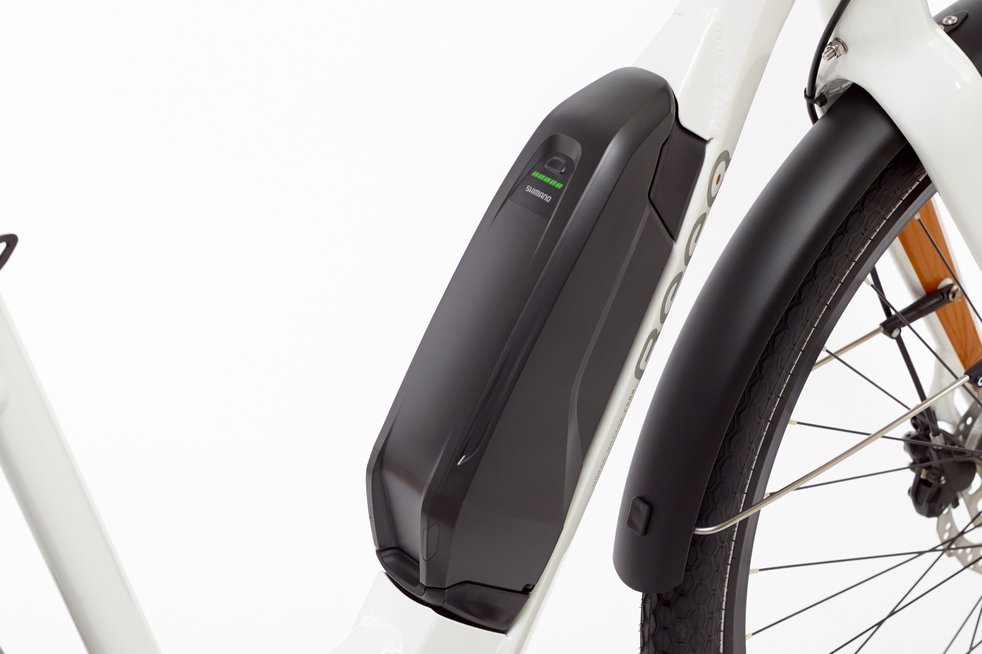

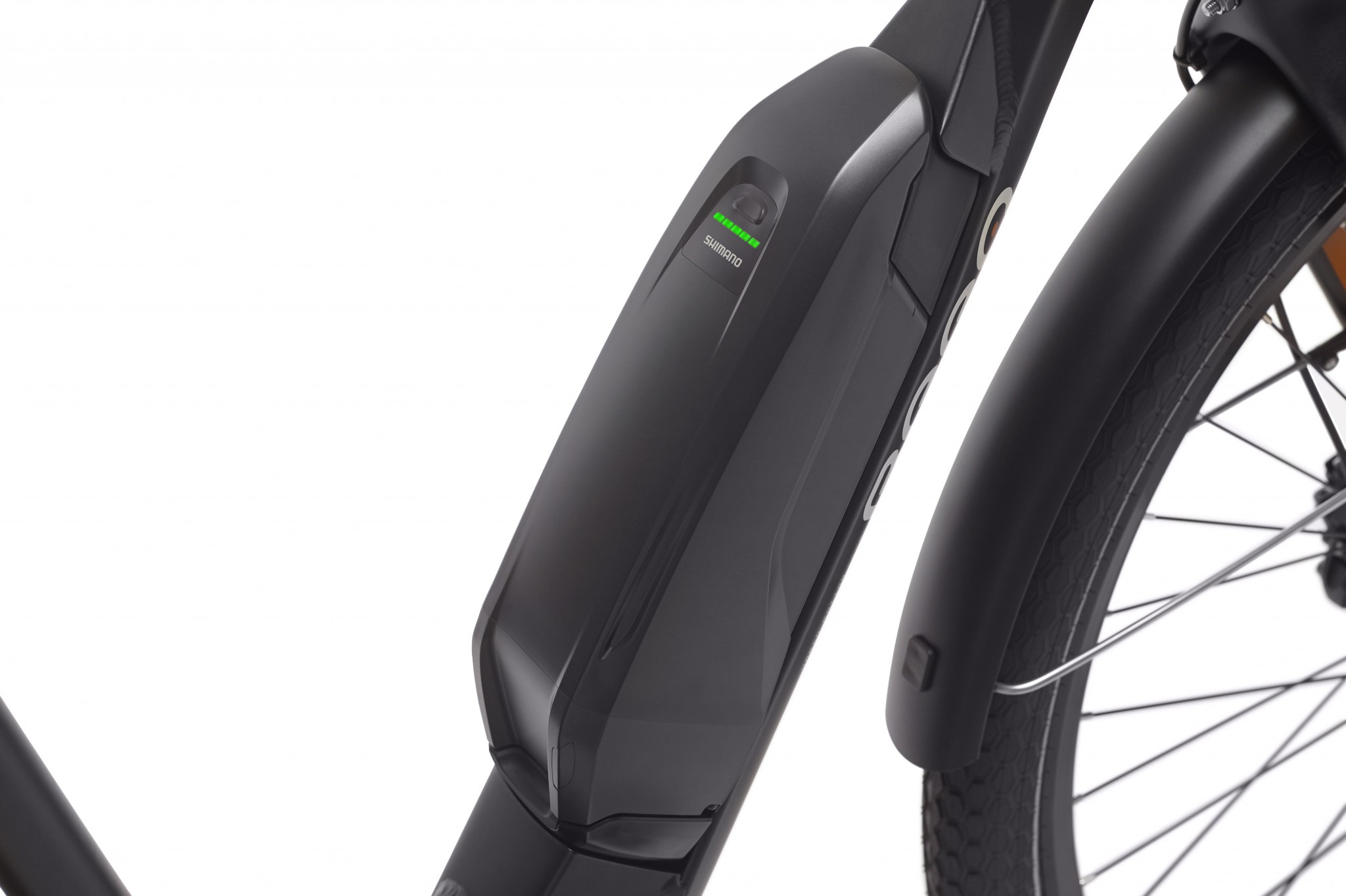

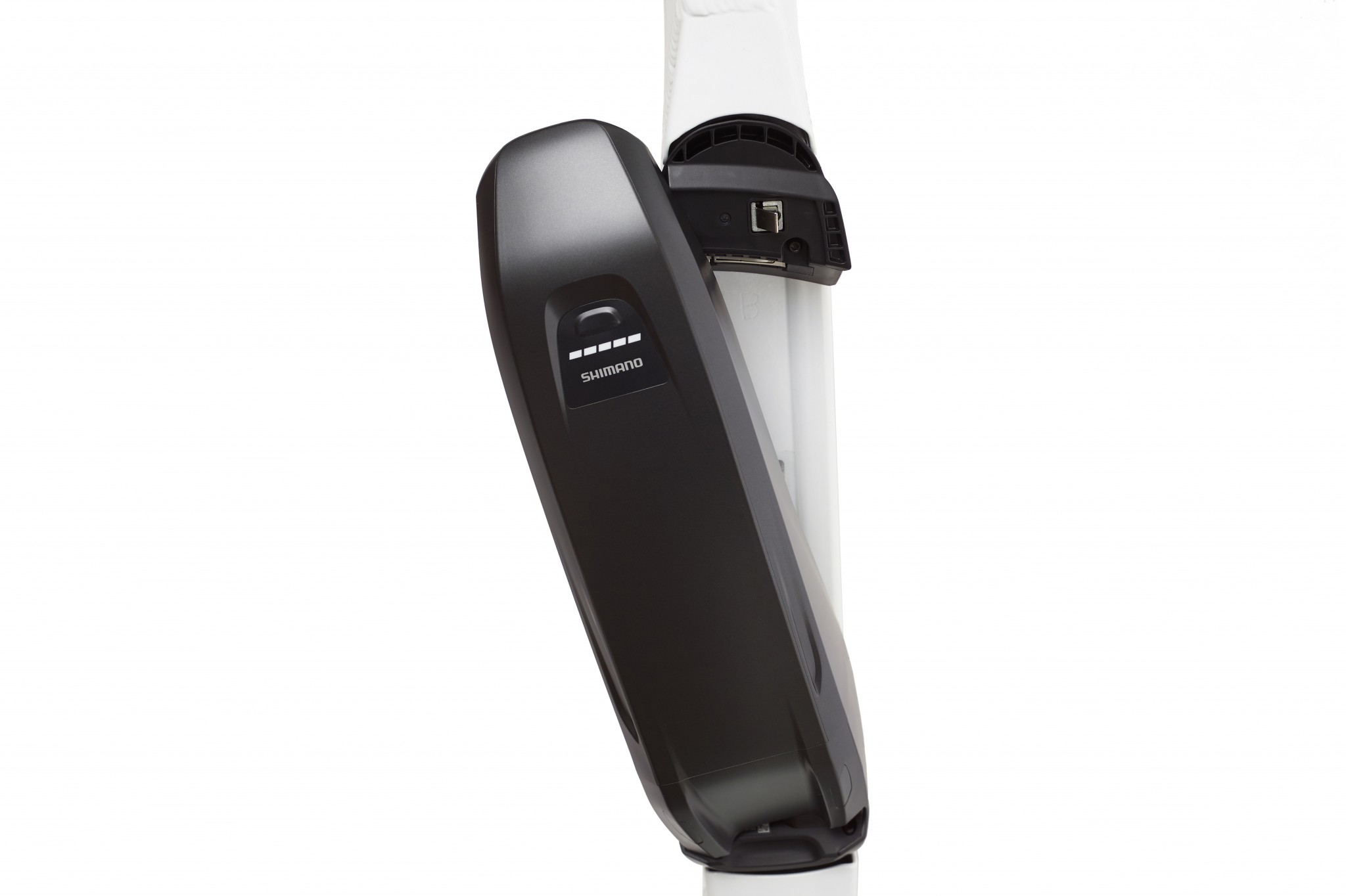

BATTERY
418Wh 36V - Semi-integrated in downtube - Removable
- 50~190km Autonomy
- High capacity Li-Ion battery options: 418 Wh external downtube-mounted (2,660 g)
- Holds at least 80% of its max charge after 500 full charges
- Holds at least 60% of its max charge after 1000 full charges
- High capacity Li-Ion battery options: 418 Wh external downtube-mounted (2,660 g)
- Holds at least 80% of its max charge after 500 full charges
- Holds at least 60% of its max charge after 1000 full charges
RANGE
40km to 100km

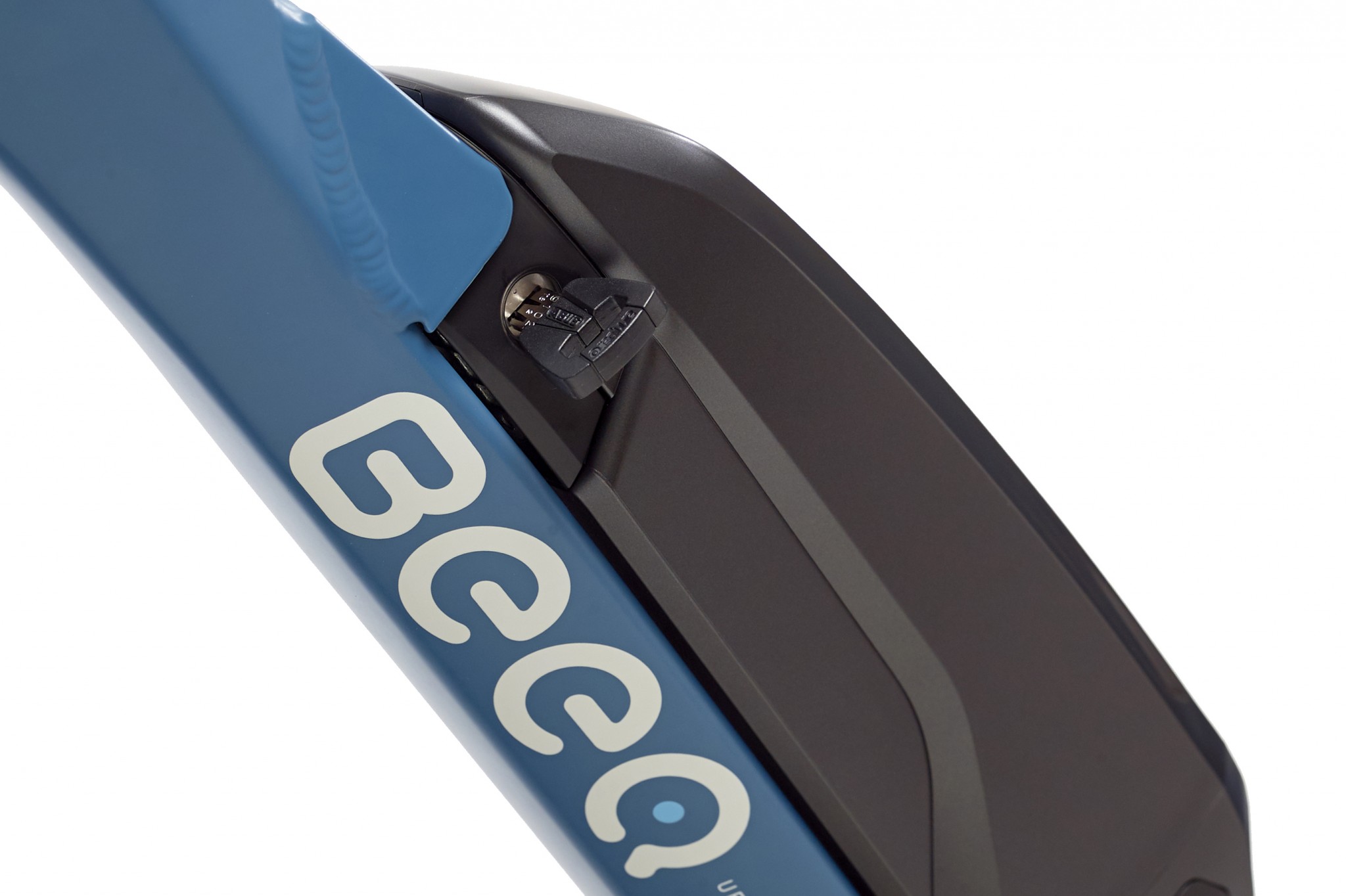

BATTERY LOCK KEY
Yes

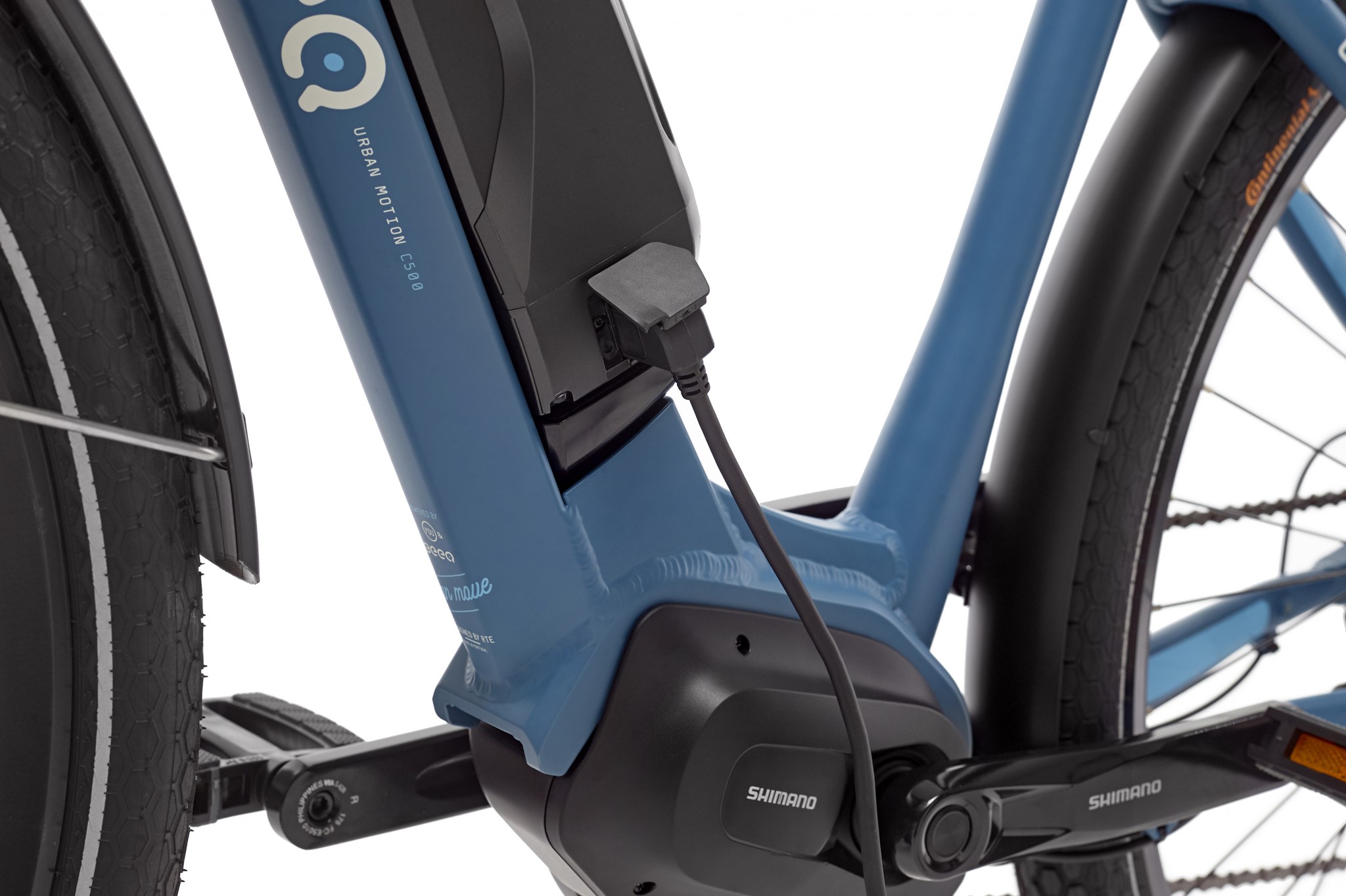

CHARGER
2A - 6 hours total charge time
DISPLAY
SHIMANO SC-E6100

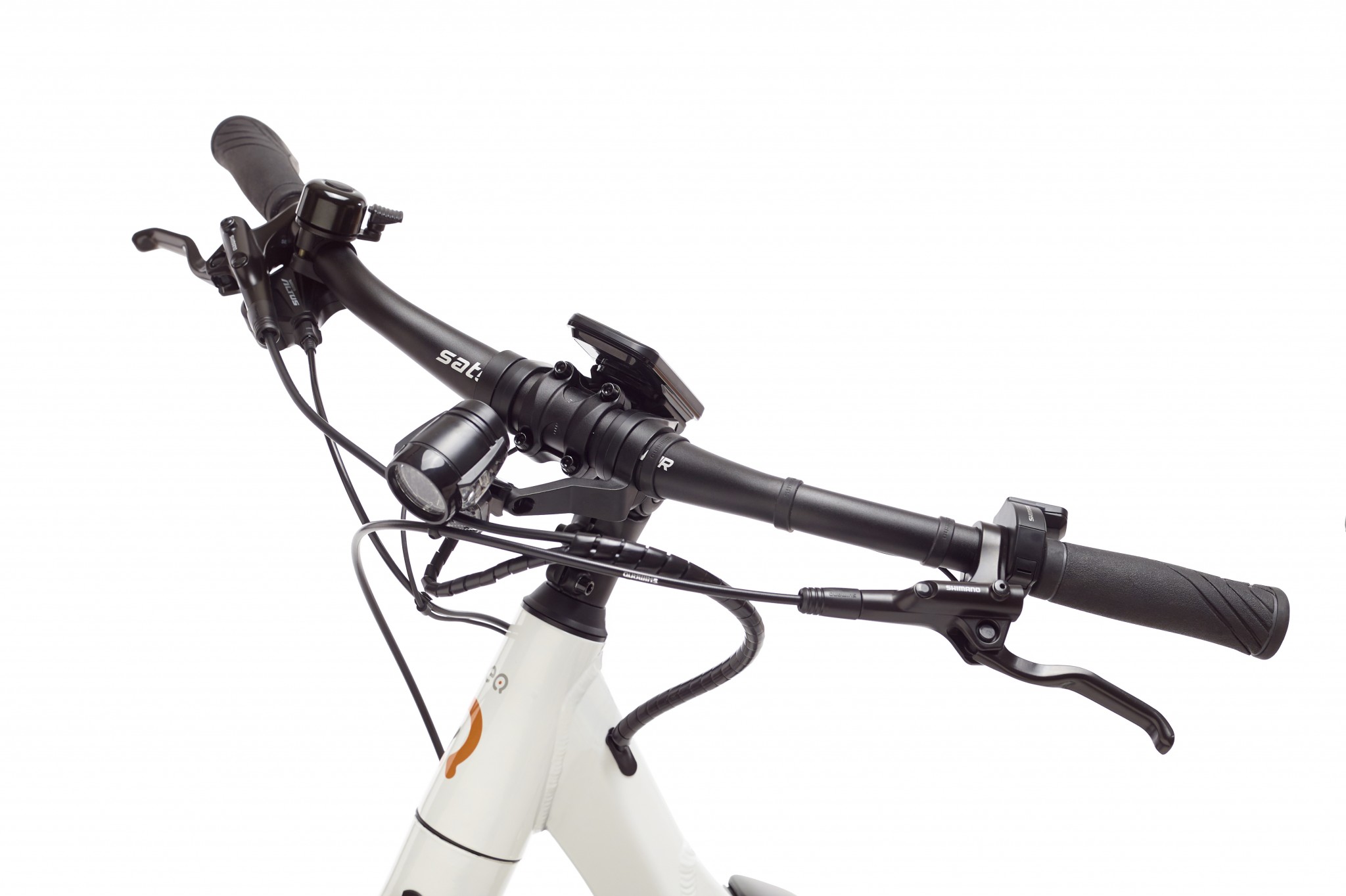

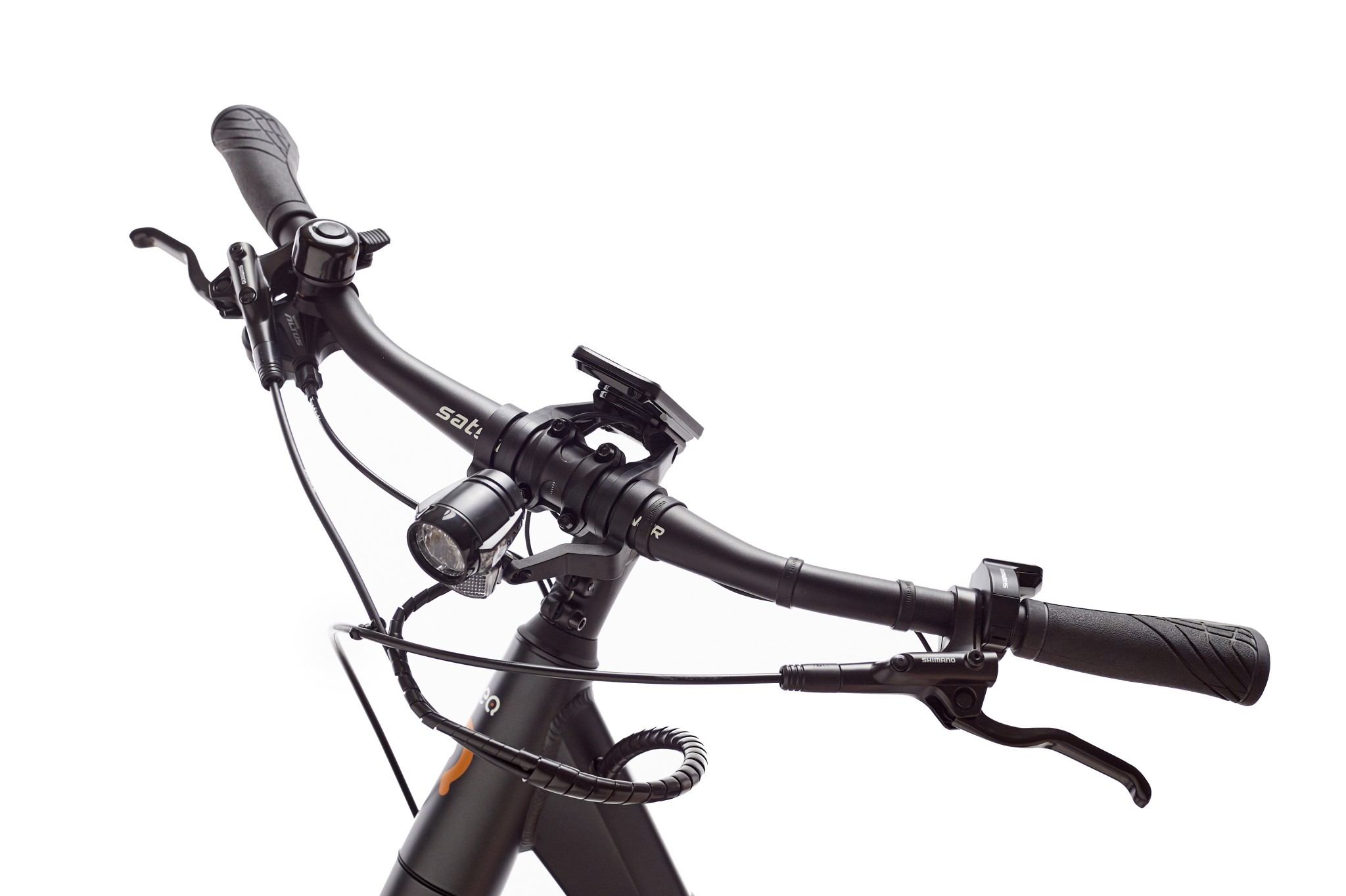

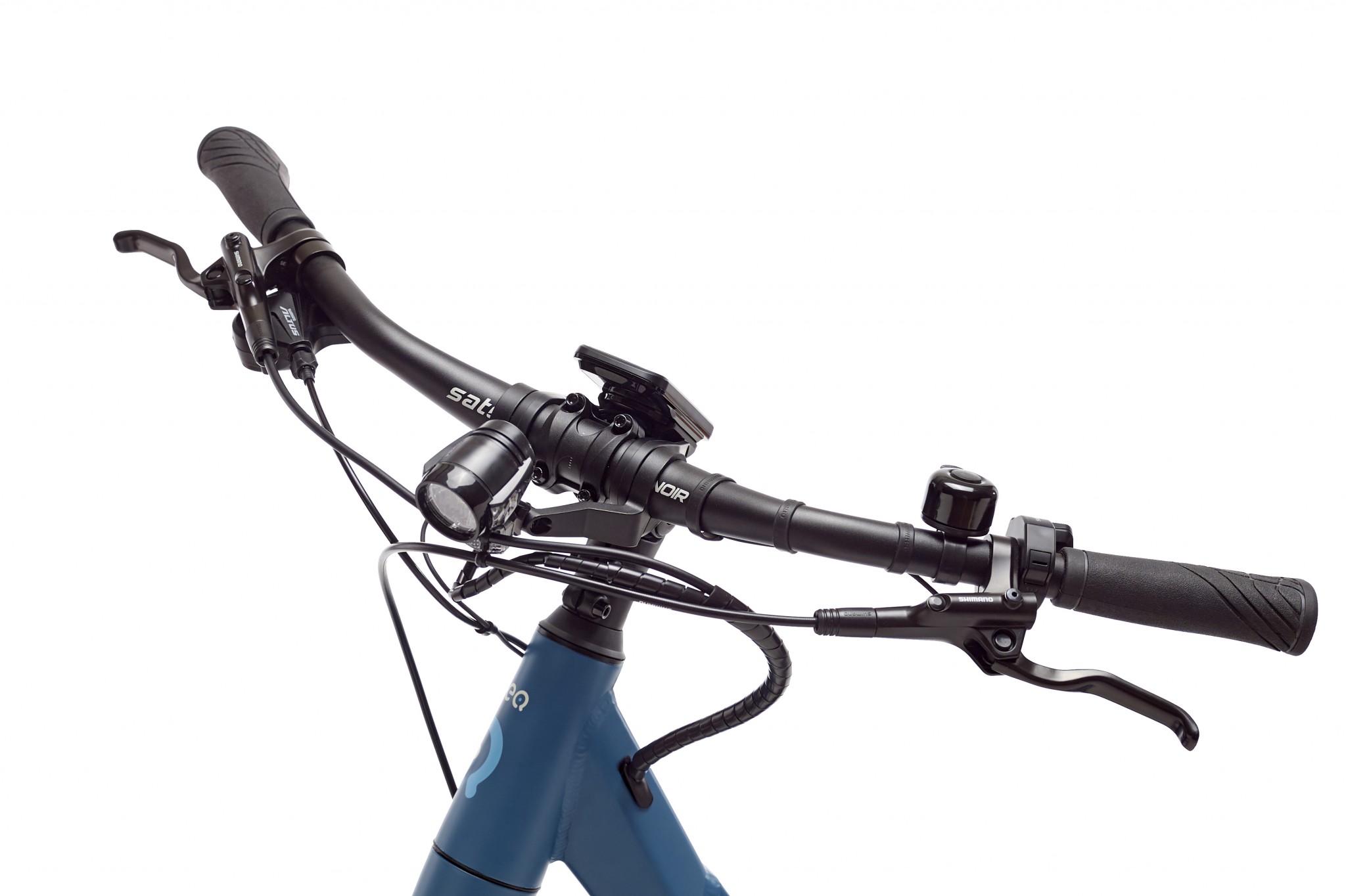

COCKPIT
WHEELSET
WHEEL SIZE
28''
RIMS
Alloy Double Wall 25mm
SPOKES
Black Stainless Steel

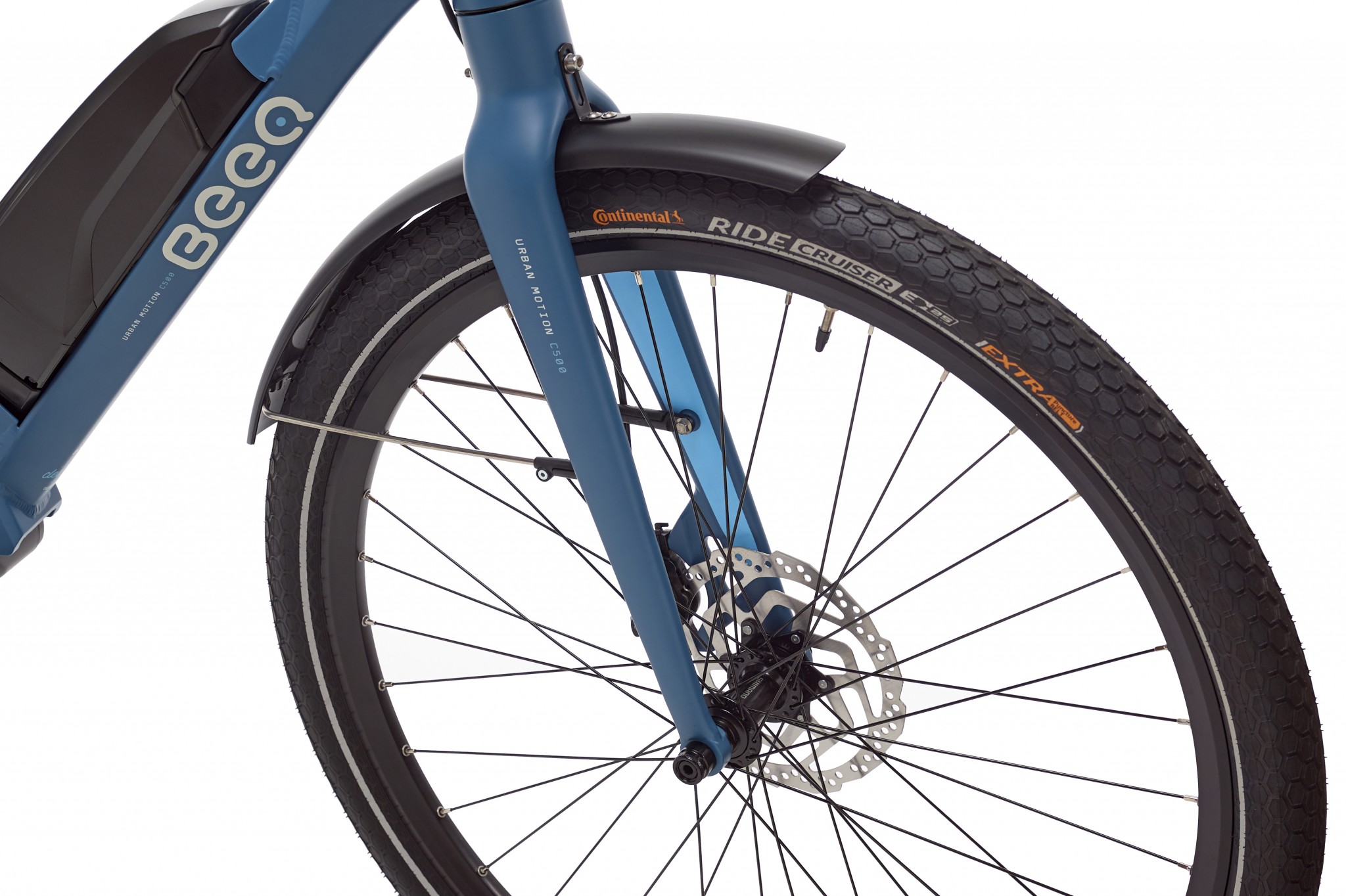

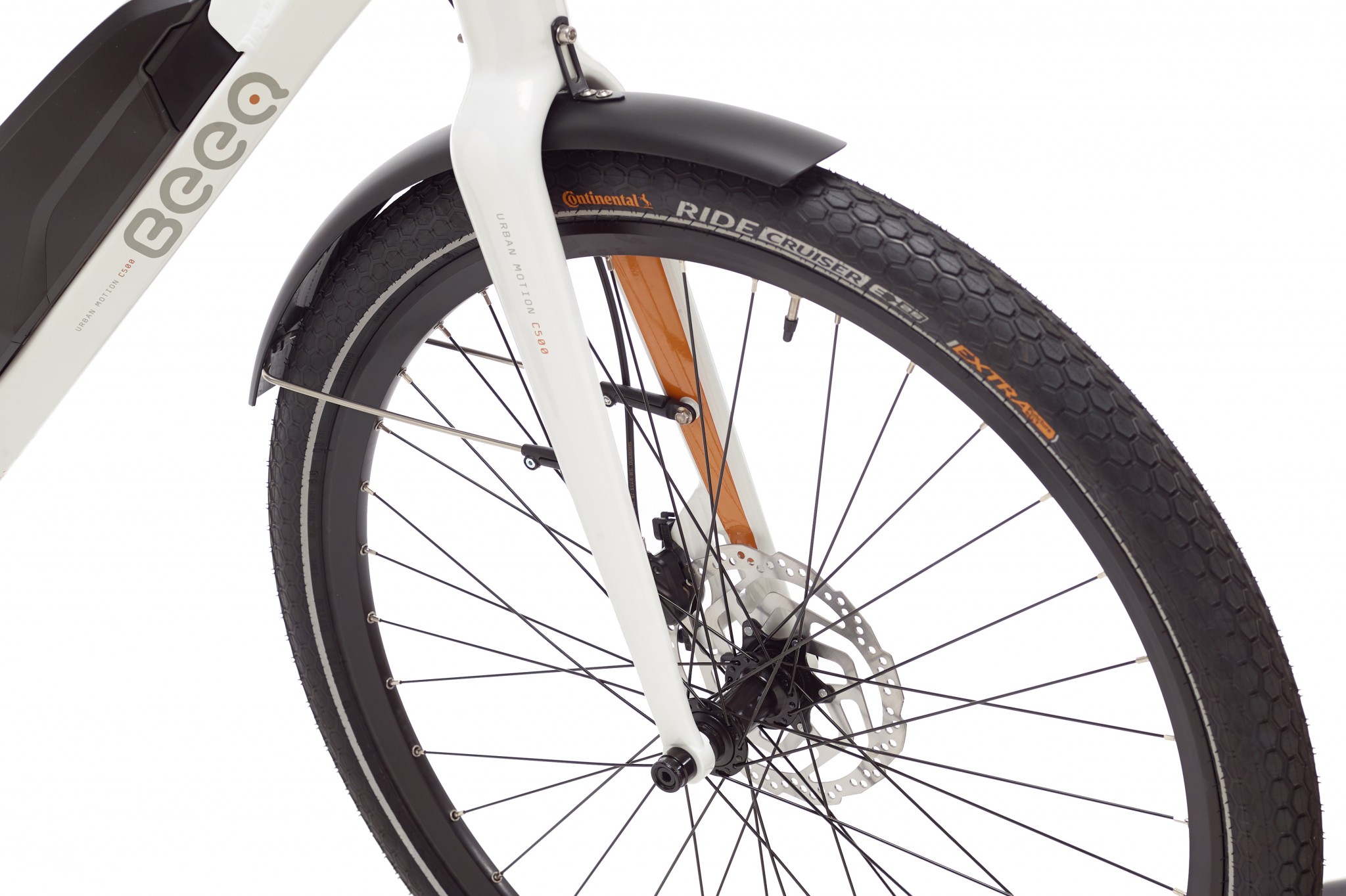

FRONT HUB
SHIMANO HB-MT400 100 Thru-axle 15mm
- 36H
-15mm Thru Axle
- OLD 100mm
- For SHIMANO Centrelock discs
-15mm Thru Axle
- OLD 100mm
- For SHIMANO Centrelock discs
DRIVETRAIN & BRAKES

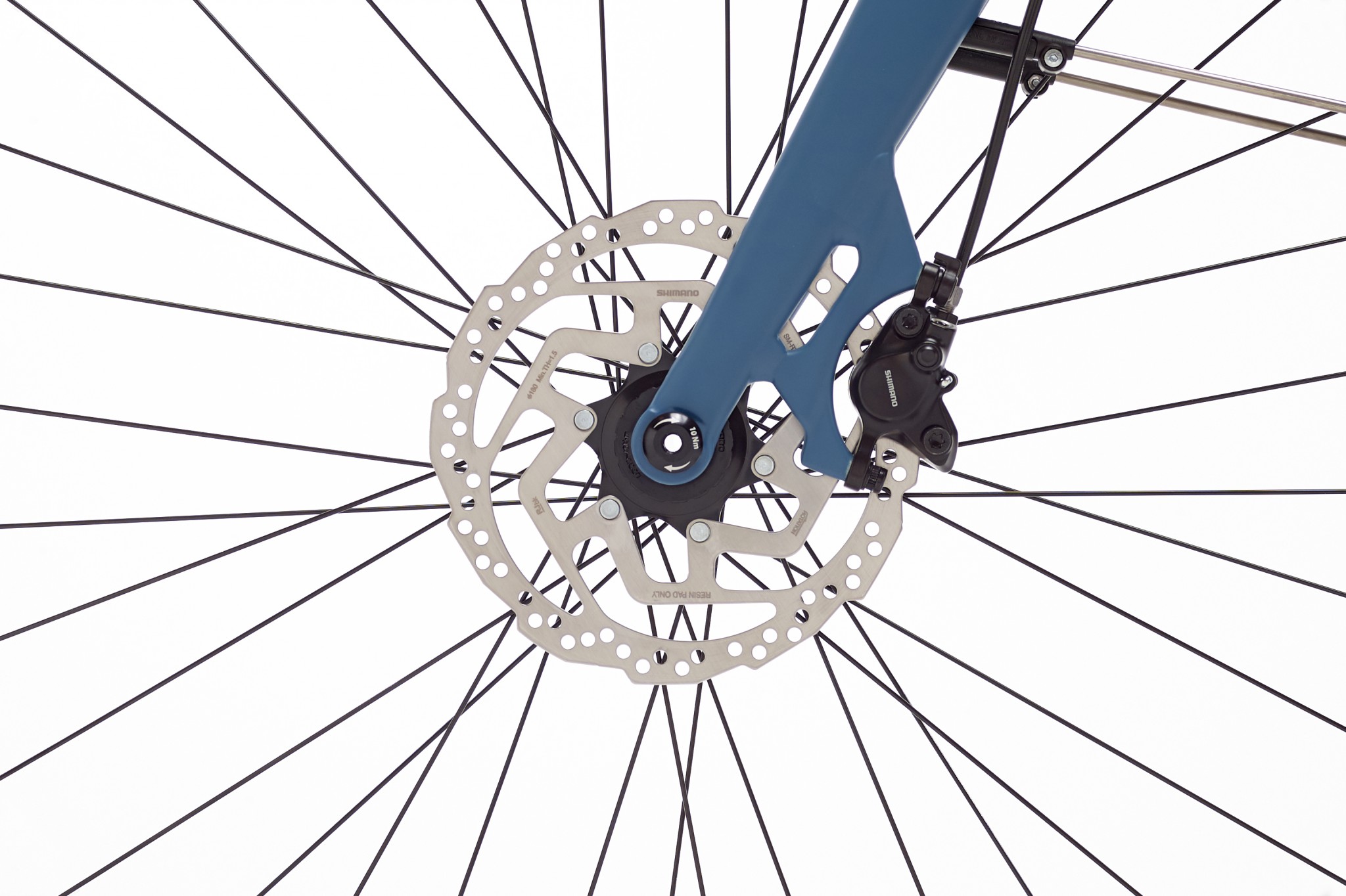

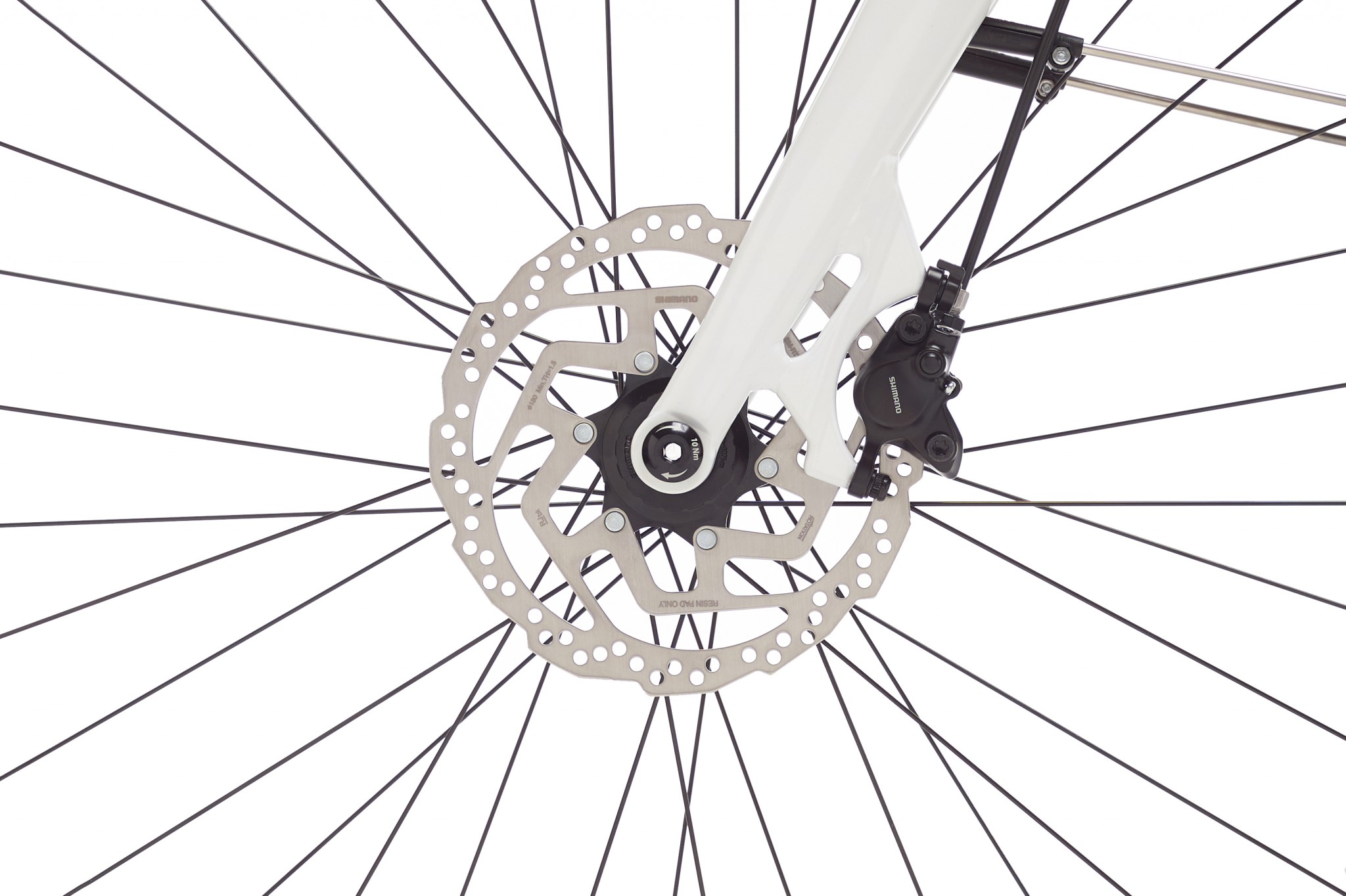

BRAKE ROTOR - Front
SHIMANO SM-RT 180mm

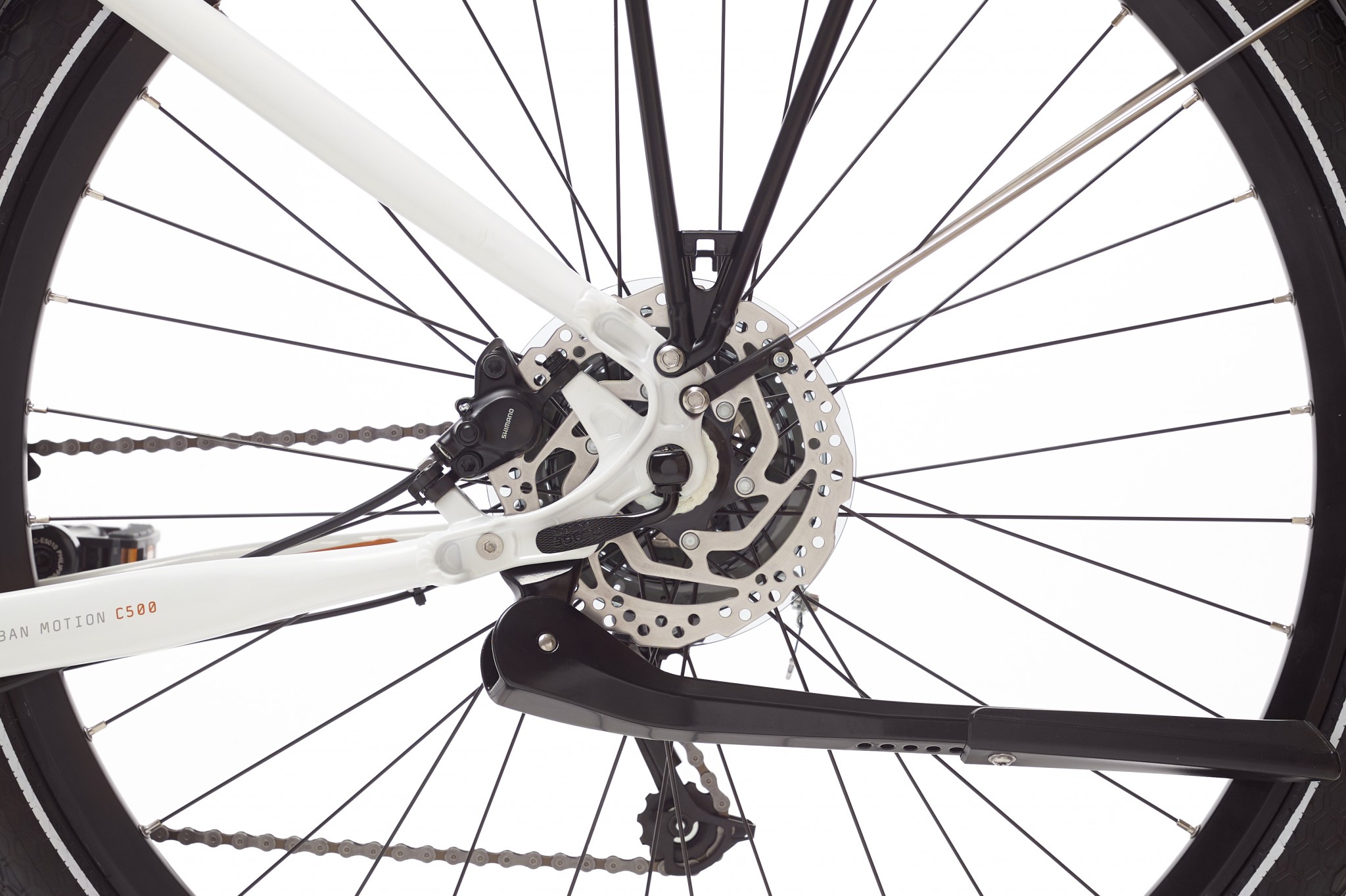

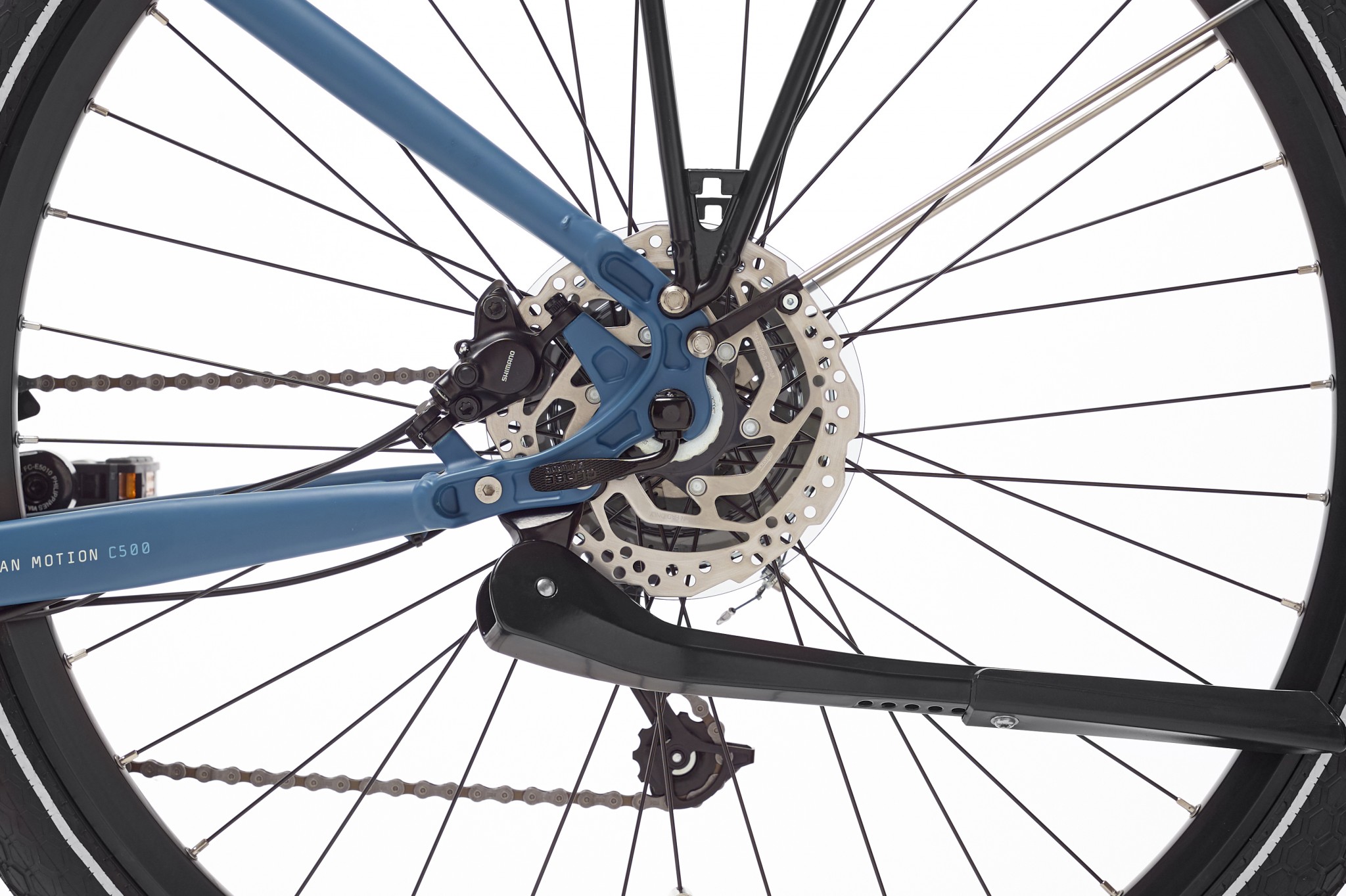

BRAKE ROTOR - Rear
SHIMANO SM-RT 160mm

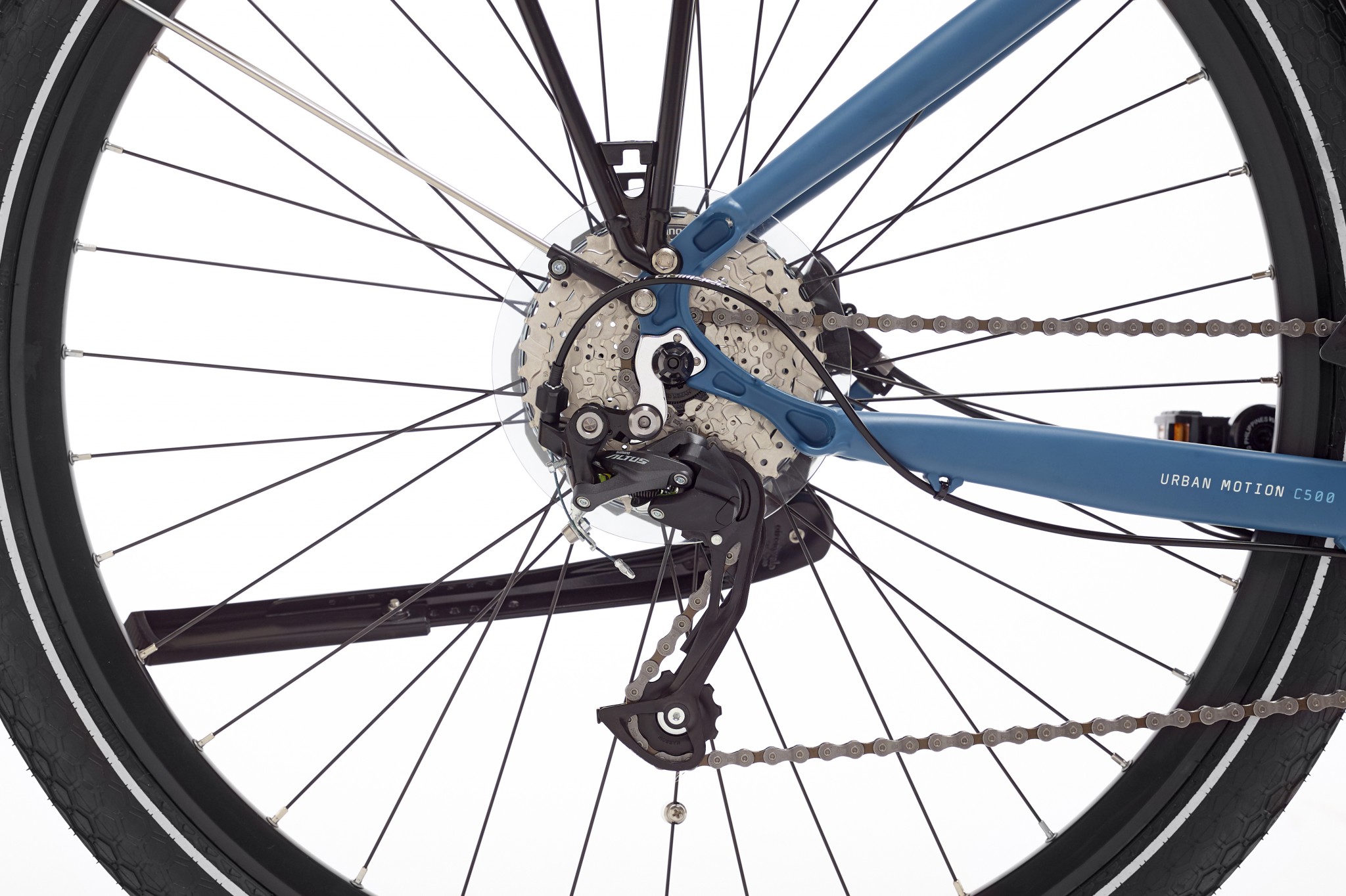

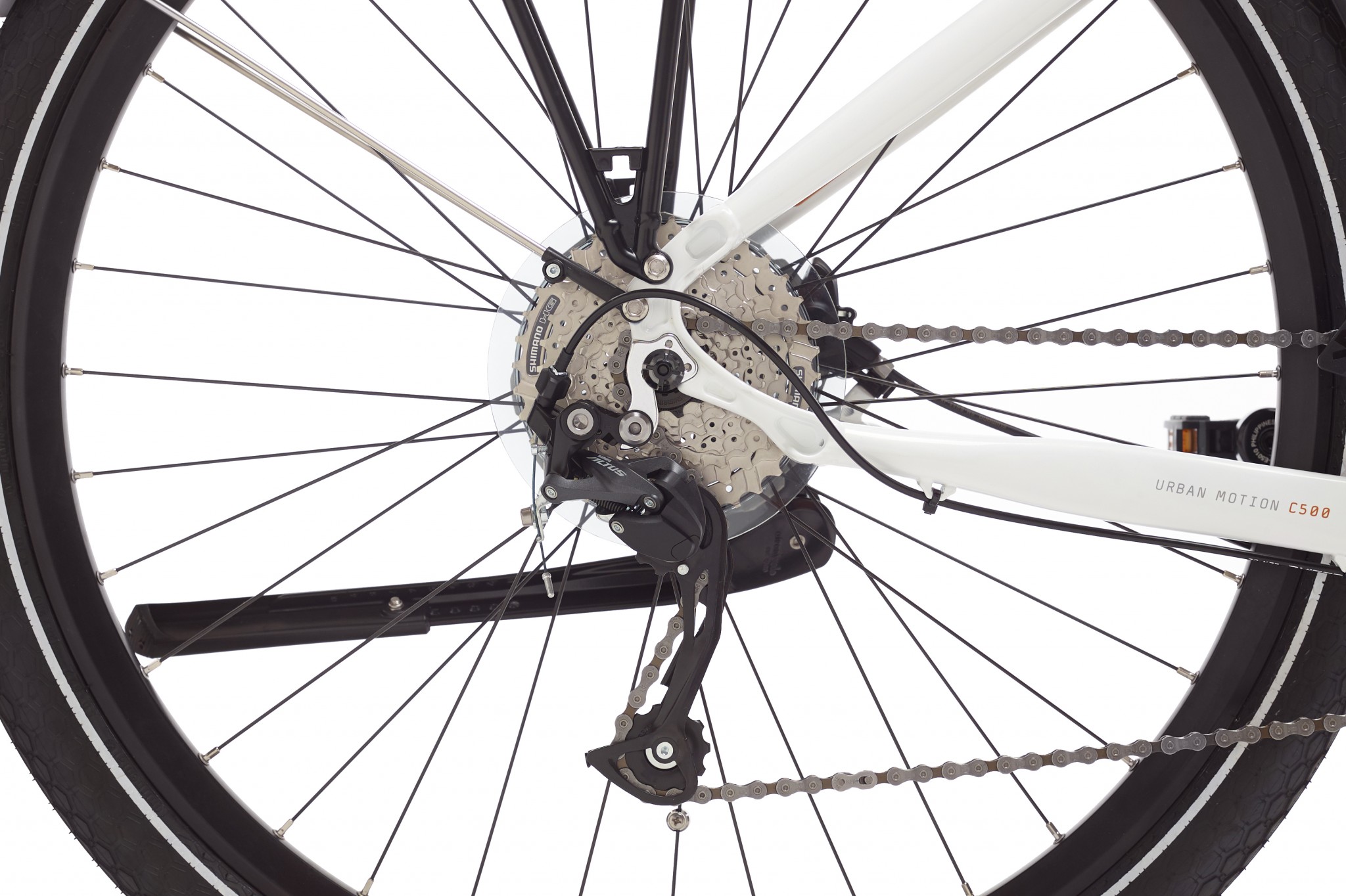

REAR DERRAILEUR
SHIMANO Altus 9S

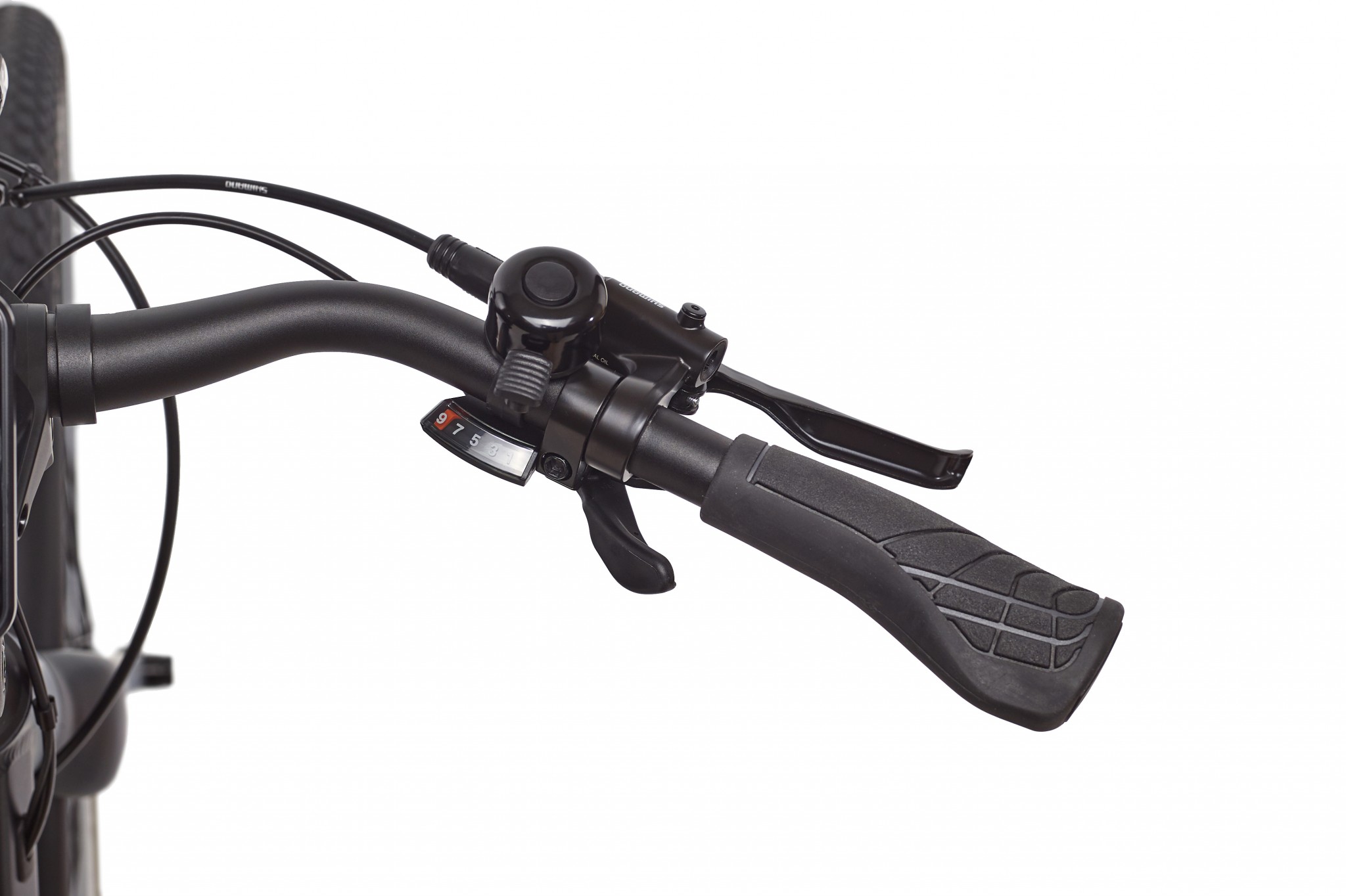

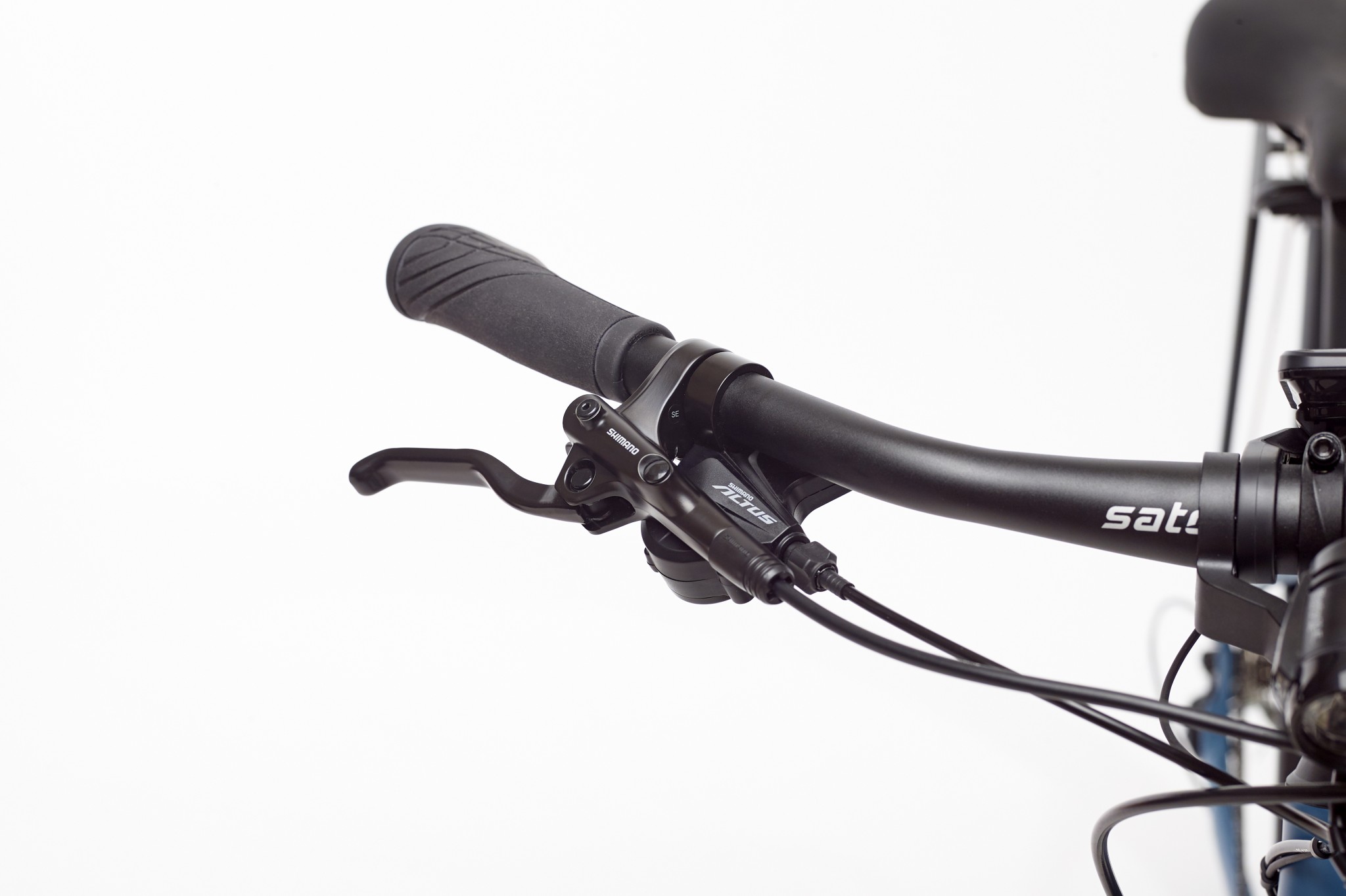

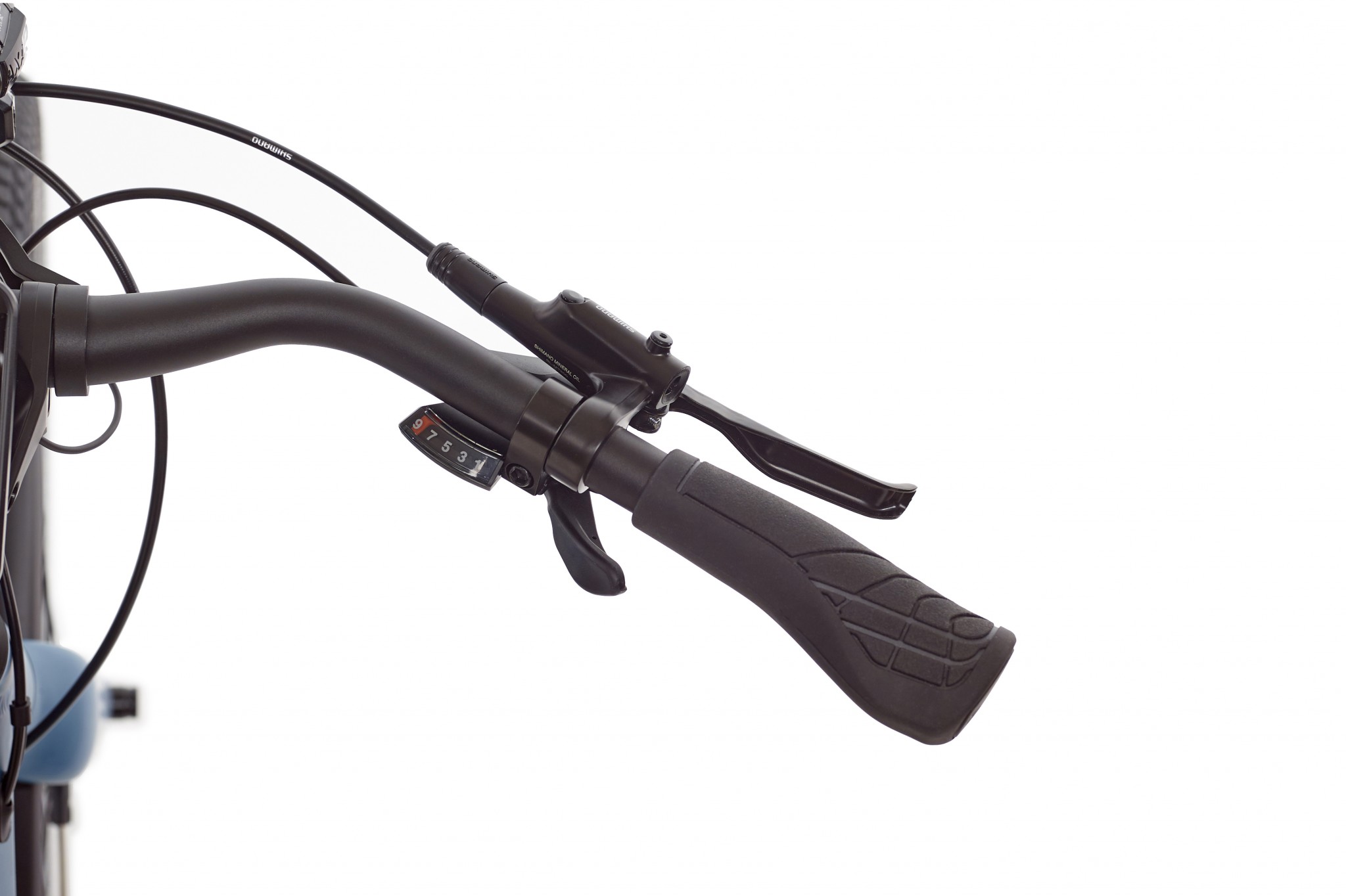

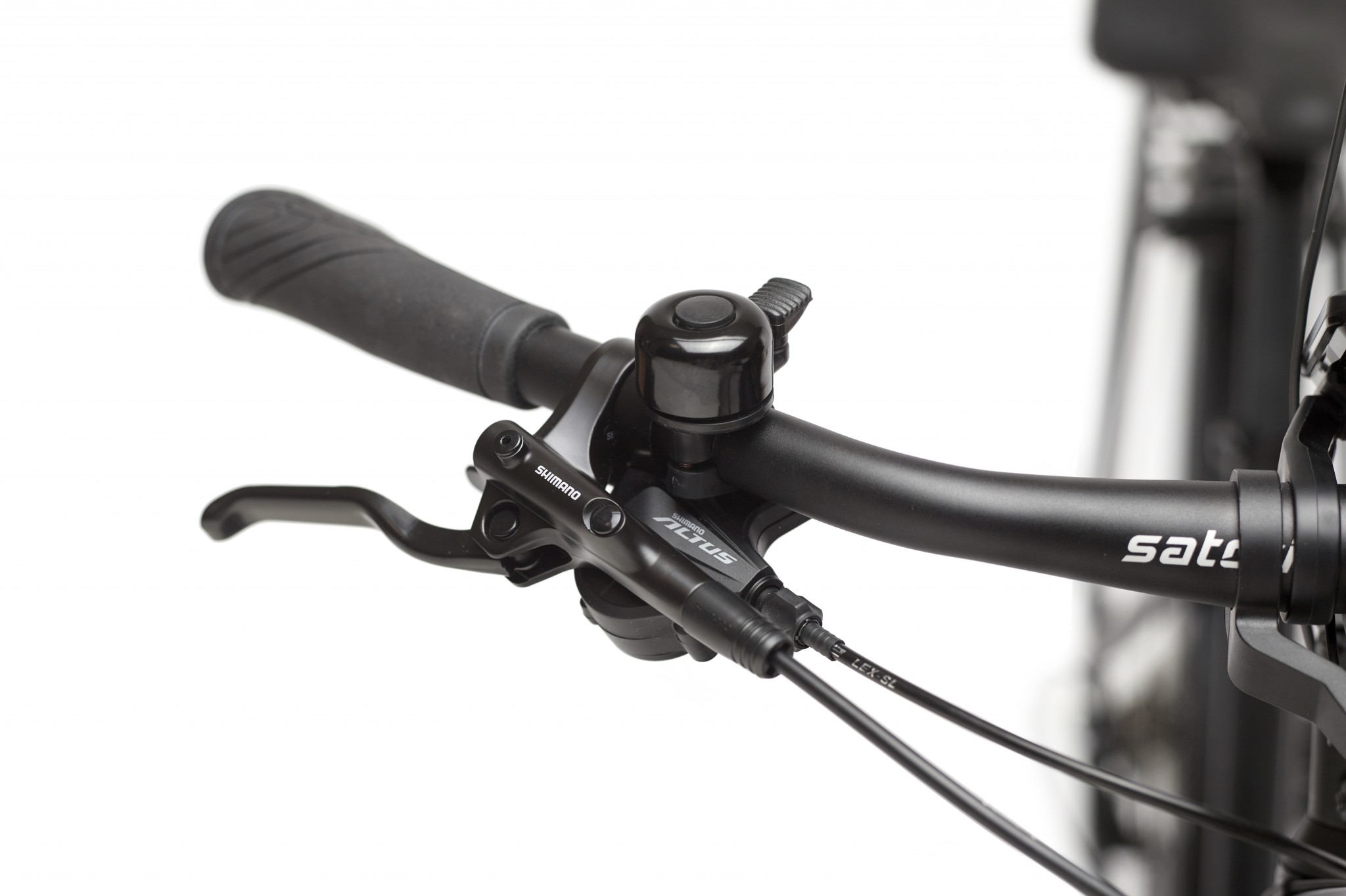

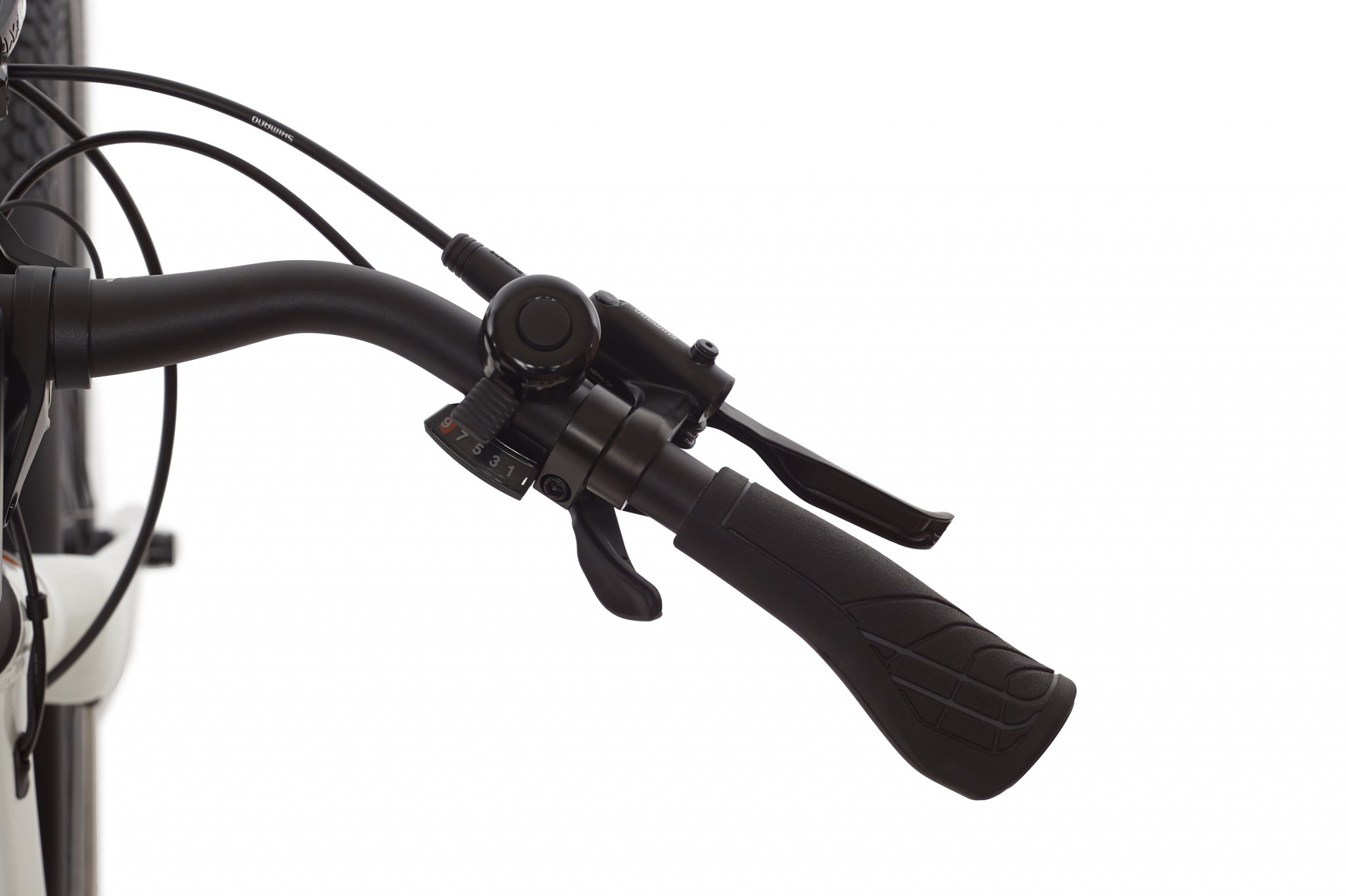

SHIFTERS
SHIMANO Altus 9S
CHAINRING
SHIMANO SN-CRE50 38T
CRANK
SHIMANO FC-E5010 - 175
CHAIN
SHIMANO CN-HG53
CHAINGUARD
Yes - SKS
SAFETY & ACESSORIES

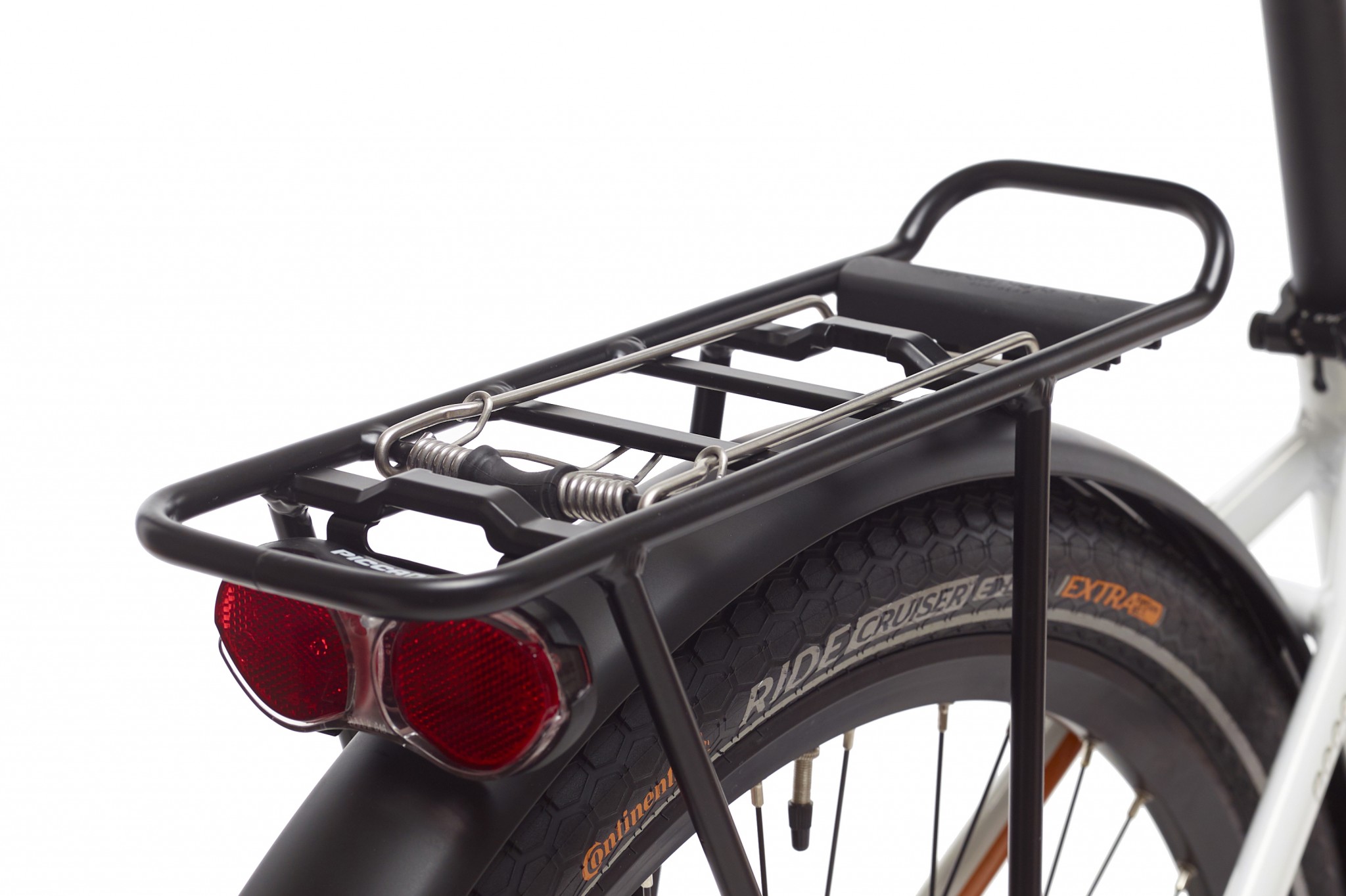

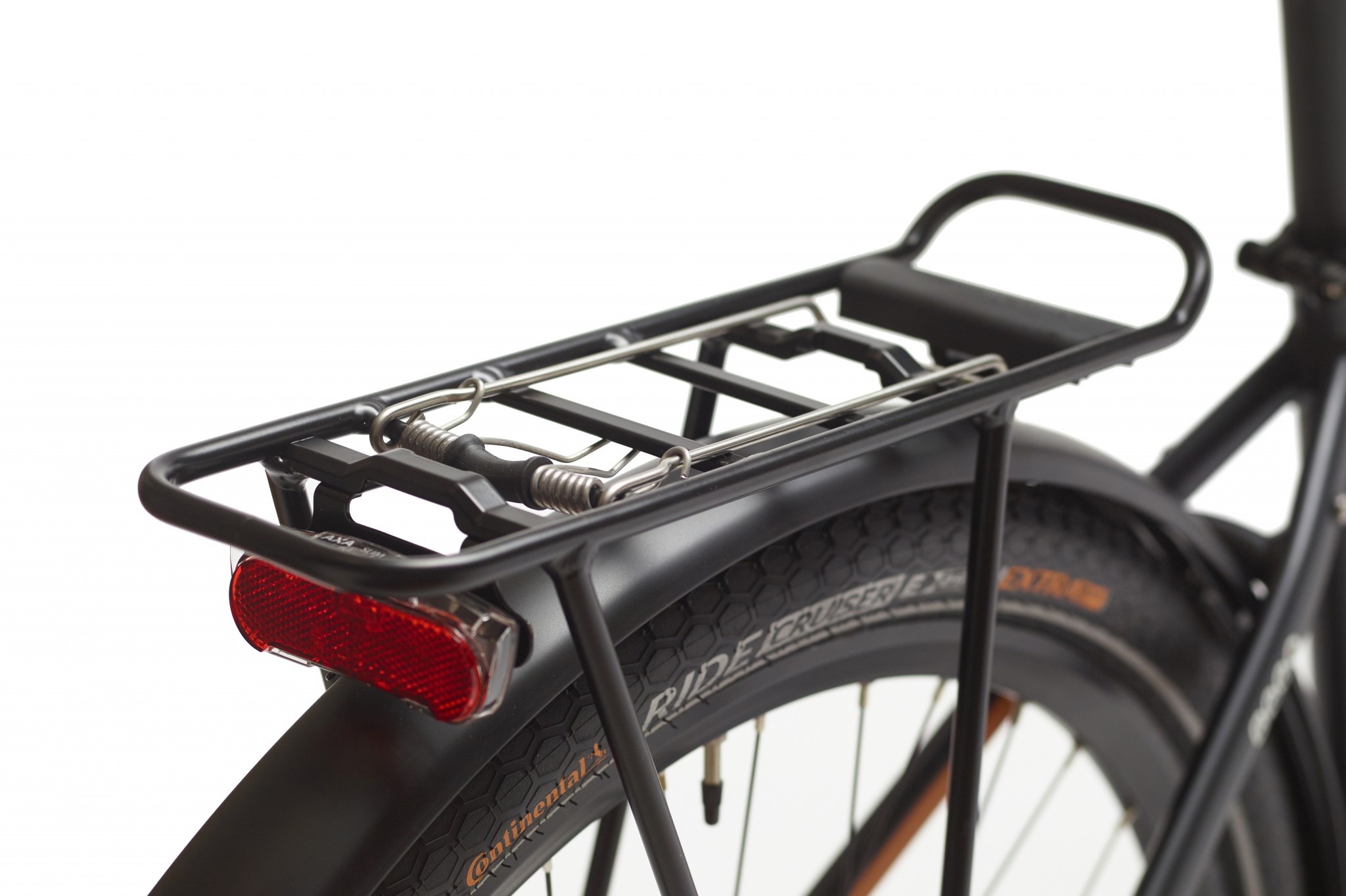

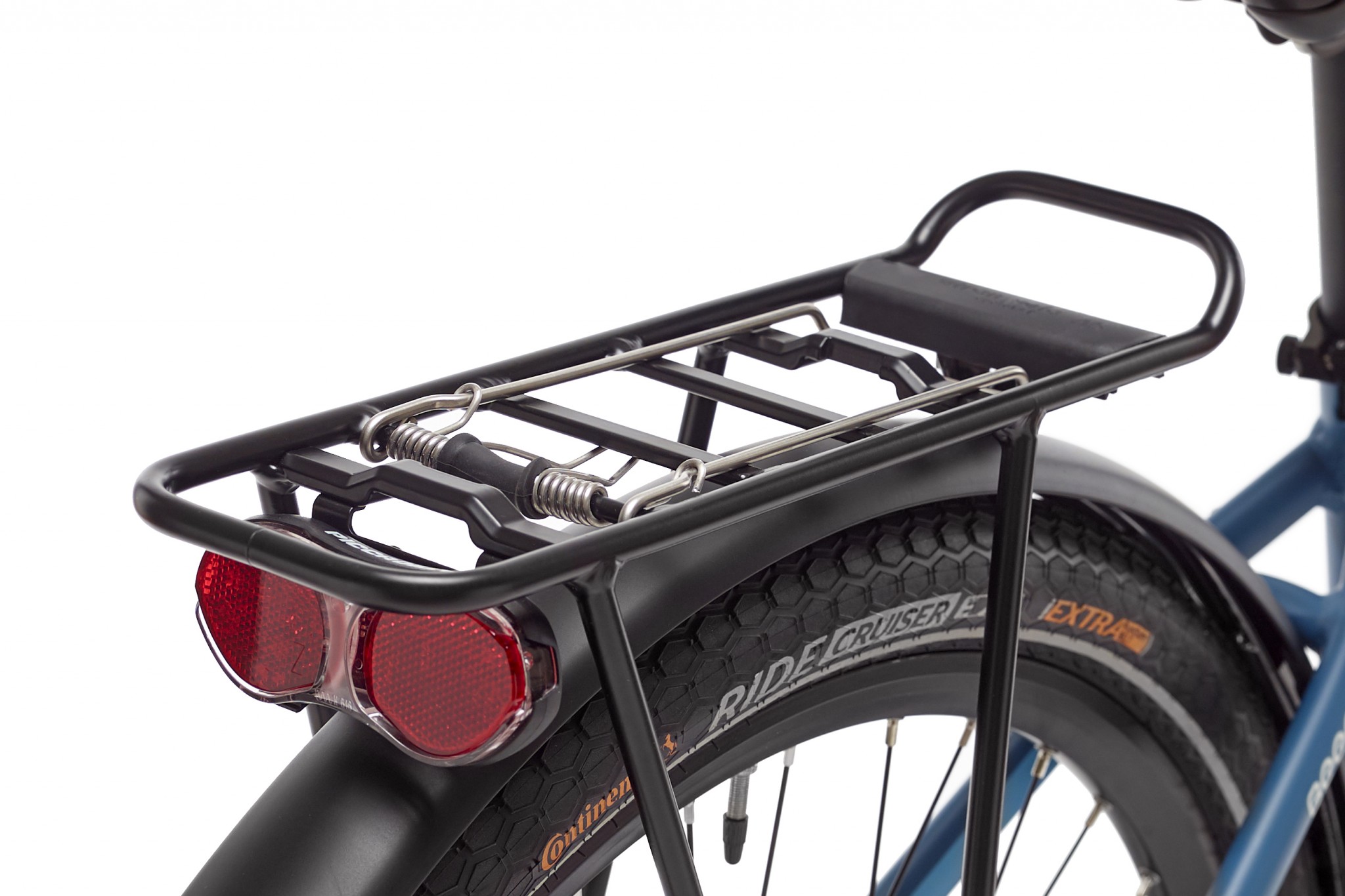

RACK
ATRANVELO Tour AVS (max.: 25Kg)

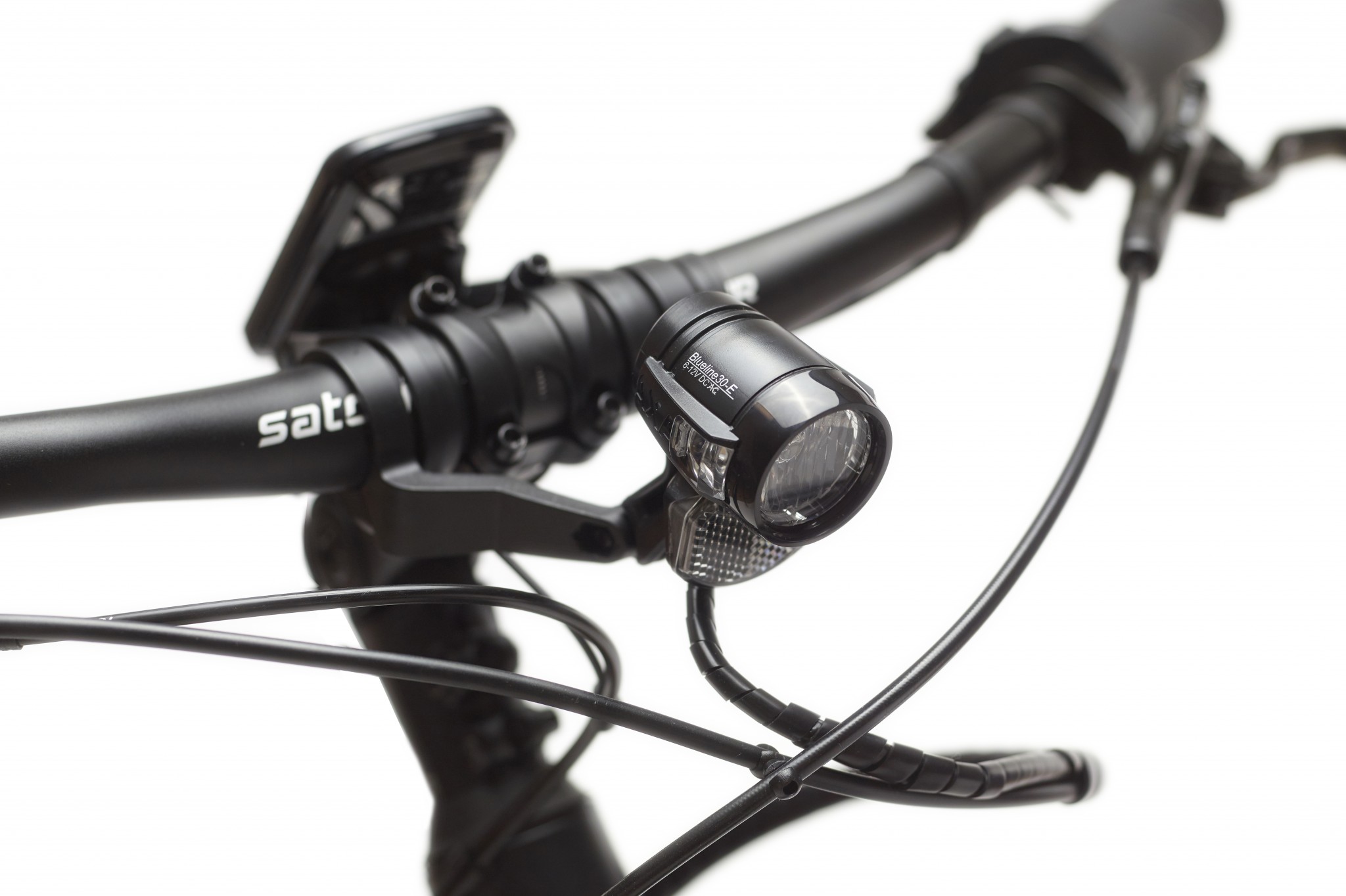

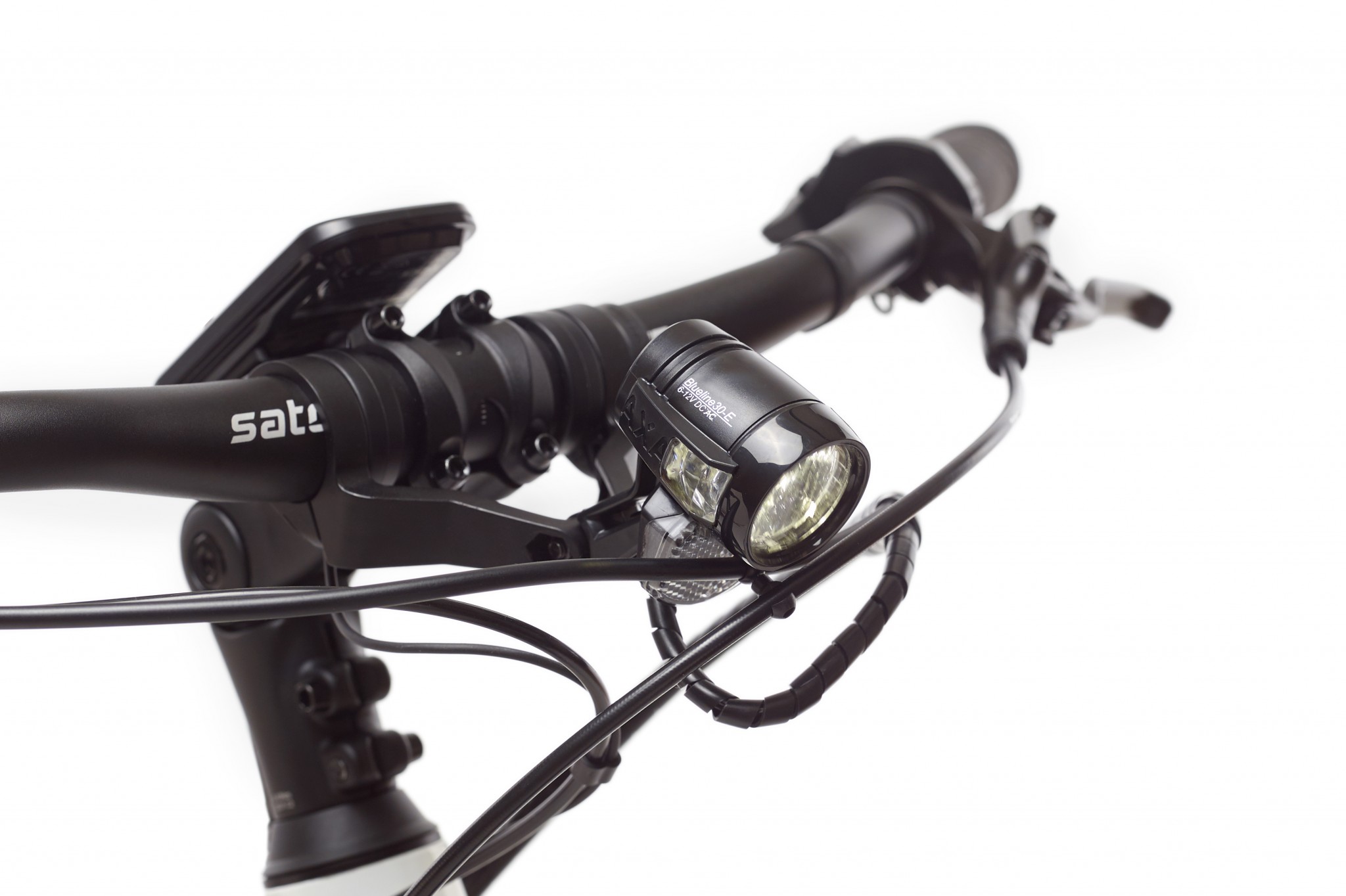

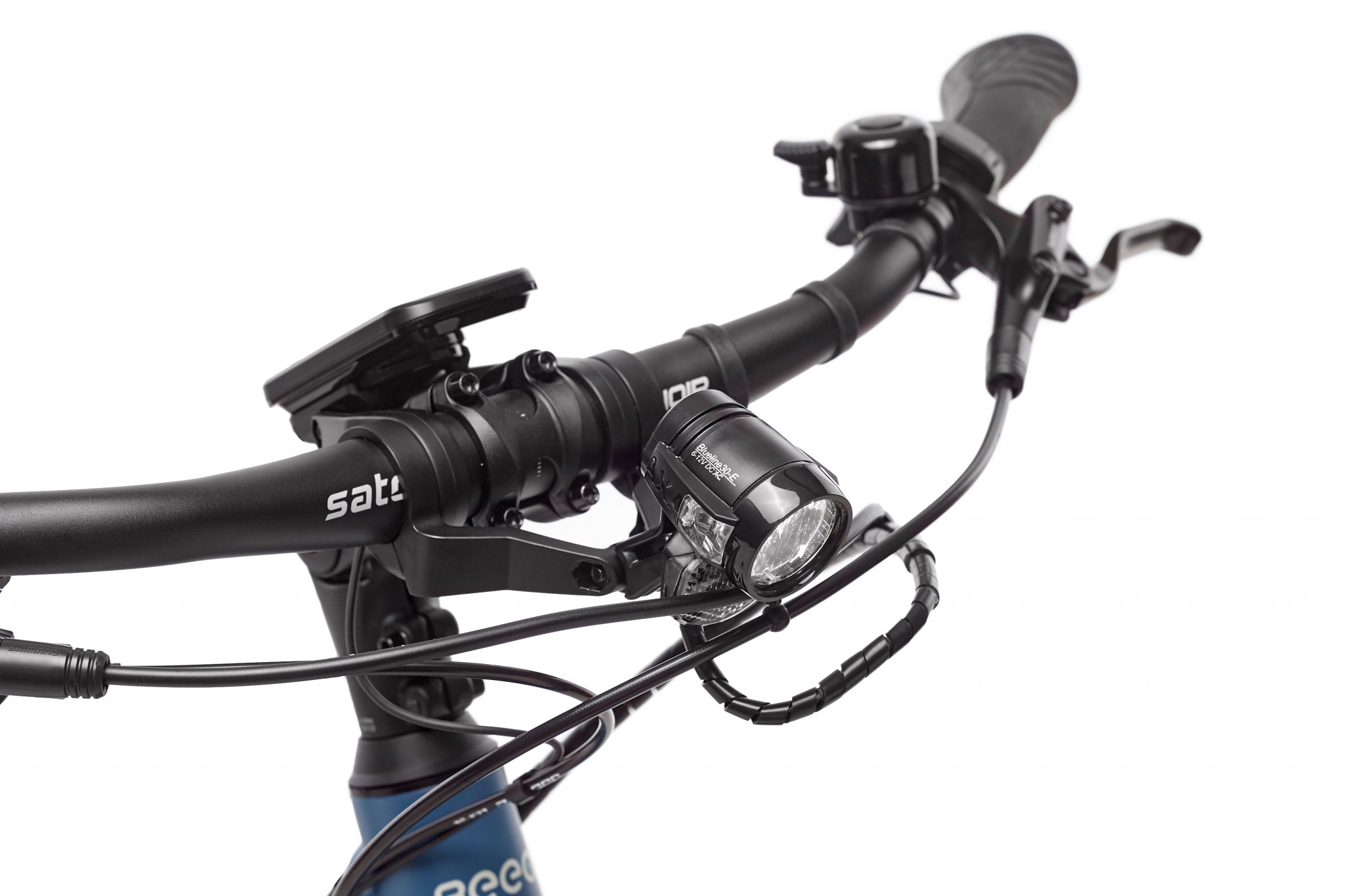

FRONT LIGHT
AXA Blueline 30 with reflector
REAR LIGHT
PICCADILLY with reflector
KICKSTAND
ATRANVELO Dux
MUDGUARD
SKS

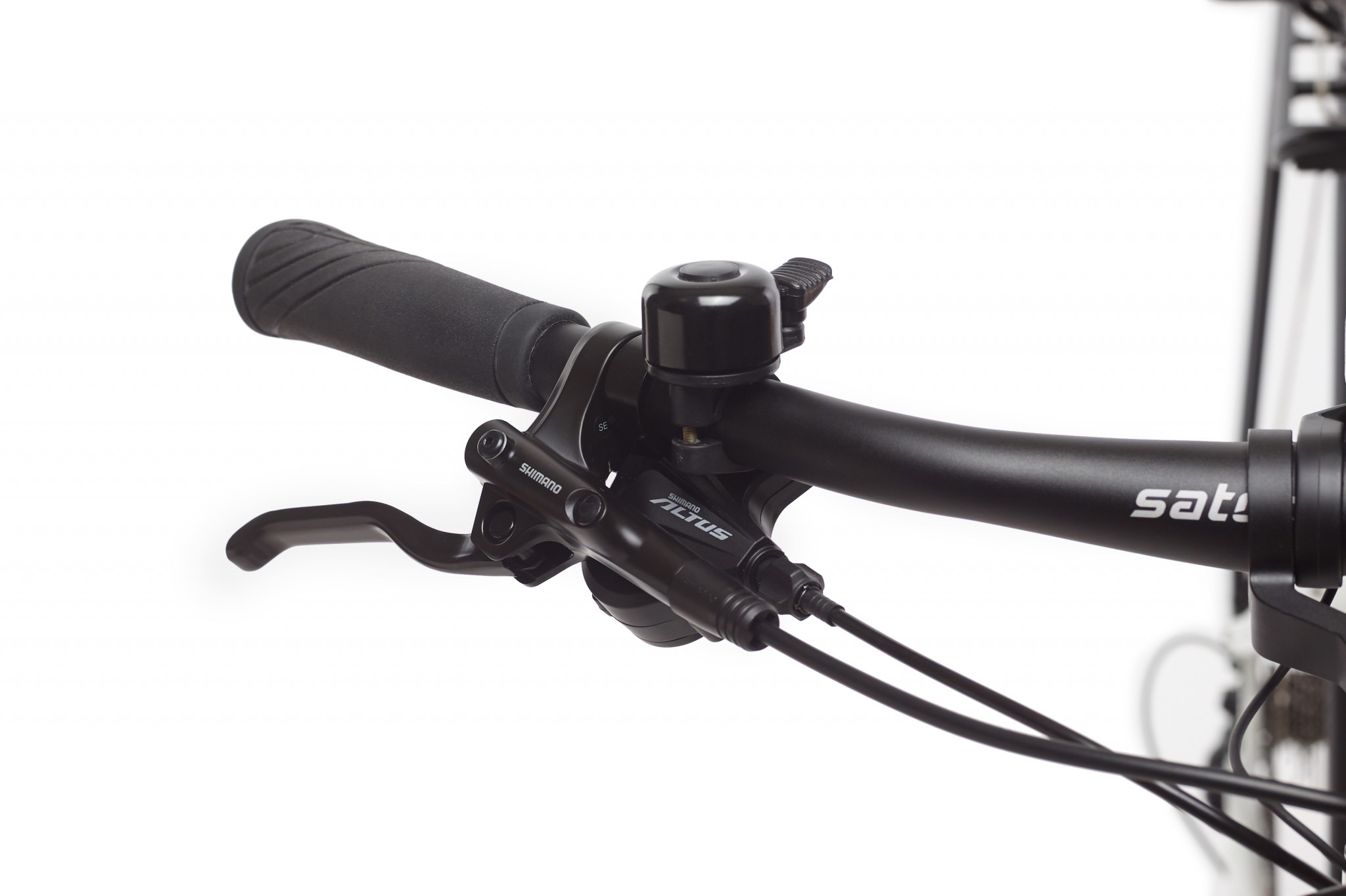

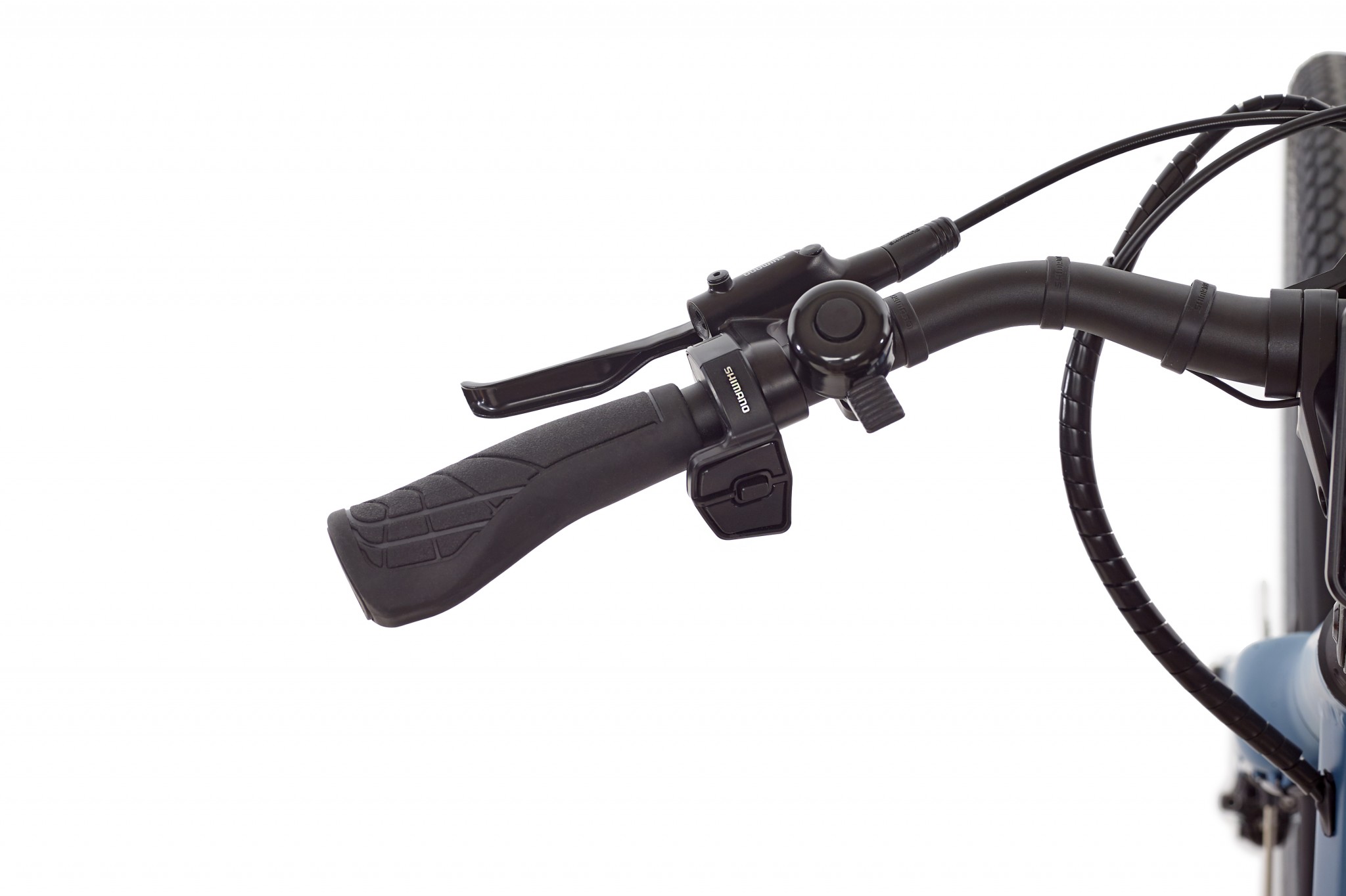

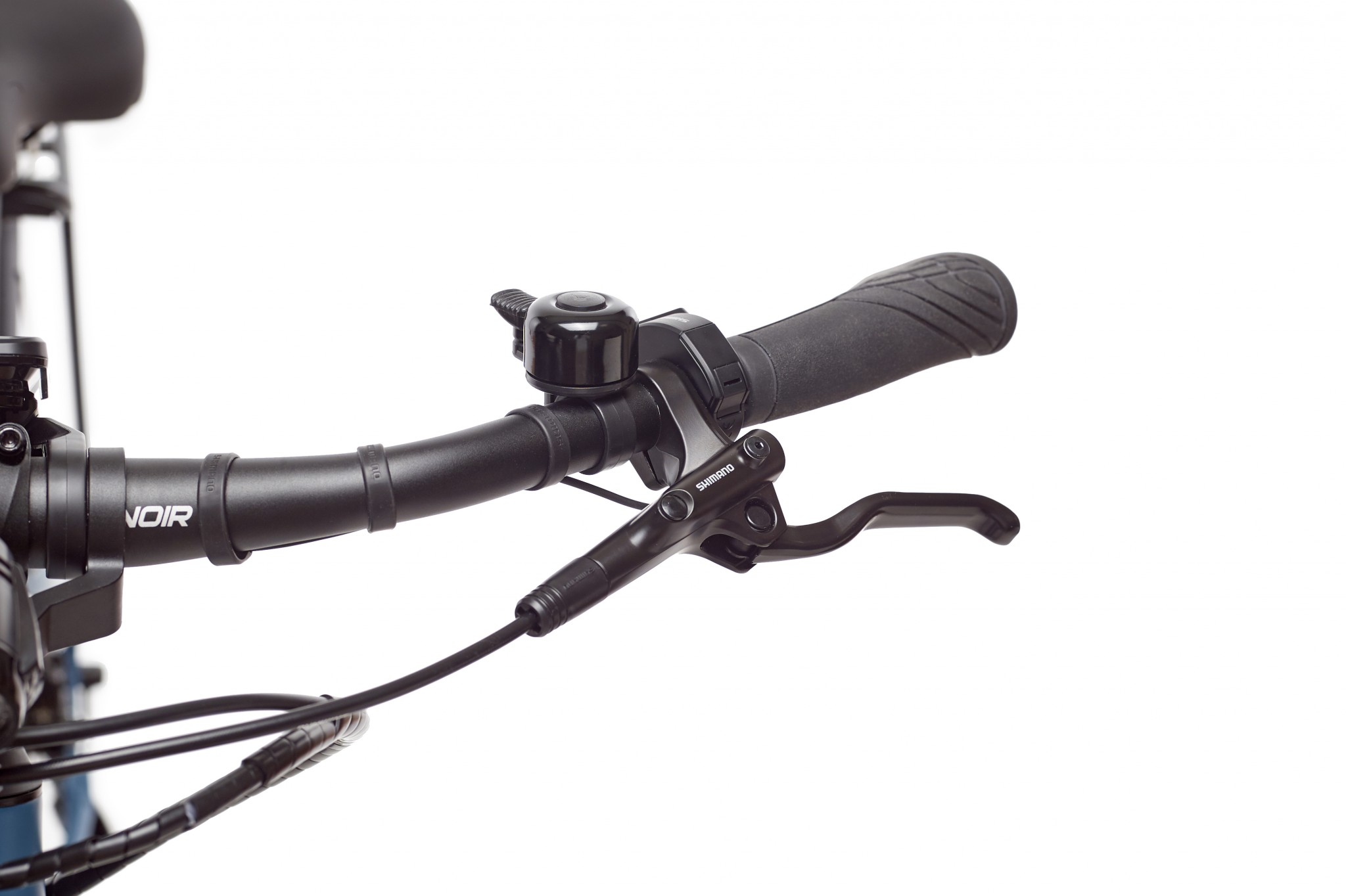

BELL
Yes
BOTTLE CAGE
Not included. Frame not prepared.

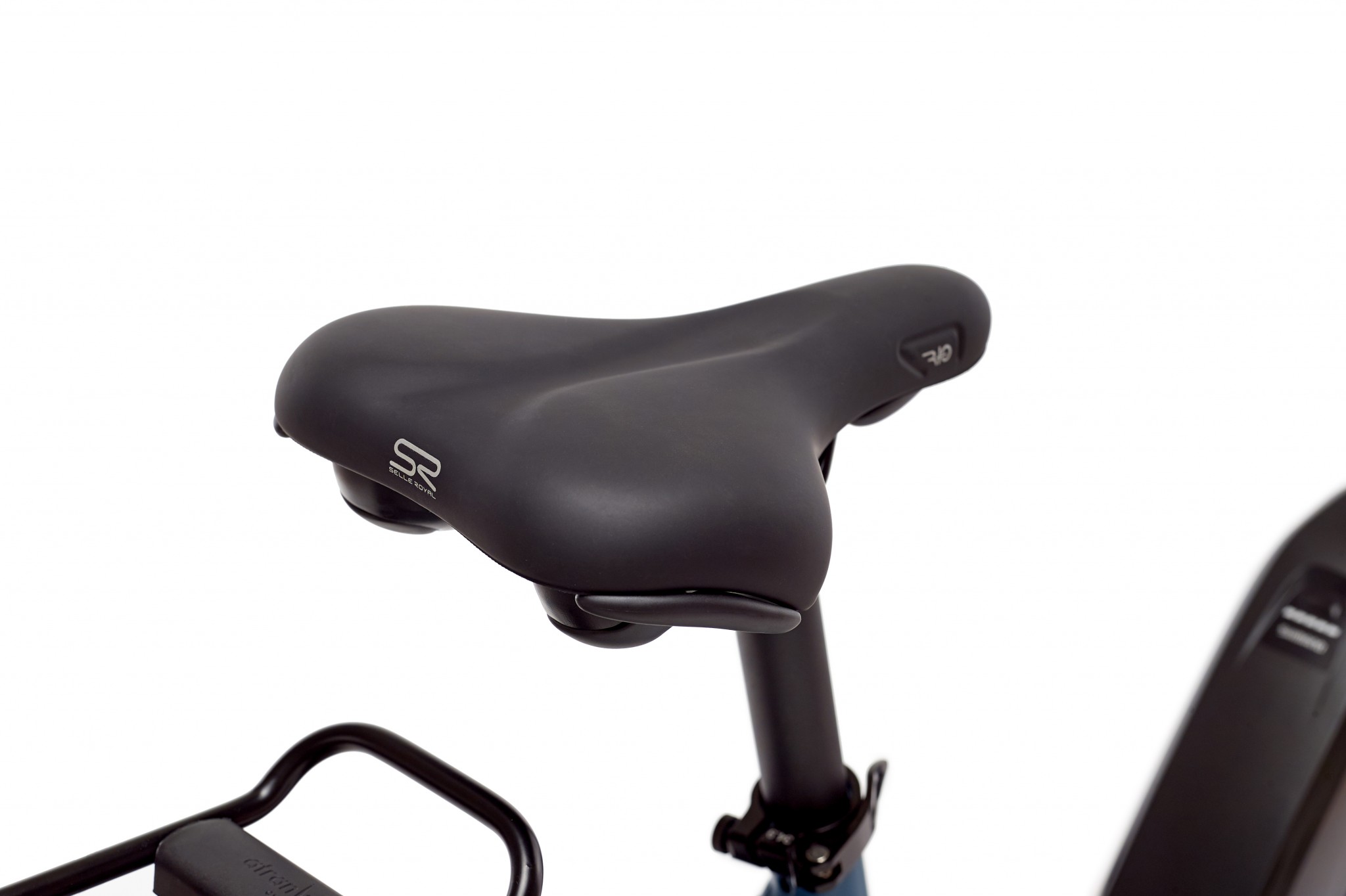

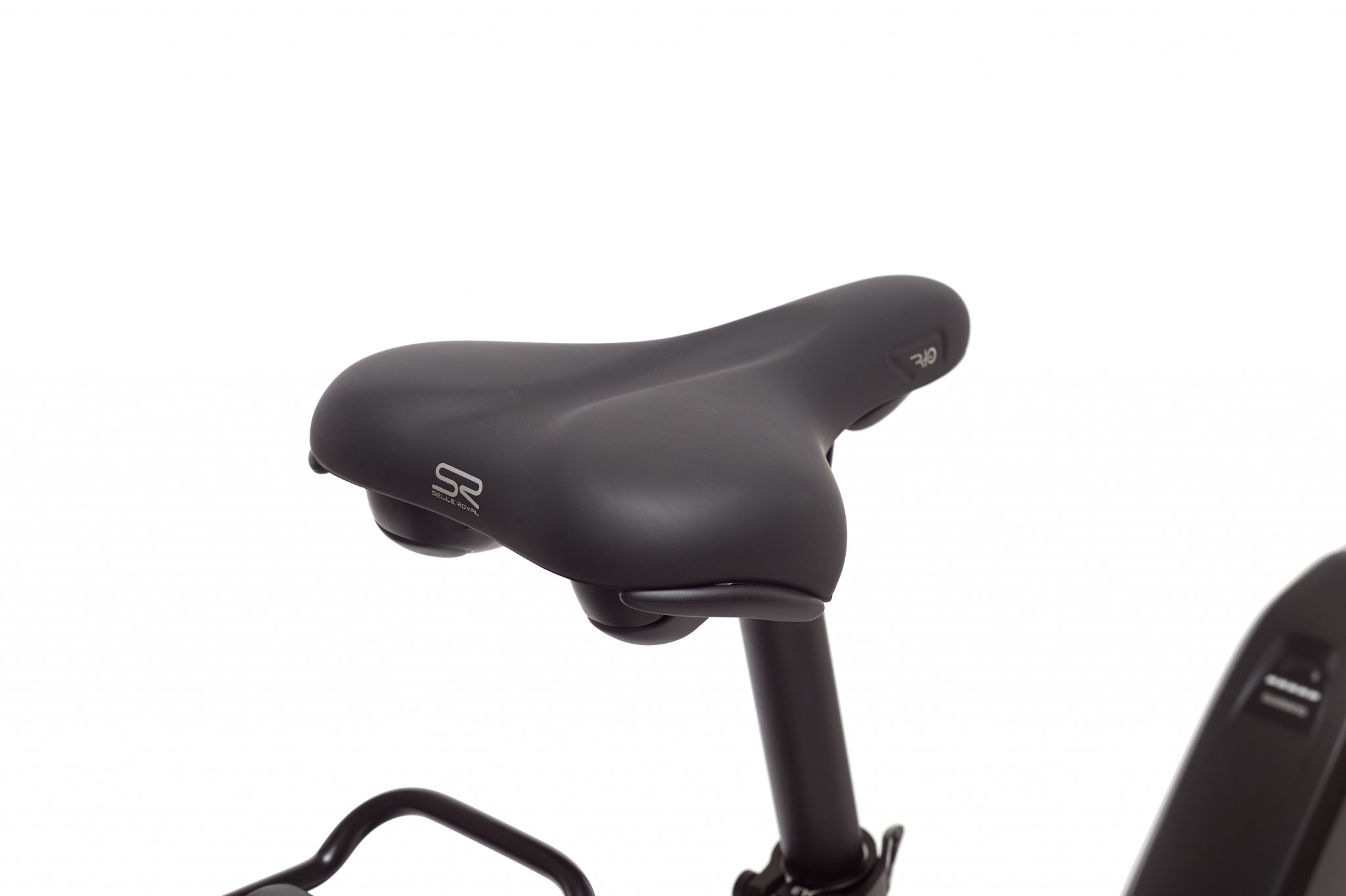

SADDLE
SELLE ROYAL Rio Gel
PEDALS
UNION SP-827 Flat with reflectors
FRAMELOCK
Not included. Sold separately.
